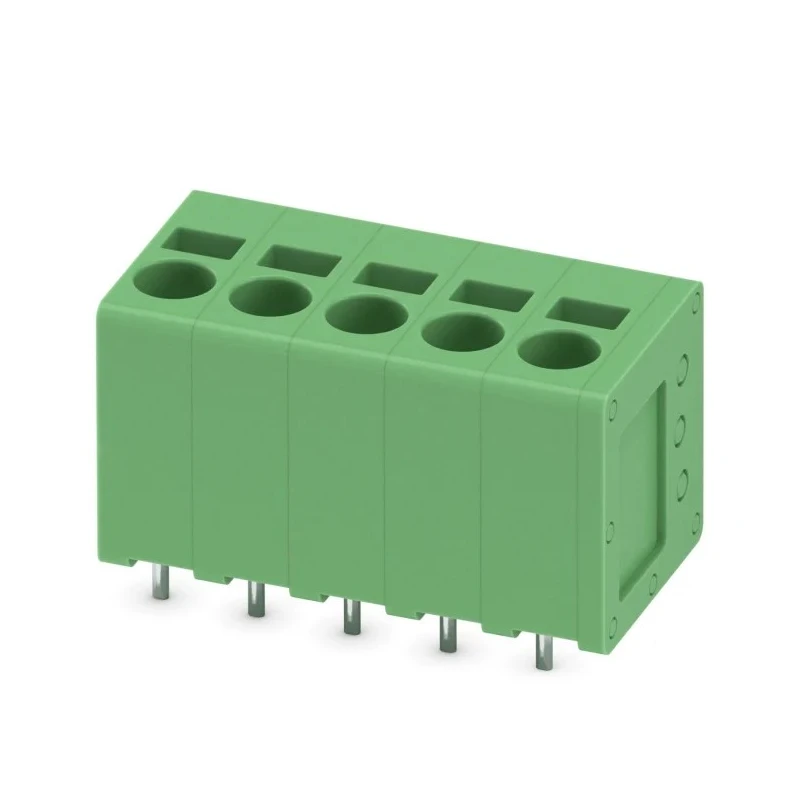

Phoenix Contact SPT 2.5/5-V-5.0 Series PCB Terminal Block, 5-Contact, 5 mm Pitch, 1 Row, 400V, 24A Current, Model 1991121

Phoenix Contact 1991121 PCB Terminal Block is a high-quality pluggable terminal block featuring 5 contacts with a 5 mm pitch arranged in a single row. It supports an operating voltage of 400V and a current rating of 24A, suitable for a broad range of electronics and industrial applications.

The terminal block uses screwless push-in spring cage technology, which provides secure and reliable wire connections while allowing easy wiring without the need for screws. It is compatible with wire sizes ranging from 0.2 mm² up to 4 mm² (AWG 24 to AWG 12), accommodating solid or stranded wires with ferrules. For non-ferruled wires, a screwdriver can open the terminal for wire insertion.

The housing is made from robust polyamide material, offering excellent mechanical and thermal stability. The green-colored housing provides easy visual identification on PCBs.

Physical dimensions are compact: 26.4 mm in length, 14.4 mm in width, and 13.5 mm in depth, enabling dense PCB population. The straight orientation and single-row layout facilitate straightforward PCB integration.

Manufactured in Germany, this terminal block complies with industrial quality standards for durable and safe connections. It is ideal for use in industrial automation, control panels, electronic devices, and other applications requiring reliable conductor termination.

This product is part of the SPT 2.5/5-V-5.0 series of PCB terminal blocks, offering designers flexibility with compatible system components. It does not carry specific standards or approvals but is a trusted solution from Phoenix Contact.

Features screwless push-in spring cage terminals for secure wire connection. Supports a wire size range from 0.2 mm² to 4 mm² or AWG 24 to AWG 12. Constructed with durable polyamide housing in green color for easy identification.

Compact dimensions of 26.4 mm length, 14.4 mm width, and 13.5 mm depth ensure space-efficient PCB mounting. Offers straight orientation for easy PCB integration with one row configuration. Designed for solid or stranded wires, suitable for industrial and electronic applications.

Manufactured in Germany, ensuring high quality and reliability. Part of the SPT 2.5/5-V-5.0 series for consistent compatibility with associated components. Explore more Phoenix Contact PCB Terminal Block components and accessories at EnvMart for your electronic and industrial connectivity needs.
