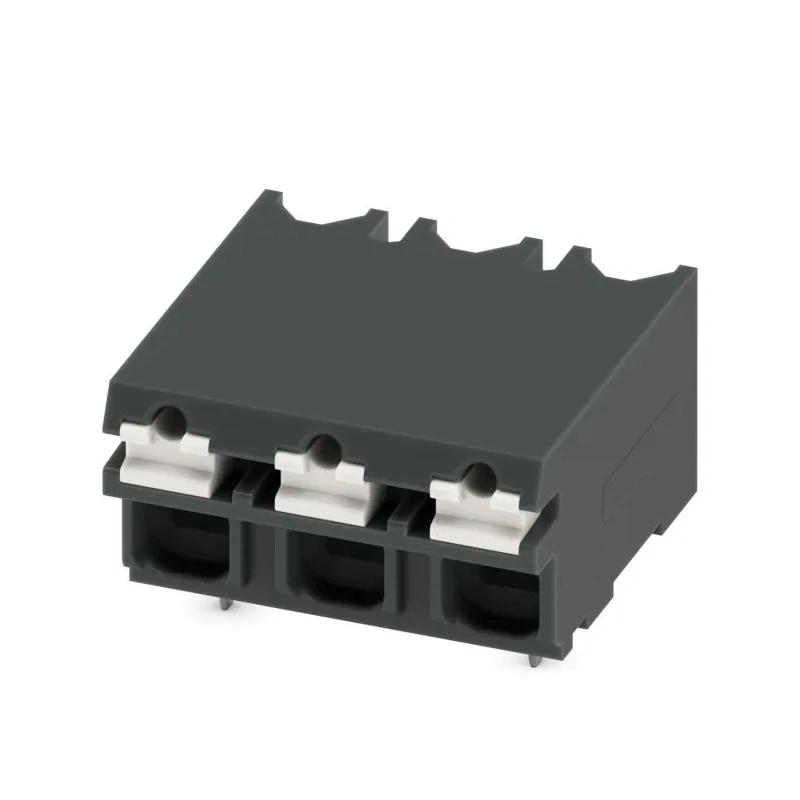

Phoenix Contact SPT-SMD 1.5/ 3-H-5.0 R32 Series PCB Terminal Block, 3-Contact, 5 mm Pitch, Surface Mount, Straight 1824750

Phoenix Contact 1824750 is a COMBICON SPT-SMD 1.5/ 3-H-5.0 R32 Series PCB Terminal Block designed for use in electronic components and power connectors applications. This PCB terminal block features a 3-contact configuration with a 5 mm pitch, suitable for surface mounting with a straight orientation. It supports voltages up to 500 V and current ratings of 13.5 A, making it robust for various industrial and commercial PCB installations.

The terminal block is constructed with a liquid crystal polymer housing material that provides excellent mechanical and thermal stability. It supports wire sizes from 0.2 mm² minimum up to 1.5 mm² maximum (24 AWG to 16 AWG), connecting wires with a push-in spring technology that combines spring cage and direct push-in connection methods. This feature ensures a fast, reliable, and tool-free connection and disconnection of solid or stranded conductors.

These terminal blocks come tape-on-reel packaged, complying with IEC 60283-3, which facilitates easy automated assembly especially suited for SMT reflow processes. Horizontal versions have anchoring pins for alignment on PCBs, while vertical versions include twin soldering pins for enhanced mechanical stability during assembly.

Typical applications include industrial control systems, manufacturing equipment, testing and measurement, and electrical distribution boards needing reliable PCB connectivity. The terminal blocks operate at 500 V rated voltage and handle up to 13.5 A current, suitable for power connector solutions in electronics and electrical systems.

The product is manufactured in Germany, adhering to high quality and safety standards, and is presented in a black color. Installed dimensions include a width of 7.7 mm, depth of 13.6 mm, and length of 14 mm, enabling compact integration within PCB layouts.

Supports current ratings of up to 13.5 A ensuring reliable electrical performance. Features a 5 mm pitch facilitating precise PCB layouts. Utilizes push-in spring connection providing tool-free, fast, and secure wire termination.

Constructed with liquid crystal polymer housing for enhanced durability. Designed for surface mounting with a straight orientation on the PCB. Suitable for conductors ranging from 0.2 mm² to 1.5 mm² or 24 to 16 AWG wire sizes.

Contains black colored housing aiding in clear identification and safety. Comes in tape-on-reel packaging, enabling automated assembly processes. Manufactured in Germany ensuring high quality standards. Browse the Electronics Components catalog at EnvMart for more PCB Terminal Blocks, connectors, and power connector solutions from leading brands like Phoenix Contact.
