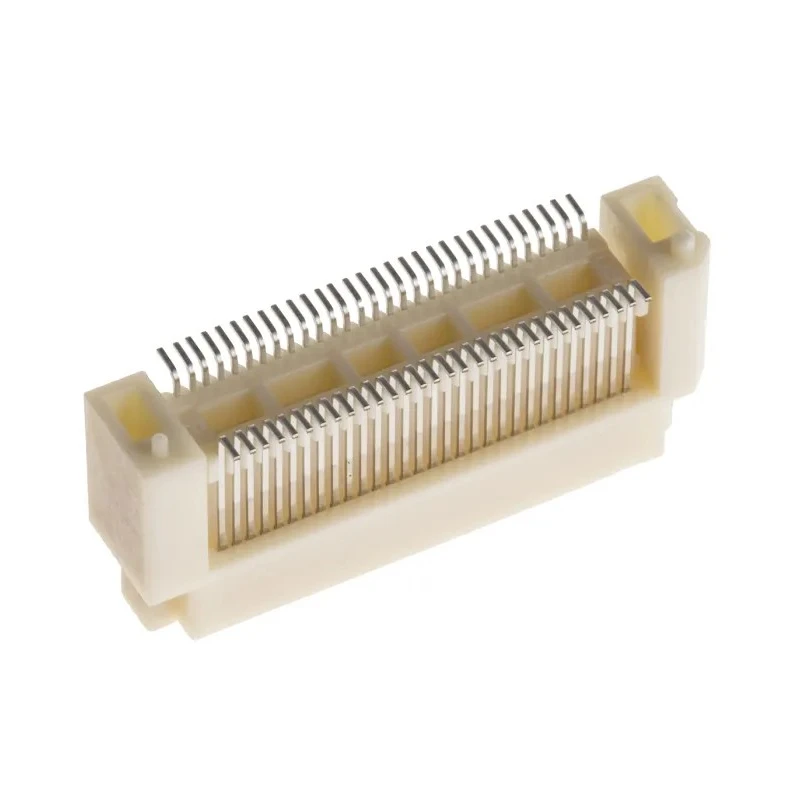

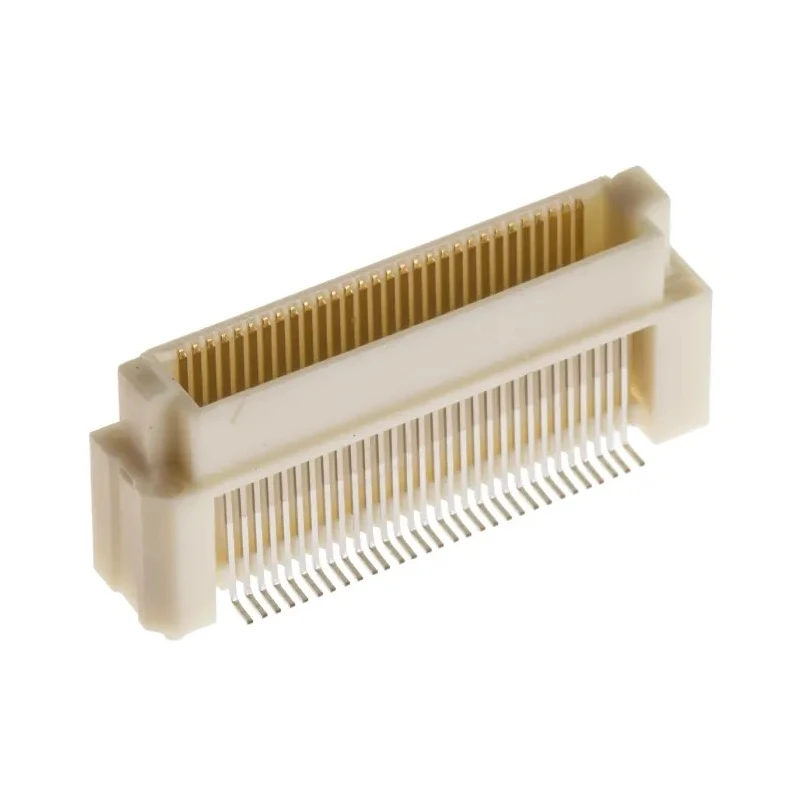

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 60 Contacts, 0.6 mm Pitch, 2 Row, Shrouded

Hirose FX8C-60P-SV6(91) FunctionMAX Series Straight Surface PCB Header is a high-performance board-to-board connector designed for demanding industrial applications requiring compact, reliable interconnections. This connector features 60 gold-plated male contacts arranged in 2 rows with a 0.6 mm pitch and a shrouded design to enhance protection and connection integrity.

The FunctionMAX FX8C connectors deliver high-speed signal transmission capabilities up to 3.125 Gbit/s, suitable for servers, broadcast equipment, industrial machines, medical devices, and POS terminals. The built-in mating guide ribs provide a self-alignment tolerance of ±0.6 mm, facilitating ease of assembly and allowing flexibility in PCB design.

The connector's contacts utilize an optimized spring deflection design for enhanced reliability and electrical continuity. The surface mount termination type ensures coplanarity tolerance less than 0.1 mm for effective solder joint quality. The housing is constructed from durable polyphenylene sulphide material, able to operate within a temperature range of -55°C to 85°C. It supports a maximum voltage of 100V and a current rating of 400mA, ensuring safe and efficient operation in diverse electronic applications.

This PCB header includes bosses for precise PCB alignment and features a 2 mm wiping distance for consistent electrical contact. Note that the FX8C series is incompatible with FX8 series connectors, necessitating careful selection for system compatibility.

Supports high-speed transmission up to 3.125 Gbit/s ensuring excellent signal integrity. Built-in guide ribs enable ±0.6 mm misalignment tolerance for easy mating. Shrouded, gold-plated phosphor bronze contacts enhance connectivity and durability.

Durable polyphenylene sulphide housing with wide operating temperature range. Surface mount type with precise coplanarity for reliable solder joints. Compact 0.6 mm pitch and 2-row configuration for space-saving PCB layouts.

Optimized spring deflection contact design for superior reliability. Bases for accurate PCB alignment help prevent misinsertion. Maximum ratings: 100V voltage and 400mA current.

This Hirose FunctionMAX PCB header is suitable for use in industrial, medical, broadcast, and computing equipment, providing robust and high-speed board-to-board interconnect solutions. Browse the Electronics Components and PCB Headers categories at EnvMart for more high-quality industrial connectors and electronic components.
