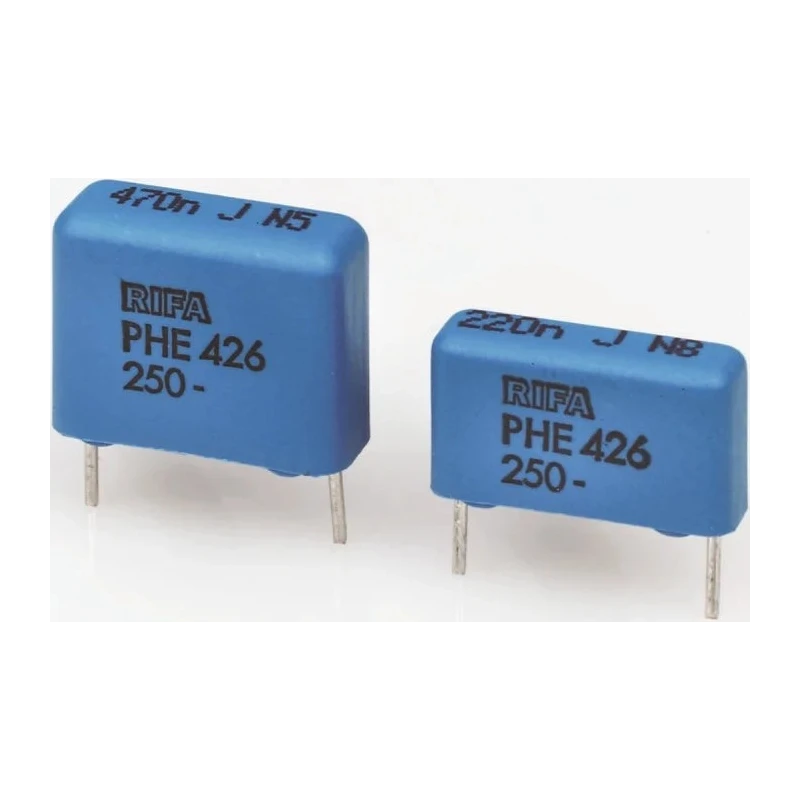

KEMET Film Capacitor, Radial Through Hole, 22 nF ±5% Capacitance, 400 V DC, 160 V AC, 105°C Max, IEC 60384-16 PHE426
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | KEMET |
| Height | 9mm |
| Length | 13mm |
| Model | PHE426 |
| Packaging | Box |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | PHE426 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.05% |
| Lead Length | 5mm |
| Standards/Approvals | IEC 60384-16 |
| Pin Count | 2 |
| Rated AC Voltage | 160V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
Key Features
- Offers stable pulse operation suitable for SMPS and electrical ballast applications.
- Encapsulated in self-extinguishing UL94V-0 compliant material for enhanced safety.
- Rated for an operating temperature range from -55°C to 105°C.
- Features IEC 60384-16 compliance ensuring international standard quality.
- Compact dimensions of 13 mm length, 9 mm height, and 4 mm width with a 10 mm lead pitch.
- Lead type is radial with a 0.6 mm diameter and 5 mm lead length.
- Low dissipation factor of 0.05% for efficient electrical performance.
- Manufactured in Indonesia ensuring quality production standards.
Product Description
KEMET PHE426 Film Capacitor is a high-quality passive electronic component designed for pulse and snubber circuit applications in SMPS, TVs, monitors, electrical ballasts, and other high-frequency equipment.
This capacitor features a capacitance of 22 nF with a ±5% tolerance, providing precise and reliable performance. It is rated for a maximum of 400 V DC and 160 V AC voltage, supporting demanding electrical environments.
The radial through-hole mount type and compact form factor (13 mm length, 9 mm height, and 4 mm width) with 10 mm lead pitch enable easy integration into printed circuit boards. The leads have a diameter of 0.6 mm and length of 5 mm, suitable for secure soldering.
It operates effectively over a broad temperature range from -55°C to 105°C, making it suitable for harsh industrial and commercial uses. The component complies with IEC 60384-16, showcasing adherence to international standards for film capacitors.
The capacitor's encapsulation with UL94V-0 self-extinguishing materials improves safety by reducing fire hazards. Its low dissipation factor of 0.05% ensures energy-efficient operation and minimal signal loss.
Manufactured in Indonesia, this component upholds reliable quality expectations. It is supplied in box packaging for convenience. Offers stable pulse operation suitable for SMPS and electrical ballast applications. Encapsulated in self-extinguishing UL94V-0 compliant material for enhanced safety.
Rated for an operating temperature range from -55°C to 105°C. Features IEC 60384-16 compliance ensuring international standard quality. Compact dimensions of 13 mm length, 9 mm height, and 4 mm width with a 10 mm lead pitch.
Lead type is radial with a 0.6 mm diameter and 5 mm lead length. Low dissipation factor of 0.05% for efficient electrical performance. Manufactured in Indonesia ensuring quality production standards.
This film capacitor is ideal for industrial electronics, laboratory equipment, HVAC systems, manufacturing machinery, and power electronics requiring durable and precise capacitive components.
Explore the Electronics Components and Film Capacitor categories on EnvMart for an extensive selection of high-quality capacitors and related electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 22 nF with a tolerance of ±5%.
It is rated for a maximum of 400 V DC and 160 V AC voltage.
This capacitor operates effectively over a temperature range from -55°C to 105°C.
The dimensions are 13 mm in length, 9 mm in height, and 4 mm in width, with a lead pitch of 10 mm.
It uses a radial through-hole mount type for easy integration into printed circuit boards.
The leads have a diameter of 0.6 mm and a length of 5 mm, suitable for secure soldering.
This capacitor complies with IEC 60384-16, ensuring it meets international quality standards.
The dissipation factor is 0.05%, contributing to efficient electrical performance.
It is manufactured in Indonesia, ensuring quality production standards.
It is suitable for pulse and snubber circuit applications in SMPS, TVs, monitors, and electrical ballasts.
It is supplied in box packaging for convenience.
This model has a pin count of 2.
