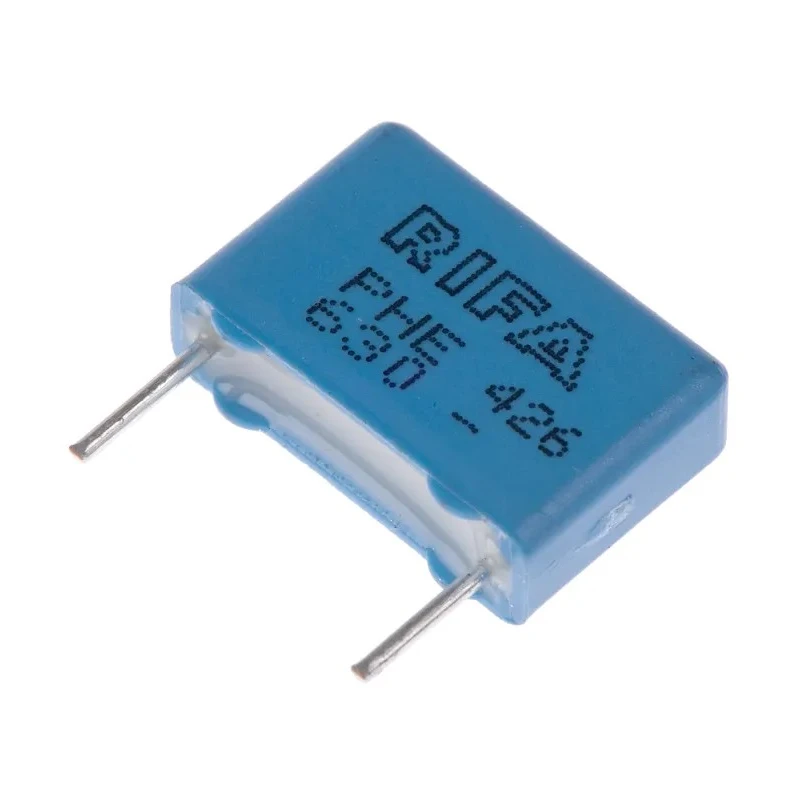

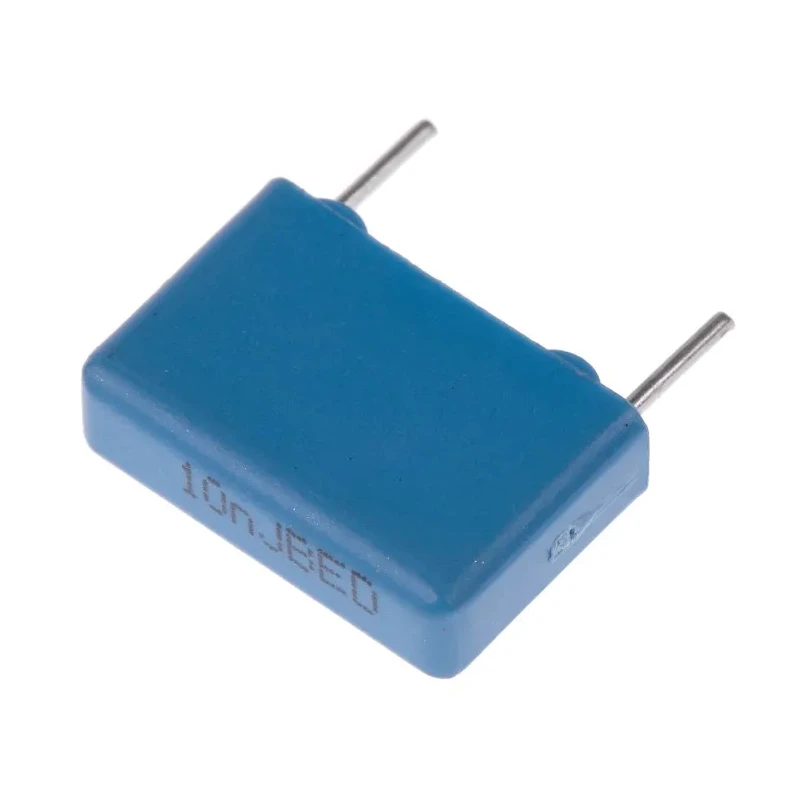

KEMET PHE426 Film Capacitor, 10 nF ±5 %, 630 V dc, 160 V ac, Through Hole Radial Lead PHE426
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | KEMET |
| Height | 9mm |
| Length | 13mm |
| Model | PHE426 |
| Packaging | Box |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | PHE426 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.05% |
| Lead Length | 5mm |
| Standards/Approvals | IEC 60384-16 |
| Pin Count | 2 |
| Rated AC Voltage | 160V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
Key Features
- The capacitor has a capacitance of 10 nF with a tolerance of ±5 %.
- It is encapsulated in self-extinguishing material meeting UL94V-0 standards.
- Rated for operation between -55°C and 105°C for reliable performance.
- Features a radial terminal type with a lead pitch of 10 mm and lead length of 5 mm.
- This component conforms to IEC 60384-16 standards ensuring high quality and safety.
- The dissipation factor is low at 0.05 %, enhancing efficiency in electronic circuits.
- Manufactured in Indonesia to global quality standards.
Product Description
KEMET PHE426 Film Capacitor, model PHE426MA5100JR05, is a high-quality 10 nF capacitor designed for through hole mounting with radial leads. It supports a DC voltage rating of 630 V and an AC voltage rating of 160 V, making it suitable for pulse operation in switched-mode power supplies (SMPS), TVs, monitors, electrical ballasts, and other high-frequency applications.
Encased in UL94V-0 self-extinguishing material, this capacitor offers reliable performance across a temperature range of -55°C to 105°C. Its compact dimensions (13 mm length, 9 mm height, and 4 mm width) and 10 mm lead pitch make it ideal for PCB integration. The low dissipation factor of 0.05 % contributes to efficient energy usage, and the component complies with IEC 60384-16 standards for safety and quality.
This radial lead capacitor features 5 mm lead length and 0.6 mm diameter, facilitating easy and secure soldering. Manufactured in Indonesia, it meets stringent international quality standards.
Capacitance: 10 nF with ±5 % tolerance. Rated DC voltage: 630 V; Rated AC voltage: 160 V. Operating temperature range from -55°C to 105°C. Encapsulated in UL94V-0 self-extinguishing material. Complies with IEC 60384-16 standards.
Lead pitch: 10 mm; Lead length: 5 mm; Lead diameter: 0.6 mm. Dimensions: 13 mm length, 9 mm height, 4 mm width. Low dissipation factor of 0.05 % for energy efficiency.
Ideal for use in industrial electronic components manufacturing, electrical ballast systems, SMPS, and high-frequency circuit applications. This film capacitor contributes to enhanced durability and performance in demanding environments.
Explore more electronics components and Film Capacitors at EnvMart for advanced industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET PHE426 Film Capacitor has a capacitance value of 10 nF with a tolerance of ±5%.
It is rated for a DC voltage of 630 V and an AC voltage of 160 V.
The operating temperature range for this capacitor is from -55°C to 105°C.
This model features a lead pitch of 10 mm and a lead length of 5 mm.
The dissipation factor is low at 0.05%, which enhances efficiency in electronic circuits.
This capacitor supports through hole mounting with radial leads.
The dimensions of the KEMET PHE426 are 13 mm in length, 9 mm in height, and 4 mm in width.
It complies with IEC 60384-16 standards, ensuring high quality and safety.
The terminal type of this model is radial.
This capacitor is manufactured in Indonesia, adhering to global quality standards.
It is suitable for use in switched-mode power supplies (SMPS), TVs, monitors, and electrical ballasts.
The lead diameter of the KEMET PHE426 is 0.6 mm.
