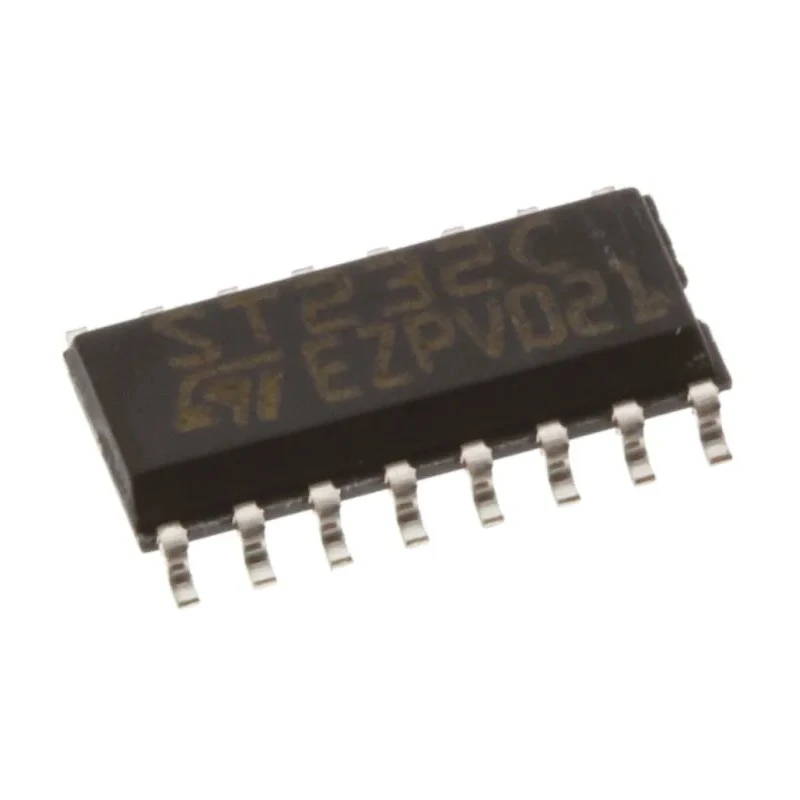

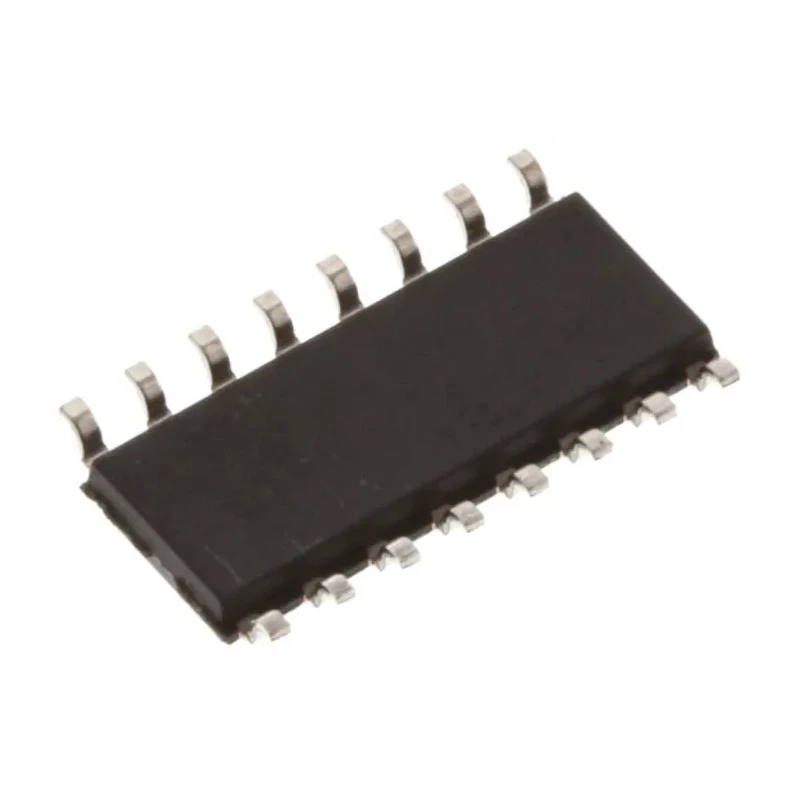

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL 16-Pin SOP ST232CDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | ST232CDR |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ST232C |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOP |
| Minimum Operating Temperature | 0°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 1μs |
| Supply Current | 10mA |
Key Features
- Operates at a minimum supply voltage of 4.5V and a maximum of 5.5V.
- Supports two communication channels with single-ended input.
- Output logic compatible with CMOS/TTL devices.
- Features a maximum propagation delay time of 1 microsecond at capacitive load.
- Designed for surface mount with a 16-pin SOP package.
- Wide operating temperature range from 0°C to 70°C.
- Has a supply current of 10mA ensuring efficient power use.
Product Description
STMicroelectronics ST232CDR is a 2-channel line transceiver designed for interface IC applications requiring CMOS/TTL logic compatibility. Featuring a compact 16-pin SOP surface mount package, this device supports communication through two single-ended input channels and outputs compatible with both CMOS and TTL logic levels. It operates safely within a supply voltage range of 4.5V to 5.5V, making it suitable for a variety of 5V system applications.
The device offers a maximum propagation delay time of 1 microsecond under capacitive loading conditions, enabling fast data transmission. It operates efficiently with a supply current of only 10mA. The ST232CDR maintains functionality across an operating temperature range from 0°C to 70°C, supporting typical commercial temperature environments.
The physical dimensions of this line transceiver are compact with a length of 10mm, a width of 4mm, and a height of 1.75mm, facilitating dense PCB designs. Its surface mount capability promotes automated assembly and integration into modern electronic equipment.
This line transceiver is ideal for use in industrial, electronics manufacturing, and telecommunications applications where reliable RS-232 signal interfacing is required. It suits embedded systems and interface converters in commercial and industrial settings.
Operates at a supply voltage between 4.5V and 5.5V. Supports two communication channels with CMOS/TTL output logic. Surface mount SOP 16-pin package suitable for automated assembly. Fast signal propagation with max delay of 1μs.
Wide operating temperature range for reliability in varying environments. Low current consumption of 10mA for energy-efficient applications. Compact physical dimensions allow high-density circuit integration. Applicable for industrial, commercial, and telecommunications interface solutions.
Explore the wide range of interface ICs and transceivers at EnvMart for dependable electronics manufacturing and design.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 4.5V to 5.5V.
This model supports two communication channels with single-ended input.
The maximum propagation delay time is 1 microsecond at capacitive load conditions.
It has a supply current of 10mA, ensuring efficient power use.
The dimensions are 10mm in length, 4mm in width, and 1.75mm in height.
It operates within a temperature range from 0°C to 70°C.
It is designed in a 16-pin SOP surface mount package.
The output logic is compatible with both CMOS and TTL devices.
The input type is single-ended.
It is suitable for industrial, electronics manufacturing, and telecommunications applications requiring reliable RS-232 signal interfacing.
The logic function of this device is as a line transceiver.
The country of origin is India.
