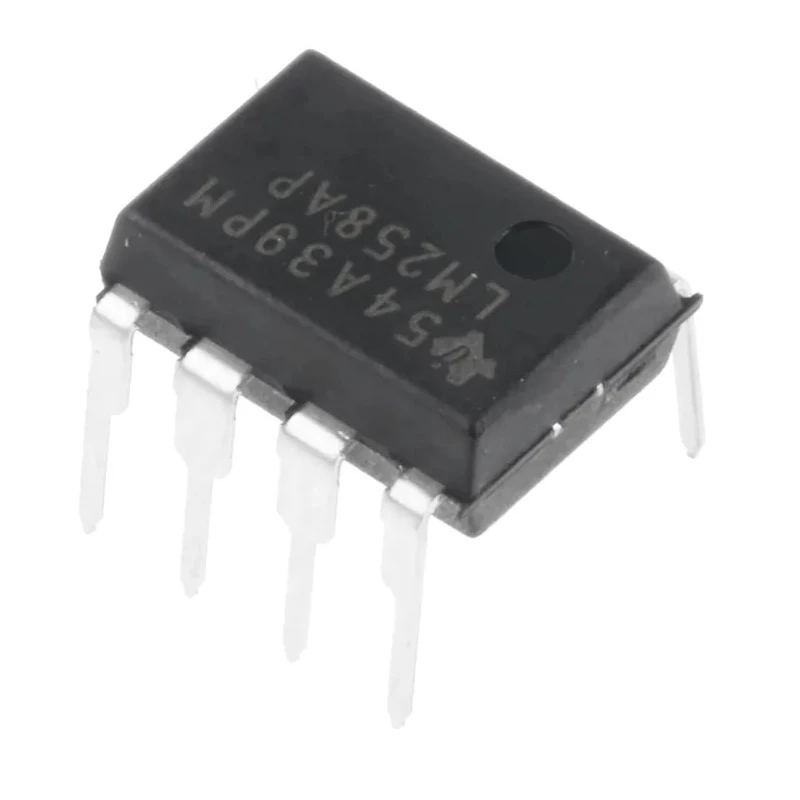

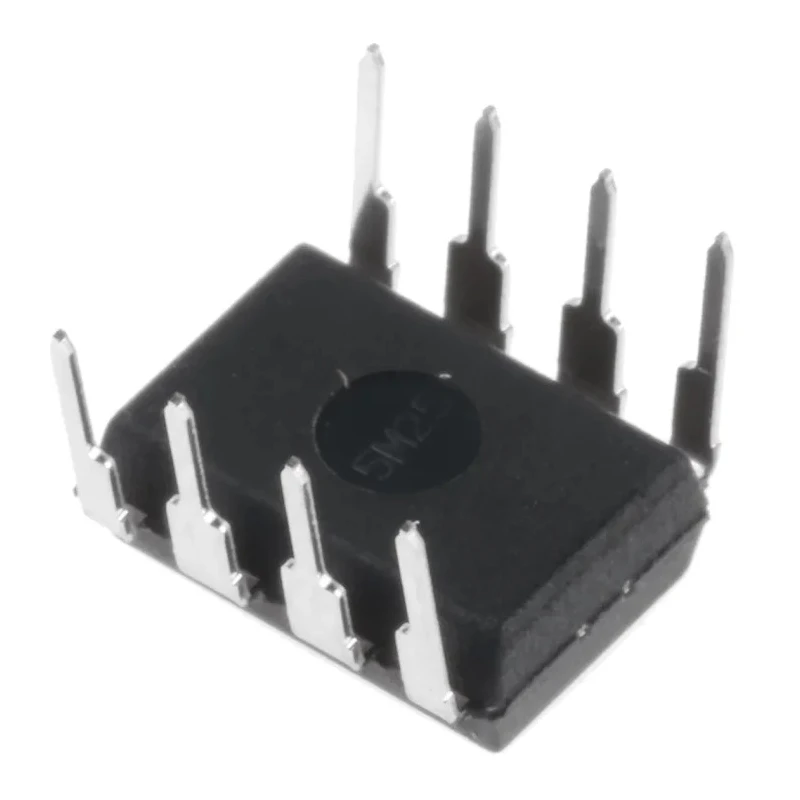

Texas Instruments Operational Amplifier 700 kHz 8-Pin 30V PDIP LM258AP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | LM258AP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM258 |
| Output Current | -10mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -100 nA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 30 nA |
Key Features
- Dual channel operational amplifier ideal for general purpose applications.
- Compatible for operating voltages from 5V up to maximum 30V supply.
- Offers a slew rate of 0.3 V/μs ensuring efficient signal processing.
- Wide operating temperature range from -25°C to 85°C for diverse environments.
- Low input bias current and input offset current for precision signal amplification.
- Complies with RoHS standards assuring environmental safety.
- Standard LM258 series with 6.35 mm width and 9.81 mm length dimensions.
- Suitable for electronics, semiconductor, and industrial amplifier applications.
Product Description
Texas Instruments LM258AP is a versatile operational amplifier featuring dual channels with a gain bandwidth product of 700 kHz packaged in an 8-pin PDIP designed for through-hole mount applications. This amplifier supports supply voltages ranging from 5V to 30V, making it suitable for a variety of industrial and electronic circuits.
The device operates reliably across a temperature spectrum from -25°C to 85°C, offering robust performance in demanding environments. Its slew rate of 0.3 V/μs allows swift response to input signal changes, while low input bias and offset currents ensure accurate amplification critical in sensitive analog signal processing.
The compact size with dimensions 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height makes it easy to incorporate into space-constrained PCB designs. The LM258 series is widely used in automotive, instrumentation, laboratory equipment, and general electronic applications due to its cost-effectiveness and standardization.
This operational amplifier is compliant with RoHS directives, supporting environmentally responsible manufacturing processes. The product is ideal for industrial machines, semiconductor devices, and amplifier circuits requiring reliable dual-channel operation.
Dual channel operational amplifier for general purpose use. Wide supply voltage range 5V to 30V for flexible power configurations. Low input bias current and offset current for enhanced precision. Operational temperature from -25°C to 85°C for harsh conditions.
Compact 8-pin PDIP package suitable for through-hole mounting. RoHS compliant, environmentally safe design. Suitable for electronics, industrial instrumentation, and semiconductor amplifier applications. Explore other Texas Instruments semiconductor and Operational Amplifier products in the Electronics & Electricals category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 700 kHz.
It supports supply voltages ranging from 5V to a maximum of 30V.
This operational amplifier operates within a temperature range of -25°C to 85°C.
The slew rate is 0.3 V/μs, allowing for efficient signal processing.
The dimensions of this model are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
It features dual channels, making it suitable for various applications.
This operational amplifier is packaged in an 8-pin PDIP format designed for through-hole mounting.
The input bias current is -100 nA, which contributes to its precision in signal amplification.
The input offset voltage is 4 mV, ensuring accurate amplification of signals.
Yes, it complies with RoHS standards, supporting environmentally safe manufacturing processes.
The maximum output current is -10 mA, suitable for various applications.
It is suitable for electronics, industrial instrumentation, and semiconductor amplifier applications.
