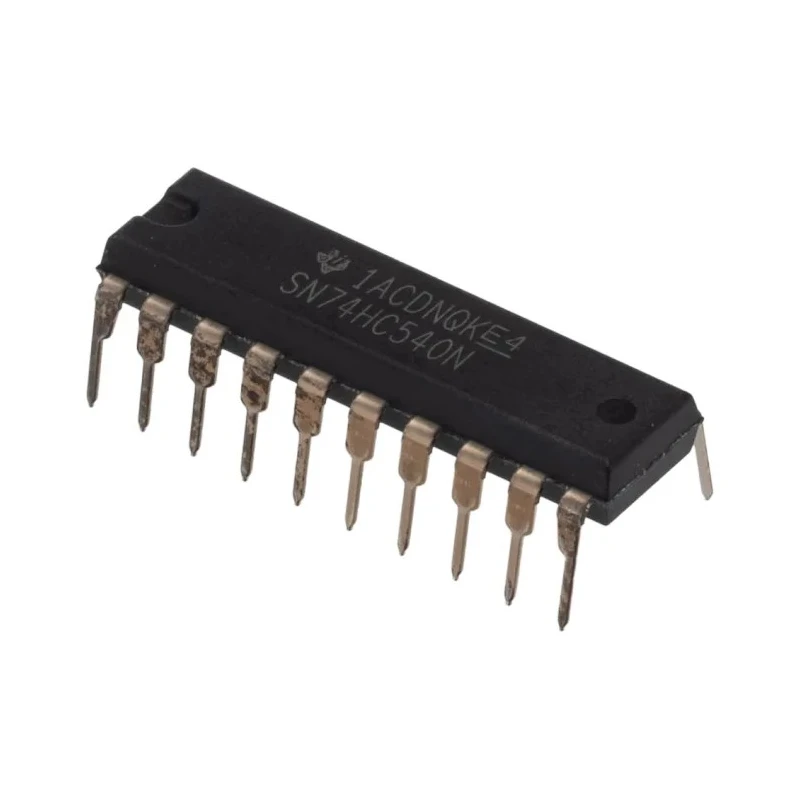

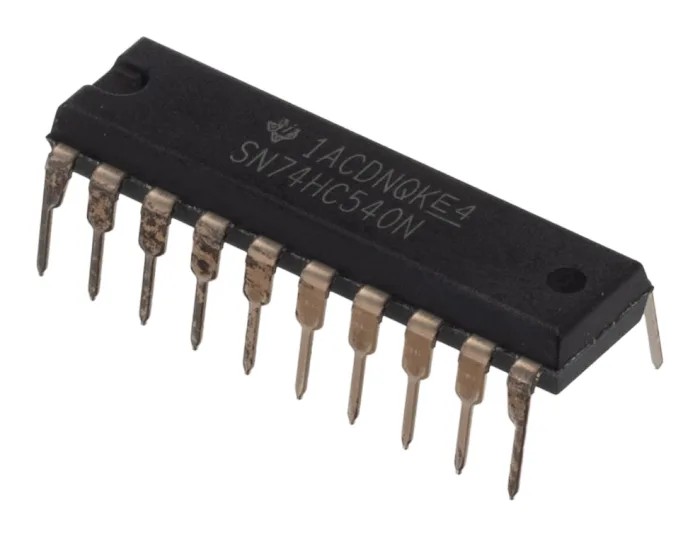

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Inverting, 20-Pin PDIP SN74HC540N
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 26.92mm |
| Model | SN74HC540N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Output type | 3 State |
| Series | SN74HC540 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Operating Voltage | 2 to 6 V |
| Pin Count | 20 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -7.8mA |
| Maximum Propagation Delay Time @ CL | 8ns |
| Supply Current | 80μA |
| Maximum Low Level Output Current | 7.8mA |
Key Features
- Operates within a voltage range of 2 to 6 volts to support flexible power supply requirements.
- Features 8 buffered channels with inverting polarity for efficient signal driving.
- Designed with through-hole mounting for ease of PCB assembly and replacement.
- Supports single-ended input and 3-state output functionality for enhanced control.
- Can operate reliably between -40°C to 85°C, suitable for industrial environments.
- Utilizes silicon gate CMOS technology achieving low power consumption and high operating speeds.
- Has a maximum propagation delay time of 8 nanoseconds at load capacitance, ensuring fast signal transmission.
- Package dimensions include length 26.92 mm, width 6.6 mm, and height 5.08 mm.
Product Description
Texas Instruments SN74HC540N 8-Channel Buffer & Line Driver, model SN74HC540N, is a high-speed, inverting buffer and line driver IC designed for diverse electronic and industrial applications. Housed in a 20-pin PDIP through-hole package, this device provides 8 buffered channels with 3-state outputs and inverting polarity, making it ideal for systems requiring reliable signal buffering and driving capabilities.
Operating voltage ranges from 2 to 6 volts, it supports a wide range of power supply designs while maintaining low power consumption thanks to its silicon gate CMOS technology. The device is compatible with both input and output CMOS logic levels, offering efficient integration in complex digital systems.
Designed for robust industrial performance, the SN74HC540N operates reliably over a temperature range of -40°C to 85°C. Its maximum propagation delay of 8 nanoseconds at typical load capacitance facilitates fast and precise logic signal buffering, essential for maintaining data integrity in timing-sensitive applications.
The 20-pin PDIP package measures 26.92 mm in length, 6.6 mm in width, and 5.08 mm in height, suitable for through-hole PCB mounting and straightforward assembly. While it does not conform to automotive-specific standards, it is manufactured in Malaysia under strict quality controls to meet general industrial and commercial standards.
This buffer and line driver IC from Texas Instruments finds use in industrial electronics, communication interfaces, and complex logic signal management where multiple buffered channels and quick switching are crucial.
Operates at a voltage range of 2 to 6 volts for versatile power compatibility. Features 8 inverting buffered channels with 3-state outputs for precise signal control. Through-hole PDIP package simplifies mounting and replacement on PCBs.
Robust operation between -40°C and 85°C supports demanding environments. High speed CMOS silicon gate technology enables low power consumption and fast response. Compact package dimensions for effective PCB design integration.
Manufactured in Malaysia ensuring consistent quality. Explore the Texas Instruments semiconductor range on EnvMart for more solutions in buffer and line driver IC applications.
Explore more products in our Line Interface ICs category.
