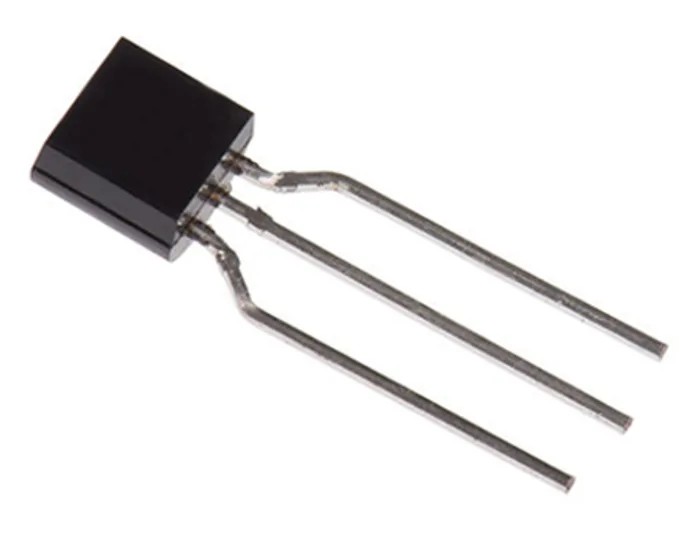

STMicroelectronics Linear Voltage Regulator 30V 100mA TO-92 3-Pin L78L05ABZ-AP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L78L05ABZ-AP, Voltage Regulator 30V TO-92 3-Pin RS |
| Brand | STMicroelectronics |
| Height | 4.95mm |
| Length | 4.95mm |
| Model | L78L05ABZ-AP |
| Width | 3.94mm |
| Mount Type | Through Hole |
| Series | L78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 6mA |
| Pin Count | 3 |
Key Features
- Operates with a maximum input voltage of 30V providing stable output.
- Delivers up to 100mA output current with internal current limiting and thermal shutdown.
- Features a compact TO-92 through-hole mounting package.
- Has a quiescent current of 6mA ensuring low power consumption.
- Suitable for industrial and electronic applications requiring reliable voltage regulation.
- Maximum operating temperature rated at 125°C for robust performance.
- Pin count is 3, facilitating simple integration in circuits.
Product Description
STMicroelectronics L78L05ABZ-AP is a linear voltage regulator designed to provide a regulated 5V output with a maximum input voltage of 30V. Packaged in a compact TO-92 3-pin through-hole mount, this regulator offers a maximum output current of 100mA, making it suitable for various electronic and industrial applications where precise and stable voltage supply is critical.
The device integrates internal current limiting and thermal shutdown features, enhancing circuit protection under overload or overheating conditions. With a low quiescent current of 6mA, it ensures efficient power usage in embedded systems and electronic devices.
Measuring approximately 4.95mm in length and height, and 3.94mm in width, the L78L05ABZ-AP is ideal for space-constrained designs requiring positive polarity voltage regulation. Its robust maximum operating temperature of 125°C supports use in demanding environments.
Typical applications include power supply stabilization for microcontrollers, sensors, and low-power industrial circuits. Operates safely up to 30V input voltage. Supports output currents up to 100mA. Includes thermal shutdown protection against overheating.
Compact TO-92 package with 3 pins for easy mounting. Low quiescent current of 6mA reduces power loss. Dimensions: 4.95mm x 4.95mm x 3.94mm (LxHxW). Maximum operating temperature: 125°C. Positive polarity voltage regulator series L78Lxx.
Recommended for use in electronic components, power management circuits, and as a building block in various industrial control and instrumentation systems. Explore more Voltage Regulators and power management ICs at EnvMart for comprehensive electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a maximum input voltage of 30V.
It delivers up to 100mA output current, suitable for various applications.
The quiescent current is 6mA, ensuring low power consumption during operation.
It measures approximately 4.95mm in length, 4.95mm in height, and 3.94mm in width.
The maximum operating temperature is rated at 125°C, allowing for robust performance in demanding environments.
This model is packaged in a compact TO-92 through-hole mounting package.
It features a pin count of 3, facilitating simple integration into circuits.
It integrates internal current limiting and thermal shutdown features for enhanced circuit protection.
Typical applications include power supply stabilization for microcontrollers, sensors, and low-power industrial circuits.
This voltage regulator has a positive polarity, suitable for various electronic applications.
It belongs to the L78Lxx series of voltage regulators.
This model uses through-hole mounting, making it easy to install in circuits.
