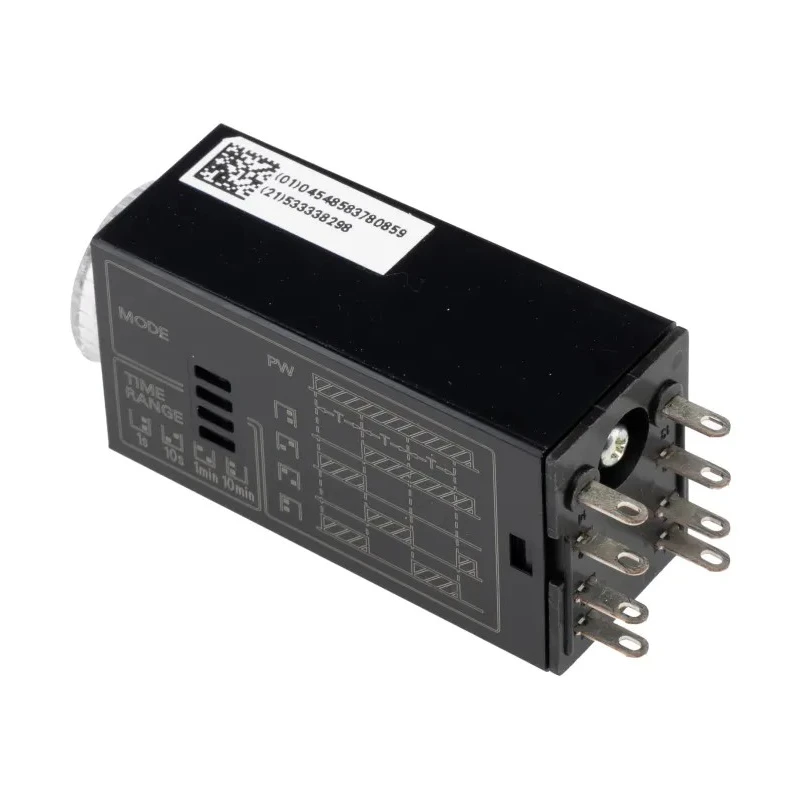

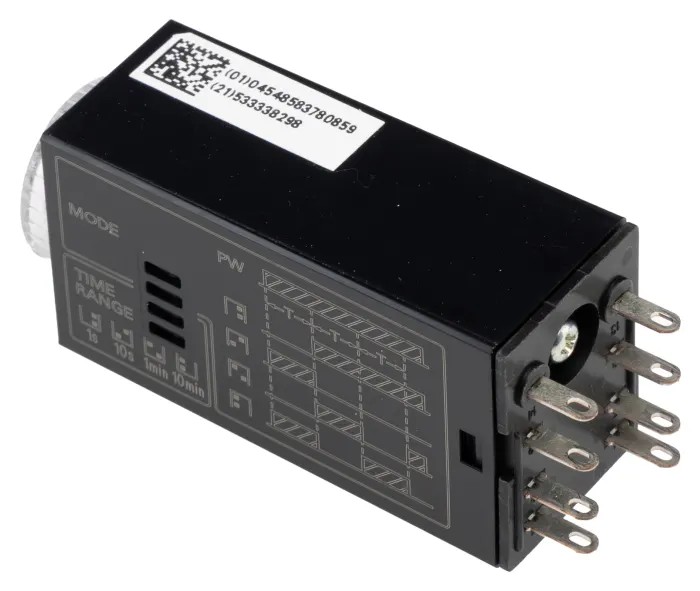

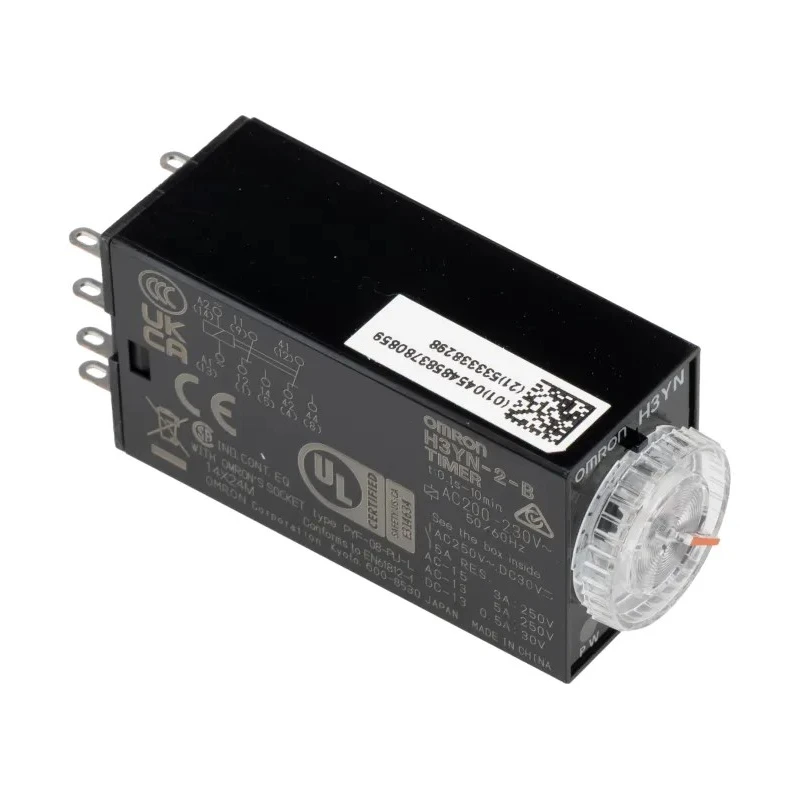

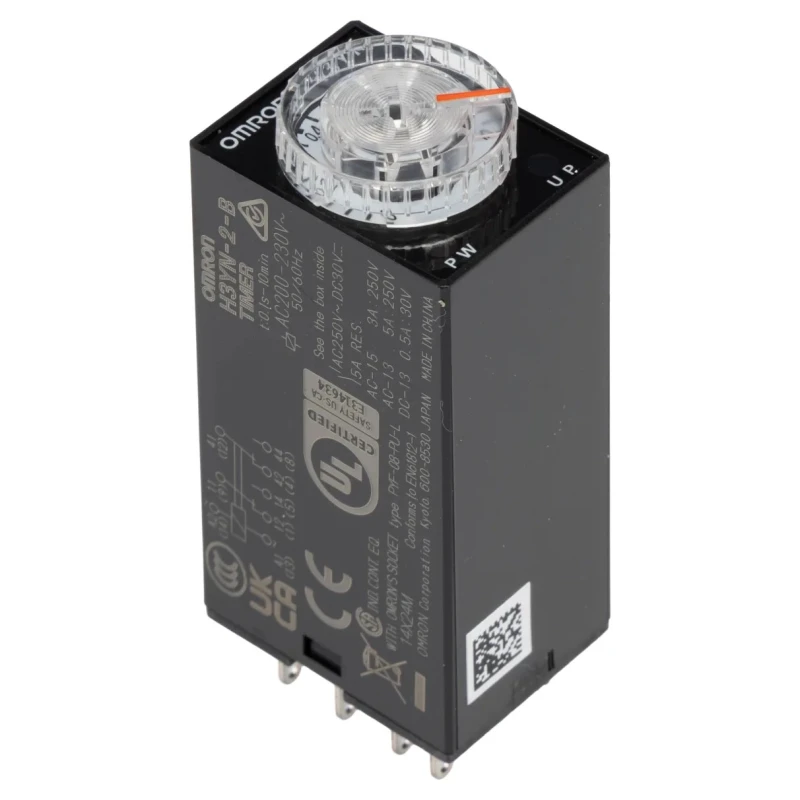

Omron Panel Timer Relay 4-Contact DPDT 125 V dc 200-230 V ac 0.1 s to 10 min Multifunction H3YN

Omron H3YN-2-B AC200-230 Panel Timer Relay is a precision multifunction timer relay designed for industrial automation and control applications. It offers a versatile time range from 0.1 seconds to 10 minutes and supports a 4-contact DPDT configuration, suitable for complex switching requirements.

The relay operates on a reliable power supply voltage of 125 V DC and 200 to 230 V AC, making it compatible with a wide range of industrial power systems. Its compact panel mount form factor measures 56.6 mm in width, 28 mm in height, and 21.5 mm in length, enabling seamless integration in control panels.

This timer relay features push-in terminals to facilitate quick and secure installation, reducing downtime during panel wiring or replacements. It is engineered to function reliably within temperature extremes from -10°C to 55°C. The IP40 ingress protection rating ensures safe operation by guarding against foreign objects larger than 1 mm.

Compliant with international standards such as UL 508, CCC, IEC 60664-1, CSA C22.2 No.14, CE, Lloyds, and EN 61812-1, this relay meets rigorous quality and safety benchmarks. Its contact current capacity is rated at 5 Amperes with a maximum switching voltage capability of 250 Volts AC, supporting various industrial load types.

Common applications include machine cycle timing in manufacturing, HVAC systems, alarm delay functions, lighting controls, and broader process automation where precise time control is critical. The multifunction timer supports various delay ON, flicker ON/OFF modes to cater to complex timing sequences.

This timer relay features a compact panel mount design for easy installation. Supports multiple timer functions to handle diverse automation needs effectively. Push-in terminal design enables quick and reliable wiring connections.

Operating temperature range from -10°C to 55°C ensures robust performance in industrial environments. IP40 rated for protection against solid objects larger than 1 mm. Contact current rating of 5A and maximum switching voltage up to 250V AC.

Conforms to UL 508, IEC 60664-1, CSA C22.2 No.14, CE, Lloyds, and EN 61812-1 standards. Precision timing from 0.1 seconds to 10 minutes adjustable via transparent knob.
