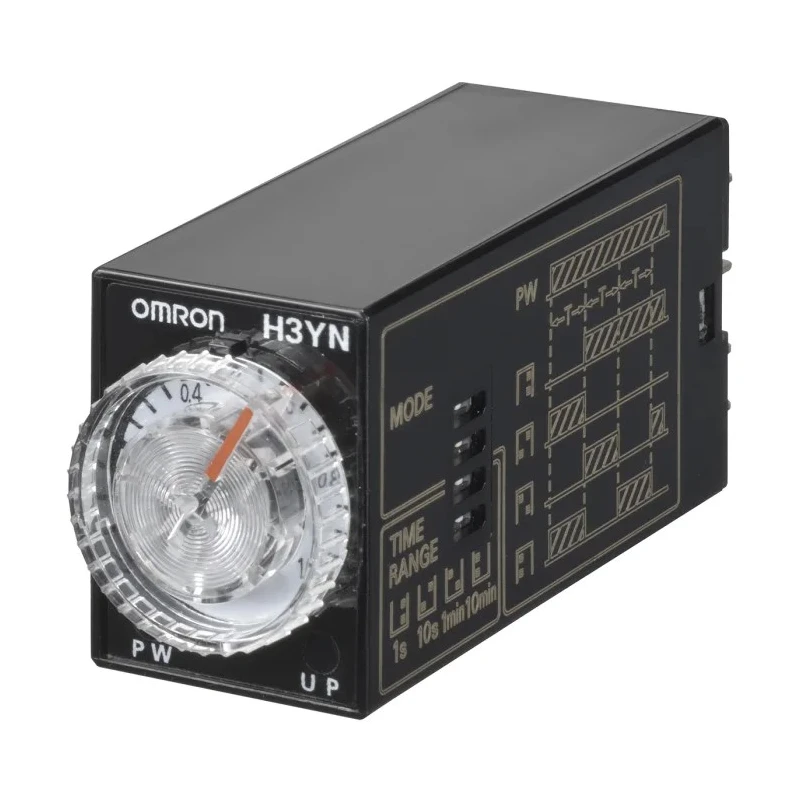

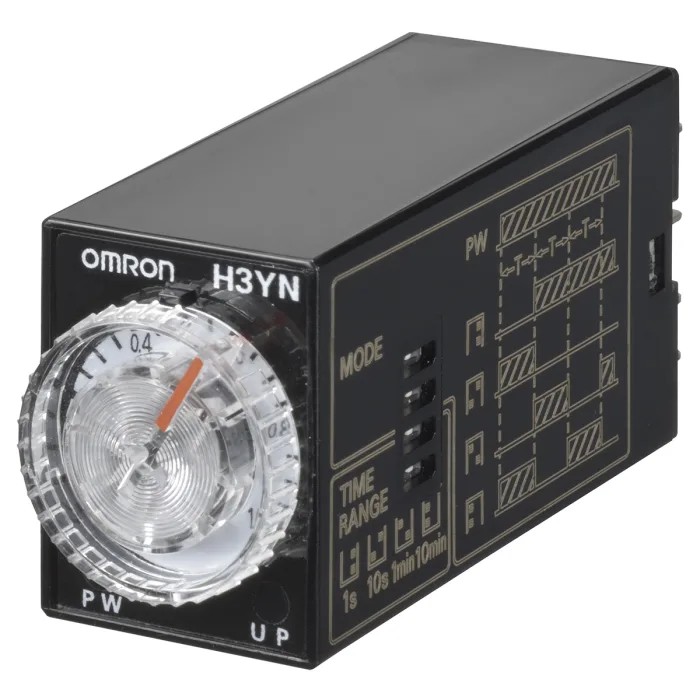

Omron Panel Timer Relay 4-Contact, DPDT Configuration, 100-120 VAC 125 V DC, 0.1 s to 10 min Multifunction H3YN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Function | Offset Double Ring End |
| Length | 21.5mm |
| Model | H3YN |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 56.6mm |
| Mount Type | Panel |
| Series | H3YN |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 10 min |
| Terminal type | Push-in |
| Number of Contacts | 4 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 125 V |
| Supply AC Voltage | 100, 120V ac |
| Omron Plug In Timer Relay, 100-120V ac, 4-Contact, 0.1 → 600s, DPDTBrand | Omron |
Key Features
- The timer relay supports supply voltages of 100-120 VAC and 125 V DC.
- Push-in terminal connections facilitate tool-free, secure wiring deployment.
- Compact panel mount design with dimensions 56.6 mm width, 28 mm height, and 21.5 mm length.
- Switching contacts rated for 5 A load current with up to 250 V AC switching capability.
- Enclosure rated IP40 suitable for protected indoor industrial environments.
- Operating temperature range from -10°C to 55°C ensures reliable use in standard ambient conditions.
- Complies with international safety and quality standards including CE, UL 508, CSA C22.2, IEC 60664-1, and CCC.
- Multifunction operation includes offset double ring end for diverse timing applications.
Product Description
Omron H3YN panel timer relay, model H3YN, delivers adjustable multifunction timing from 0.1 seconds to 10 minutes with a robust DPDT 4-contact configuration for diverse industrial control panel and automation applications. It accommodates both AC supply voltages of 100 to 120 V and DC supply voltage of 125 V, providing flexibility in control circuit design. The timer's multifunction mode includes offset double ring end functionality, enabling precise timing operations suitable for complex control requirements.
The device's compact panel mount form factor with push-in terminals ensures easy and secure installation in control cabinets and electrical panels. Measuring 56.6 mm in width, 28 mm in height, and 21.5 mm in length, it fits standard industrial panels without wasting space.
Contact ratings up to 5 A and rated switching AC voltage up to 250 V enable moderate load switching for motor starters, indicators, and other control elements. The unit is protected by an IP40 enclosure rating, making it suitable for indoor industrial environments requiring dust protection but not full waterproofing.
Designed for reliable operation within a temperature range of -10°C to 55°C, the timer relay is ideal for industrial, manufacturing, HVAC, assembly line automation, and test equipment delay control applications. It meets multiple international safety and quality standards such as CE, UL 508, CSA C22.2, IEC 60664-1, CCC, and Lloyds certifications, ensuring high reliability and compliance.
The timer relay supports supply voltages of 100-120 VAC and 125 V DC. DPDT contact configuration provides dual independent switching circuits. Push-in terminal design allows quick wiring without tools. Compact panel mount with precise dimensions for efficient space utilization.
5 A contact current rating suitable for moderate load switching. IP40 protection rating ensures dust resistance for indoor use. Operating temperature from -10°C to 55°C for varied industrial environments. Complies with CE, UL 508, CSA, IEC, CCC, and Lloyds standards.
Multifunction timing with offset double ring end offers flexible control. Applications include industrial assembly machinery, HVAC panels, motor control, lighting, and test equipment delay systems.
This Omron timer relay is essential for precise, multifunctional timing control in electrical panels and industrial automation systems. Browse the Timer Relay category at EnvMart for similar reliable and compliant control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a timing range from 0.1 seconds to 10 minutes, allowing for flexible timing applications.
It supports AC supply voltages of 100 to 120 VAC and a DC supply voltage of 125 V.
The timer relay features a DPDT configuration with a total of 4 contacts.
The contact current rating is 5 A, suitable for moderate load switching applications.
It has an IP40 enclosure rating, providing protection against dust in indoor environments.
The dimensions are 56.6 mm in width, 28 mm in height, and 21.5 mm in length, making it compact for panel mounting.
The operating temperature range is from -10°C to 55°C, suitable for various industrial environments.
It utilizes push-in terminal connections, allowing for tool-free and secure wiring deployment.
The contacts are rated for a maximum switching voltage of 250 V AC.
This function allows for diverse timing applications, enhancing the flexibility of the timer relay.
It complies with multiple international safety and quality standards including CE, UL 508, CSA C22.2, IEC 60664-1, and CCC.
It is suitable for applications in industrial assembly machinery, HVAC panels, motor control, lighting, and test equipment delay systems.
