| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Current | 10A |
| Model | BYF-01T-P0.5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | VYH, YL, YLN |
| Termination Type | Crimp |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -25°C |
| For Use With | VYH, YL and YLN Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
| Maximum working voltage | 300V |
| Suitable wire size | 26 to 20 AWG (0.13 to 0.5 mm2) |

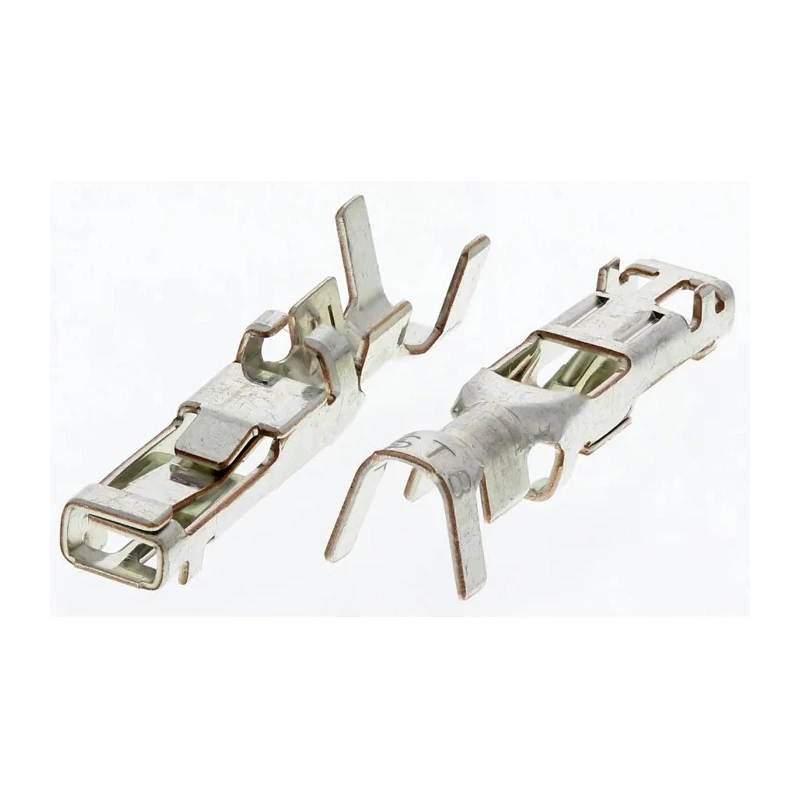

JST BYF-01T-P0.5A female crimp terminal is engineered for use with VYH, YL, and YLN series connector housings, providing reliable electrical connection for wire-to-wire applications. This Crimp Terminal supports wire sizes ranging from 26 AWG (0.13 mm²) to 20 AWG (0.5 mm²) and carries a current rating of up to 10A, with a maximum working voltage of 300V, making it suitable for various electronics and electrical assemblies.
The terminal features a phosphor bronze contact material plated with tin to ensure optimal conductivity and corrosion resistance, with a maximum contact resistance of 10 milliohms. The crimp termination method guarantees secure mechanical and electrical connection, suitable for industrial and commercial wire harness applications.
Designed to operate reliably within a temperature range of -25°C to 90°C, this terminal is ideal for diverse environments including industrial automation, electronics manufacturing, and electrical equipment assembly. Its origin in Japan reflects adherence to high manufacturing standards, ensuring consistent performance and longevity.
Wire size compatibility from 26 to 20 AWG provides flexibility in wiring options. Maximum current rating of 10 amperes supports moderate power applications. Crimp termination facilitates efficient and secure assembly. Phosphor bronze and tin plating ensure electrical reliability and resistance to oxidation.
Wide operating temperature range suits varied industrial conditions. Low contact resistance minimizes electrical losses. Manufactured in Japan, guaranteeing quality and performance. Compatible with JST VYH, YL, and YLN series connector housings.
Explore other JST connector components in the EnvMart catalog to complete your electronic or electrical projects with trusted quality components.
