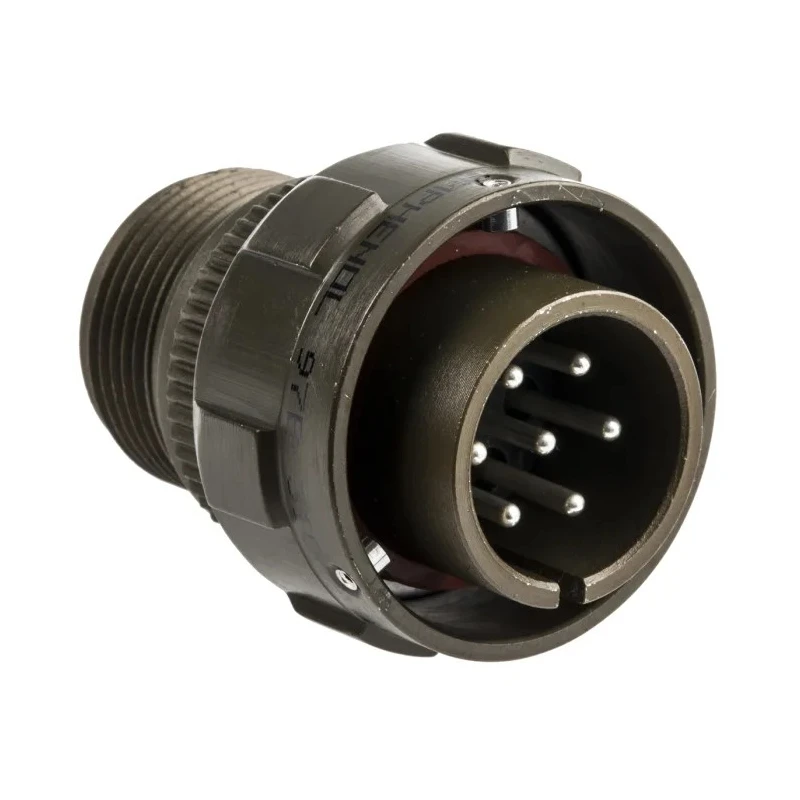

Amphenol Limited MIL Spec Circular Connector 7 Contacts Male 500V AC Brass Straight Olive Shell Size 16S 97B-3106A-16S-1P-HD
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 13A |
| Model | 97B-3106A-16S-1P-HD |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Brass |
| Series | 97B |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 16S |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Olive Drab Cadmium |
Key Features
- This MIL-DTL-5015 standard connector features a bayonet-style mating type for secure connection.
- Housing made of aluminium alloy with olive drab cadmium plating ensures durability and corrosion resistance.
- Offers a current rating of 13A and voltage rating up to 500V AC.
- Operates reliably within a temperature range of -55°C to 125°C.
- Includes solder termination with brass contacts plated in silver for superior conductivity.
- Strain relief is integrated for cable protection and longevity.
- Designed with a straight orientation and shell size 16S for precise compatibility.
- Cable mount type connector suitable for rugged industrial use and military-grade environments.
Product Description
Amphenol Limited 97B-3106A-16S-1P-HD MIL Spec Circular Connector is a robust and reliable 7-contact male connector designed to meet MIL-DTL-5015 military specifications. It supports industrial and military applications requiring dependable and environmentally protected electrical connections.
This connector features a bayonet mating system that allows quick and secure coupling. The shell is crafted from aluminium alloy finished with olive drab cadmium plating, providing corrosion resistance and durability under harsh conditions. The contacts are made of brass with silver plating, optimizing electrical conductivity and resistance to wear.
With a current capacity of 13A and a voltage rating of 500V AC, this connector is engineered for greater electrical performance. It operates safely in extreme temperatures ranging from -55°C to 125°C, ensuring reliability across diverse environments.
The connector utilizes solder termination style contact fixing and offers integrated strain relief to protect cabling from mechanical stress. Its standard shell size 16S and straight orientation make it compatible with a wide range of cable assemblies and mating parts.
These connectors are widely used in industrial machinery, avionics, defense equipment, transportation systems, and other critical applications requiring MIL-SPEC certified components. They conform to MIL-DTL-5015 and are interconnectable with BS 9522 F0032 specifications, ensuring interoperability.
Designed for ruggedness and ease of use, this connector contributes to system longevity and stable signal transmission in demanding conditions. This MIL-DTL-5015 circular connector ensures military-grade performance for critical environments.
Aluminium alloy housing with olive drab cadmium plating provides excellent corrosion resistance. Solder termination with brass contacts plated with silver offers superior electrical conductivity. Bayonet mount provides fast, secure, and reliable connection and disconnection.
Current rating of 13A and voltage rating of 500V AC ensure functional versatility. Operating temperature range from -55°C to 125°C supports a variety of harsh environments. Connector designed with cable mount type and straight orientation for ease of installation.
Compliant with MIL-DTL-5015 and interconnectable with BS 9522 F0032 standards. Explore the comprehensive range of Mil Spec Circular Connectors at EnvMart for industry-grade electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of up to 500V AC.
It supports a current rating of 13A.
The housing is made of aluminium alloy with olive drab cadmium plating, and the contacts are brass plated in silver.
It operates reliably within a temperature range of -55°C to 125°C.
The connector utilizes a solder termination style for contact fixing.
It features a bayonet mating system for secure connection.
The shell size is 16S, designed for precise compatibility.
This connector has a total of 7 contacts.
It is suitable for industrial machinery, avionics, defense equipment, and transportation systems.
Yes, it conforms to MIL-DTL-5015 standards and is interconnectable with BS 9522 F0032 specifications.
The connector is designed with a straight orientation.
The country of origin for this connector is India.
