Sharp Optocoupler Surface Mount 4-Pin Mini-Flat Package PC355NJ0000F

The Sharp PC355NJ0000F optocoupler is a surface mount electronic component designed for effective isolation and signal transfer in industrial and commercial electronic applications. Its compact 4-pin mini-flat package facilitates integration into densely populated circuit boards, making it ideal for power and connector assemblies.

This optocoupler features a maximum forward voltage of 1.4 volts, providing efficient power usage, while supporting a maximum input current of 50 milliamps which ensures reliable operation in various electronic setups. The device exhibits a high current transfer ratio of 600%, enabling strong signal amplification essential in control and communication systems.

Designed to operate across a broad temperature range from 30°C to 100°C, the PC355NJ0000F assures stable performance under diverse environmental conditions. Its typical rise time of 60 microseconds and fall time of 53 microseconds support rapid switching, which is beneficial in fast-responding circuits.

Certified under the RoHS directive and UL1577 standards, this Sharp optocoupler meets stringent safety and environmental regulations, providing confidence in quality and compliance. The inclusion of a Darlington transistor output further enhances its amplification capabilities, useful in industrial electronics, automation equipment, and power supplies.

This Optocoupler is extensively used in applications requiring electrical isolation between input and output, such as signal isolation in power circuits, microcontroller interfaces, and communication systems.

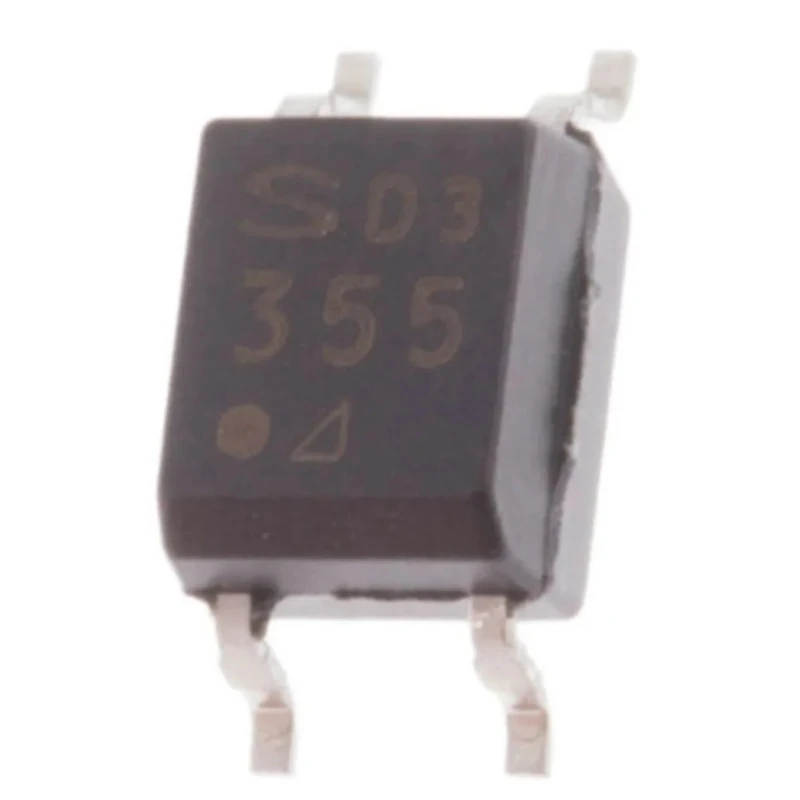

The product images depict the typical packaging and form factor, aiding identification and design planning. Explore more optoelectronic components and related products in the Electronics & Electricals category on EnvMart.

Surface mount design suitable for automated assembly. 4-pin mini-flat package for compact integration. Maximum forward voltage of 1.4 volts ensures low power consumption. Maximum input current rated at 50 milliamps for robust operation.

High current transfer ratio of 600% for effective signal amplification. Operating temperature ranges from 30°C to 100°C for versatile applications. Typical rise time of 60 microseconds and fall time of 53 microseconds for fast switching.

Complies with RoHS Directive and UL1577 safety standards. Incorporates Darlington transistor output for enhanced amplification.
