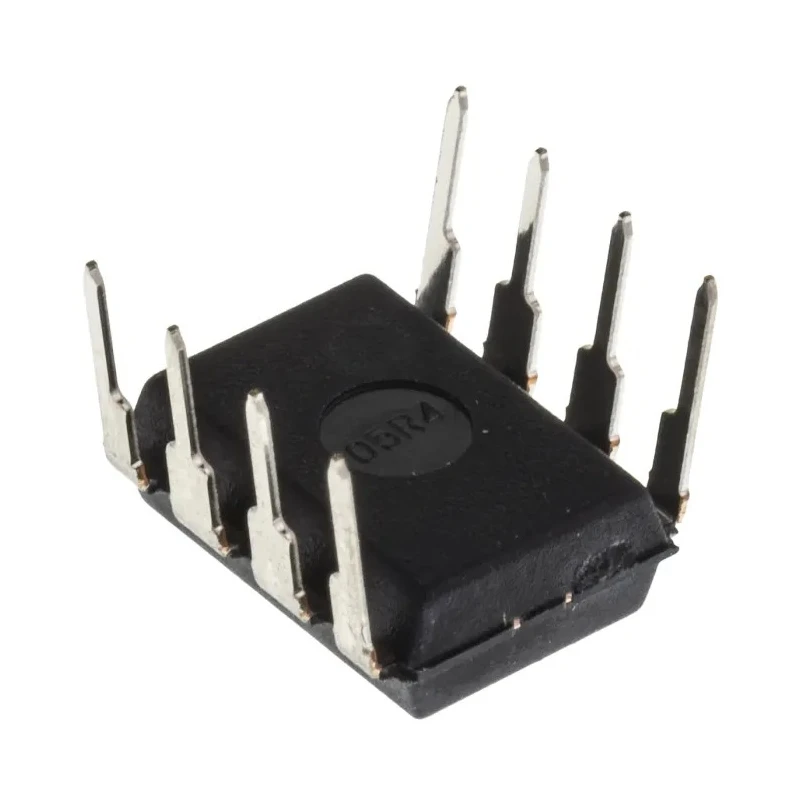

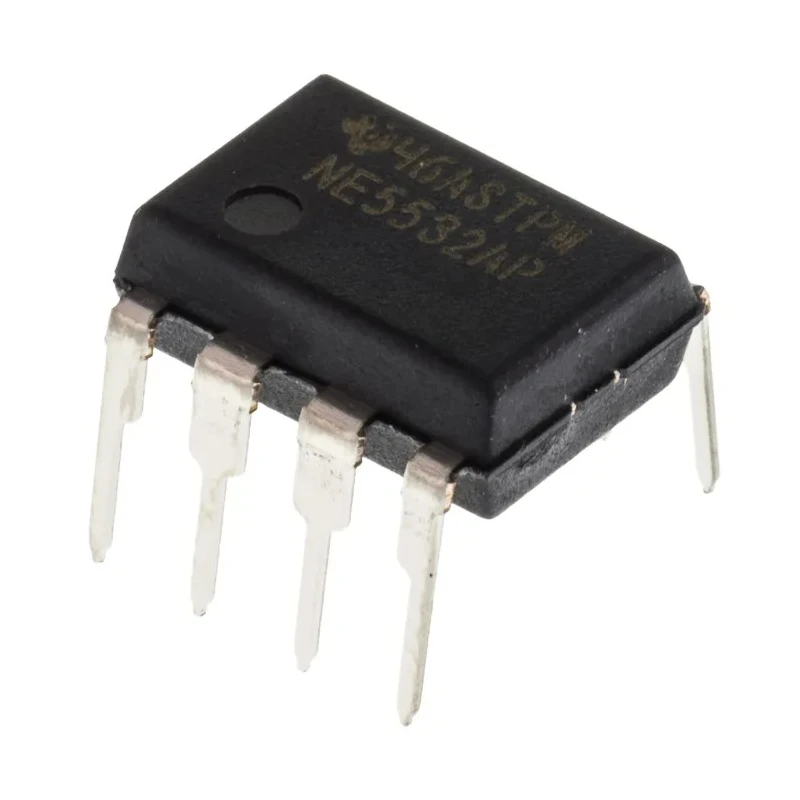

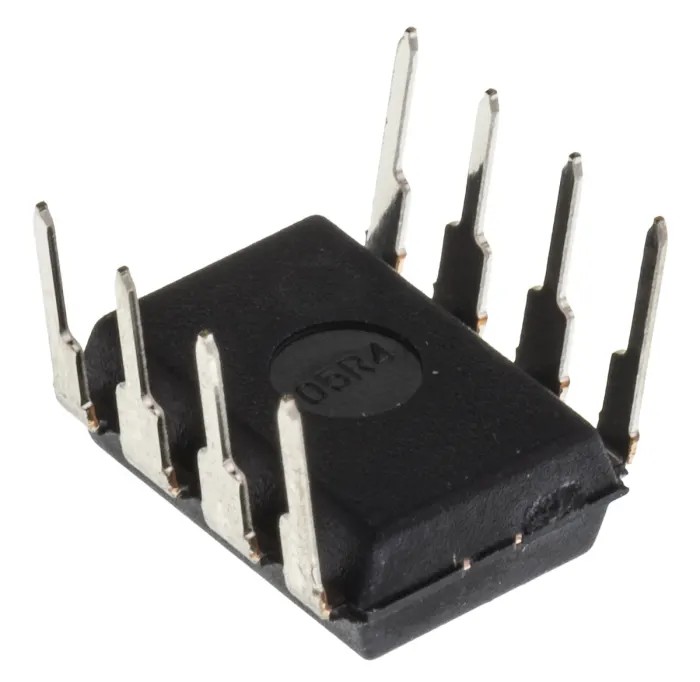

Texas Instruments Operational Amplifier, 10 MHz Gain Bandwidth, 8-Pin PDIP Through Hole NE5532AP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | NE5532AP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | NE55 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1000 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 9V/μs |
| Input Offset Current | 200 nA |
Key Features
- Features an 8-pin PDIP package ideal for through hole mounting.
- Operating voltage range from -22 V to 22 V ensures wide compatibility.
- Input offset voltage of 5 mV for precision applications.
- Slew rate of 9 V/μs provides fast response to input signals.
- Input bias current rated at 1000 nA and input offset current at 200 nA.
- Compatible with operating temperatures from 0°C to 70°C.
- Compact dimensions with length 9.81 mm, width 6.35 mm, and height 4.57 mm.
- Part of the NE55 series, not compliant with automotive standards.
Product Description
The Texas Instruments NE5532AP operational amplifier offers high performance with low noise characteristics suitable for various analog signal processing applications. Featuring a dual channel design in an 8-pin PDIP package, it supports through hole mounting for ease of PCB assembly.
Operating within a wide supply voltage range from -22 V to 22 V, this amplifier is designed for robust use in industrial and consumer electronics environments. The gain bandwidth product of 10 MHz and slew rate of 9 V/μs enable high-frequency and fast transient response.
The device maintains an input offset voltage of 5 mV, input bias current of 1000 nA, and input offset current of 200 nA, which ensures accurate amplification and minimal signal distortion. It operates reliably across a temperature range of 0°C to 70°C.
With compact dimensions of approximately 9.81 mm length, 6.35 mm width, and 4.57 mm height, NE5532AP integrates well into space-constrained circuit designs. This model belongs to the NE55 series and does not conform to automotive standard specifications.
Ideal for industrial instrumentation, audio equipment, and general-purpose amplification in analog electronics, this operational amplifier is a versatile component for both prototype and production circuits.
Features an 8-pin PDIP package ideal for through hole mounting. Operating voltage range from -22 V to 22 V ensures wide compatibility. Input offset voltage of 5 mV for precision applications. Slew rate of 9 V/μs provides fast response to input signals.
Input bias current rated at 1000 nA and input offset current at 200 nA. Compatible with operating temperatures from 0°C to 70°C. Compact dimensions with length 9.81 mm, width 6.35 mm, and height 4.57 mm. Part of the NE55 series, not compliant with automotive standards.
This Texas Instruments NE5532AP operational amplifier is a fundamental component for electronic design engineers requiring reliable and precise signal amplification. Explore more Operational Amplifiers and semiconductor devices from leading brands in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 10 MHz, allowing for effective amplification of high-frequency signals.
It operates within a voltage range from -22 V to 22 V, ensuring compatibility with various applications.
The dimensions are approximately 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, making it suitable for compact circuit designs.
The input offset voltage is 5 mV, which helps in maintaining precision in amplification applications.
The slew rate is 9 V/μs, providing a fast response to input signals, which is crucial for high-speed applications.
This operational amplifier features a dual channel design, allowing for simultaneous amplification of two signals.
The input bias current is rated at 1000 nA, which contributes to its low noise characteristics.
It comes in an 8-pin PDIP package, which is ideal for through hole mounting on PCBs.
The maximum operating temperature is 70°C, making it suitable for a variety of environments.
The input offset current is 200 nA, which helps in minimizing signal distortion during amplification.
It is suitable for industrial instrumentation, audio equipment, and general-purpose amplification in analog electronics.
No, this model does not conform to automotive standard specifications.
