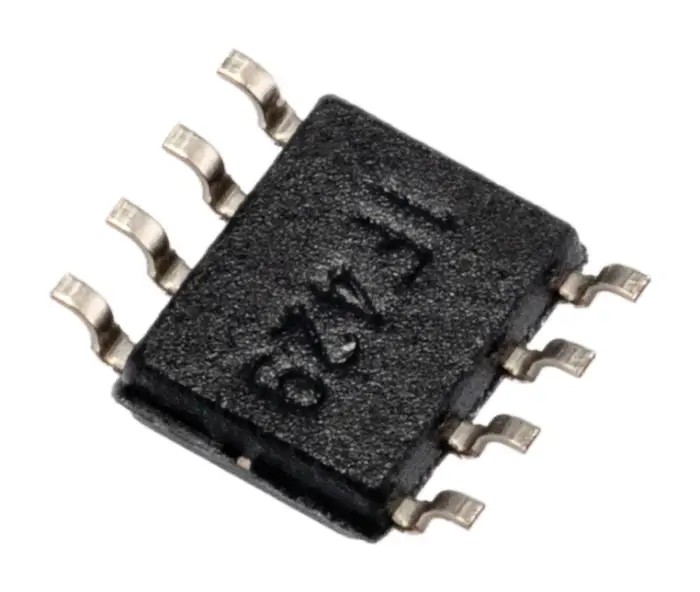

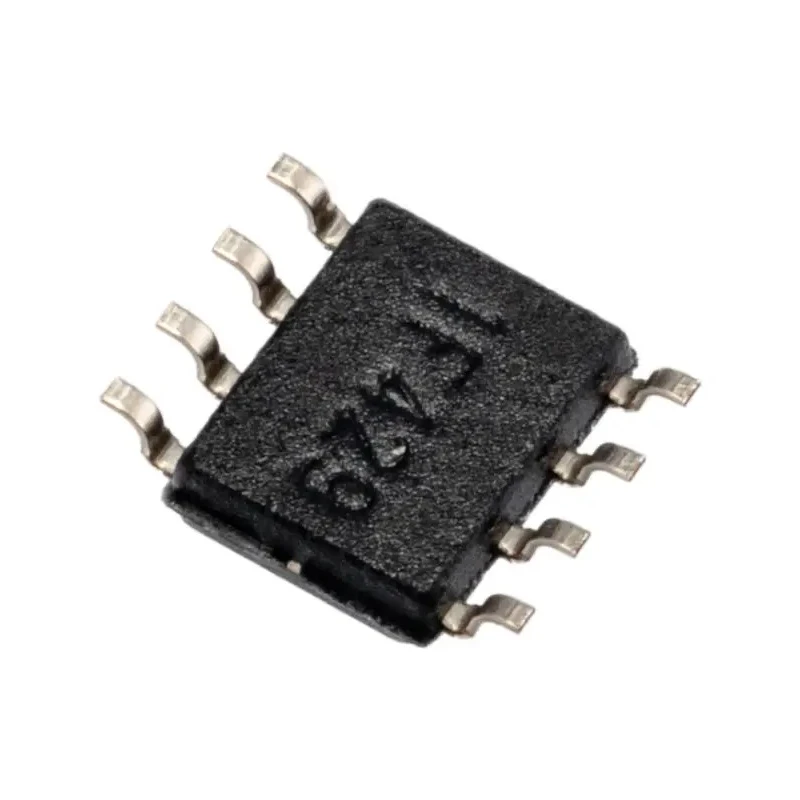

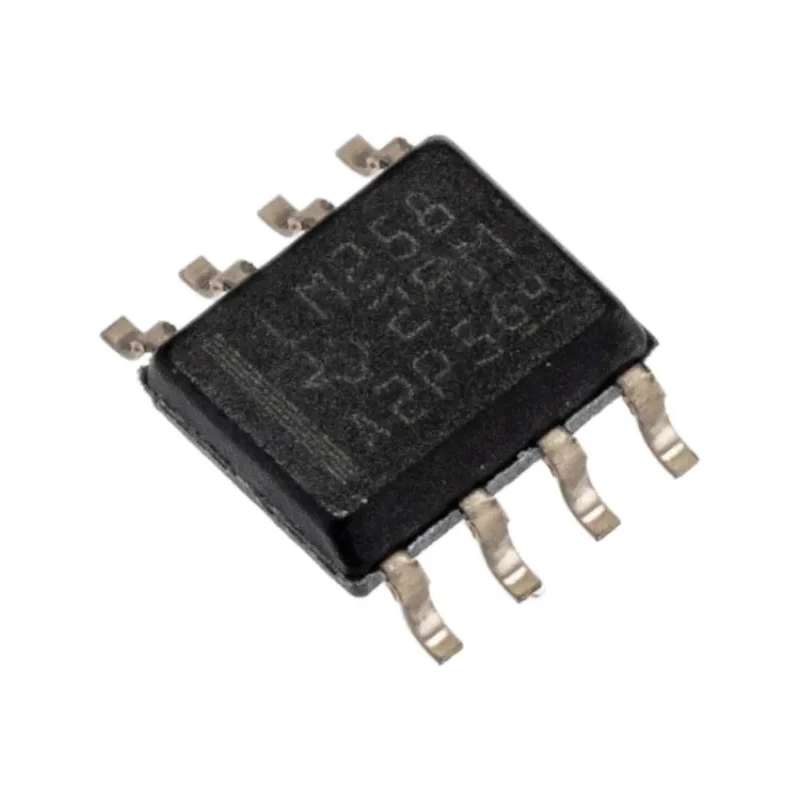

Texas Instruments Operational Amplifier Dual Channel 8-Pin SOIC 700 kHz 5-30V LM258D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | LM258D |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM258 |
| Output Current | -10mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -300 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 100 nA |
Key Features
- Dual channel operational amplifier in compact 8-pin SOIC package.
- Gain bandwidth product of 700 kHz for efficient signal amplification.
- Wide supply voltage range from 5V up to 30V allowing versatile use.
- Low input bias current and offset voltage enhance precision.
- Slew rate of 0.3 V/μs suitable for applications requiring moderate speed.
- Operating temperature range from -25°C to 85°C for reliable performance.
- Standard SOIC surface mount for easy PCB integration.
- Dual channels accommodate multiple signal amplification needs.
Product Description
Texas Instruments LM258D is a dual operational amplifier housed in an 8-pin SOIC surface mount package designed for general purpose amplification. This device provides a gain bandwidth of 700 kHz and supports supply voltages ranging from 5V to a maximum of 30V. It exhibits low input bias current and offset voltage characteristics, delivering precise signal processing suitable for various industrial and electronic applications.
The LM258 series offers a slew rate of 0.3 V/μs with an input offset voltage of 7 mV and input offset current of 100 nA, making it reliable for both analog and digital signal handling. The device performs efficiently across a wide operating temperature range from -25°C to 85°C ensuring stable operation in diverse environments.
The amplifier's compact size (4.9mm x 3.91mm x 1.58mm) in a SOIC package facilitates easy integration on printed circuit boards for space constrained designs. It is commonly employed in instrumentation amplifiers, voltage and current amplification circuits, and various measurement and control systems.
Dual channel in an 8-pin SOIC package allows compact and efficient system design. 700 kHz gain bandwidth ensures good frequency response for many analog circuits. Wide voltage supply range enables use in diverse power environments.
Low input bias current and offset voltage improve signal fidelity. Suitable operating temperature range for industrial applications. Compact surface mount package optimizes PCB space.
This operational amplifier from Texas Instruments is ideally suited for applications in industrial control systems, laboratory instrumentation, consumer electronics, and other embedded circuits requiring precise and reliable amplification. Its combination of performance, packaging, and operating flexibility makes it a robust choice for general purpose signal conditioning needs.
Explore other Operational Amplifiers and electronic components at EnvMart for comprehensive solutions tailored to your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LM258D is 700 kHz, which allows for efficient signal amplification in various applications.
This model supports a supply voltage range from 5V to a maximum of 30V, making it versatile for different power environments.
The operational amplifier operates effectively within a temperature range of -25°C to 85°C, ensuring reliable performance in diverse conditions.
The dimensions of this operational amplifier are 4.9mm in length, 3.91mm in width, and 1.58mm in height, fitting compact spaces on PCBs.
The slew rate of the LM258D is 0.3 V/μs, which is suitable for applications requiring moderate speed in signal processing.
This operational amplifier features dual channels, allowing for multiple signal amplification needs in a single package.
The input offset voltage for this model is 7 mV, contributing to its precision in signal processing applications.
The LM258D is housed in an 8-pin SOIC surface mount package, facilitating easy integration onto printed circuit boards.
The output current for this operational amplifier is -10 mA, suitable for various electronic applications.
The input bias current for this operational amplifier is -300 nA, enhancing its precision in signal handling.
This operational amplifier is commonly used in instrumentation amplifiers, voltage and current amplification circuits, and various measurement and control systems.
The input offset current for the LM258D is 100 nA, which is essential for maintaining accuracy in signal amplification.
