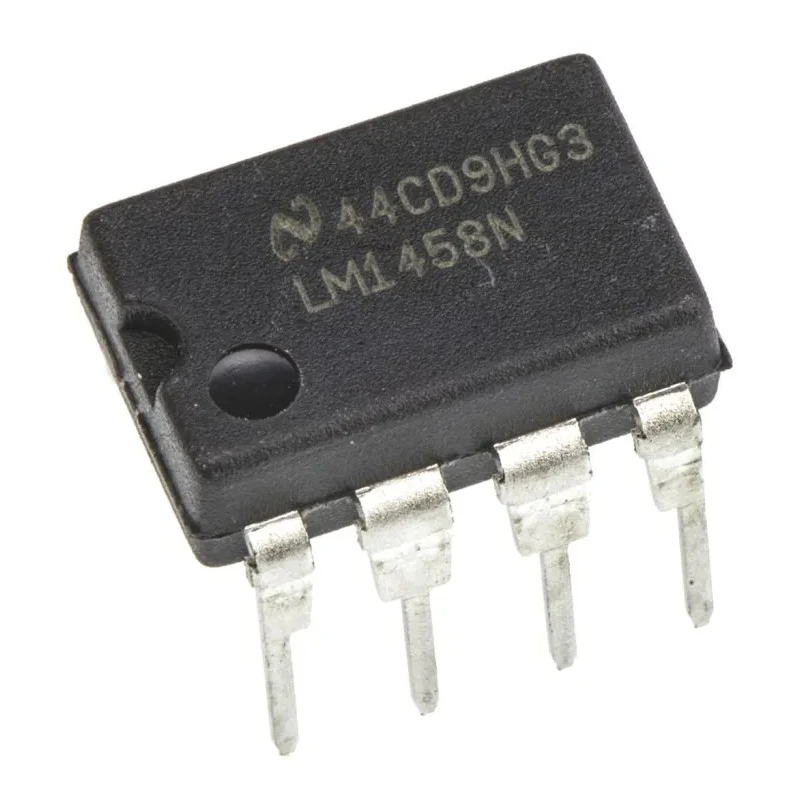

Texas Instruments Operational Amplifier 1 MHz 8-Pin 18V MDIP LM1458N/NOPB

Texas Instruments LM1458N/NOPB Operational Amplifier 1 MHz 8-Pin 18V MDIP is a dual-channel general purpose operational amplifier designed for a wide variety of electronic applications. It provides cost-effective performance for non-specialized tasks requiring precise analog signal amplification. The device supports through-hole mounting on PCBs via the 8-pin MDIP package, facilitating easy integration in industrial, laboratory, and educational electronics projects.

This operational amplifier features a gain bandwidth product of 1 MHz and operates across a wide supply voltage range from -18V to 18V, accommodating different power supply configurations. Its input bias current is as low as 500 nA, which ensures high precision when processing small signals, complemented by an input offset voltage of 6 mV. The device has a slew rate of 0.5 V/µs, providing stable response times suitable for audio processing, signal conditioning, and control systems.

The LM1458 series, to which this model belongs, is known for low power consumption and the capability to operate with input common-mode voltages including ground. This makes the LM1458N/NOPB especially useful in single-supply or dual-supply operational amplifier circuits. The operating temperature range of 0°C to 70°C makes it appropriate for most indoor environments, including electronic laboratories and industrial installations.

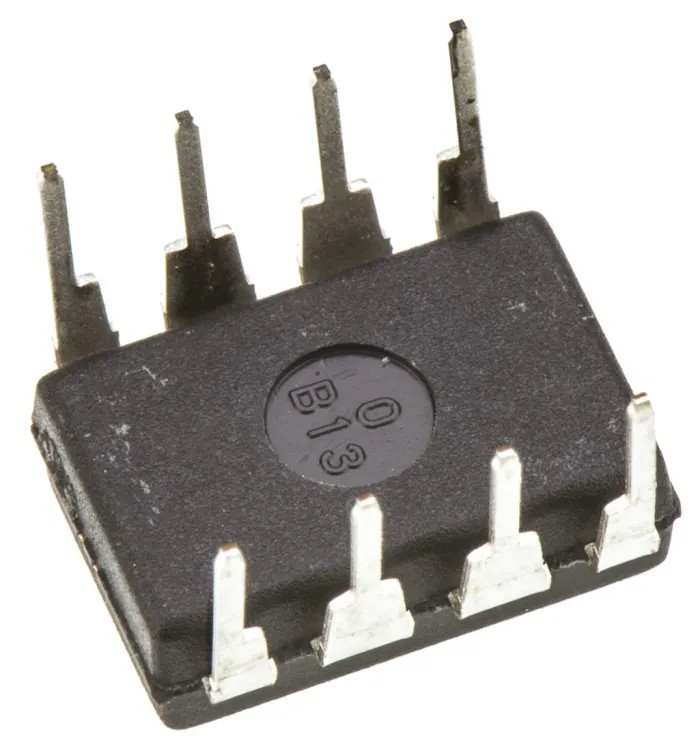

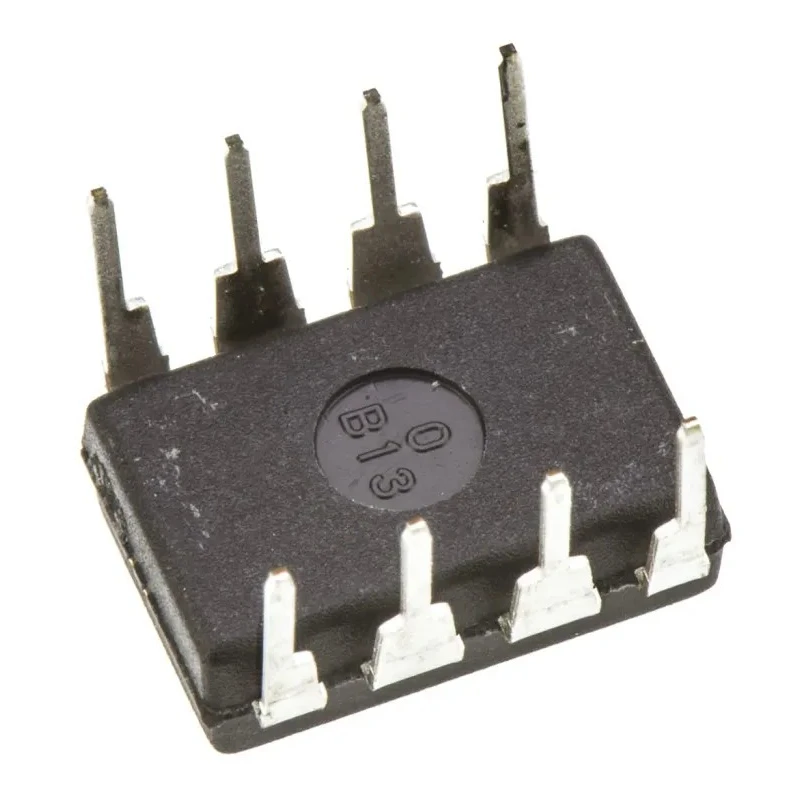

Physical dimensions of approximately 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height allow for compact circuit layouts. The component is rated for new condition and does not comply with automotive standards, making it suitable primarily for general-purpose electronics rather than automotive use.

Features a gain bandwidth product of 1 MHz ensuring reliable signal amplification. Operates with a supply voltage range from -18V to 18V for flexible circuit designs. Comes in an 8-pin MDIP package for through-hole mounting applications.

Equipped with low input bias current of 500 nA for accurate signal processing. Input offset voltage is 6 mV, minimizing distortion in analog signals. Slew rate of 0.5 V/µs for moderate speed response suitable for general purpose circuits.

Operating temperature range from 0°C to 70°C for standard environmental conditions. Dimensions approximately 9.27 mm length, 6.35 mm width, and 3.3 mm height. Includes two operational amplifier channels integrated in a single package.

This operational amplifier finds extensive use in industrial electronics, laboratory instrumentation, audio processing equipment, and educational projects focused on analog circuit design. Its versatility allows implementation in signal conditioning, filtering, and instrumentation amplifiers within measurement and control systems.
