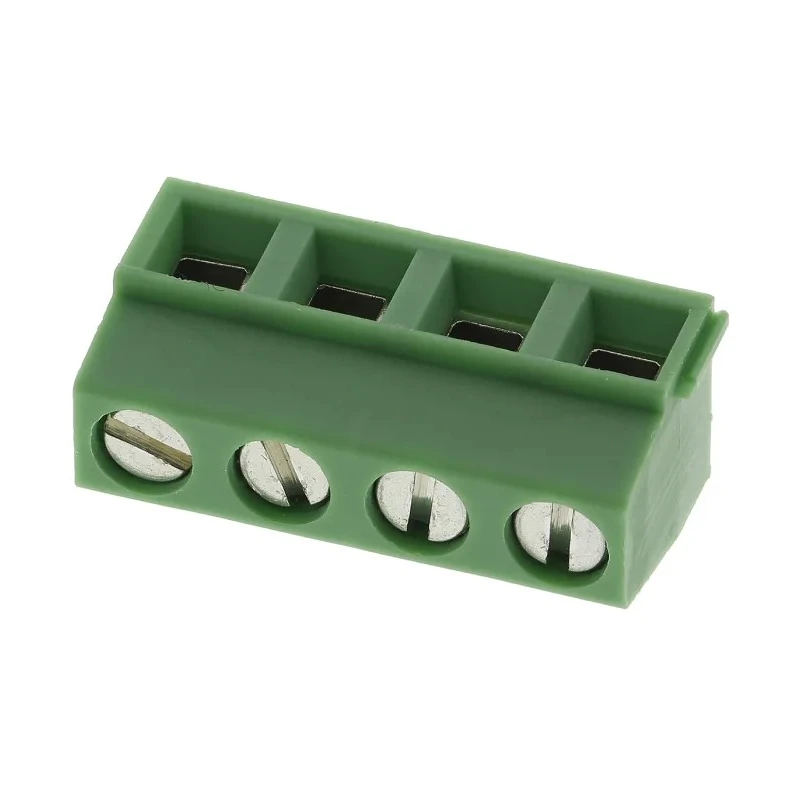

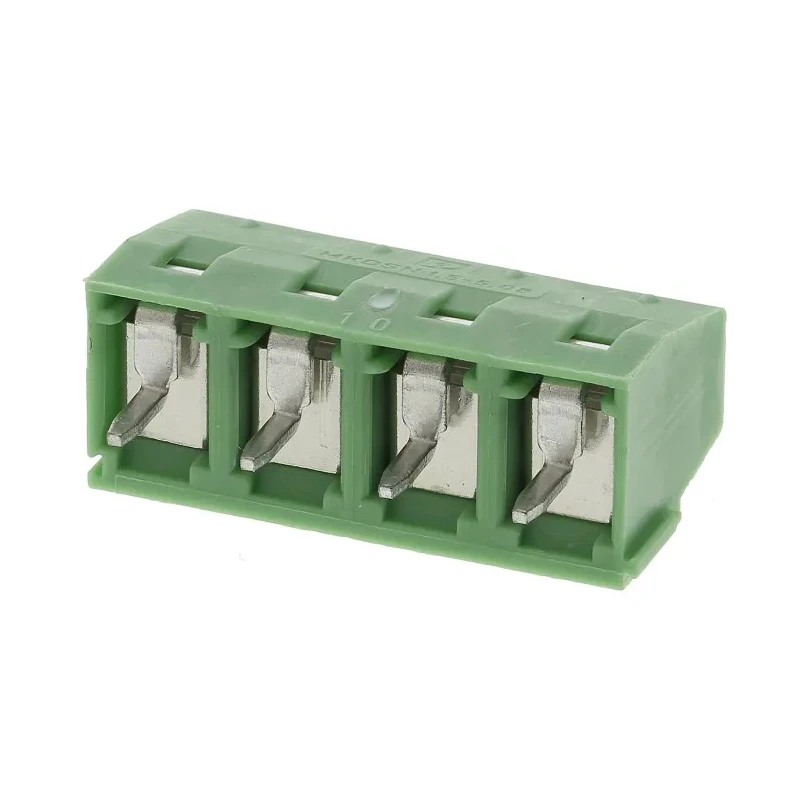

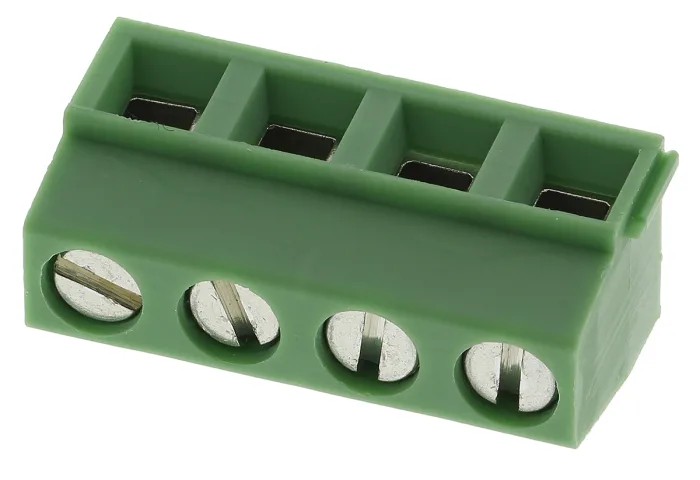

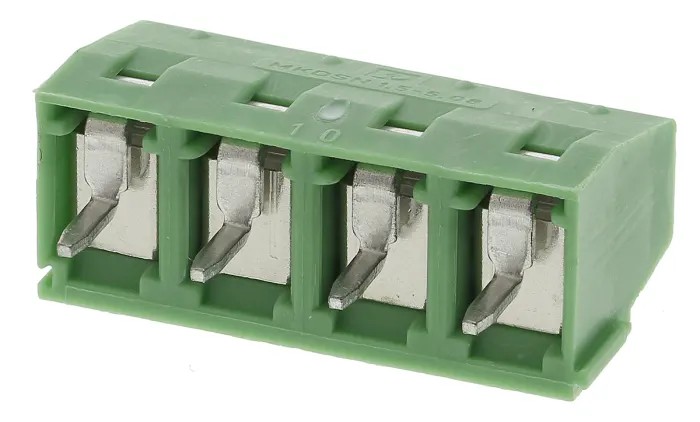

Phoenix Contact MKDSN 1.5/4-5.08 Series Straight PCB Terminal Block, 4 Contacts, 5.08 mm Pitch, 400 V, 8 A 1729144

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MKDSN 1.5/4-5.08 Series Straight PCB Terminal Block, 4 Contacts, 5.08 mm Pitch, 400 V, 8 A 1729144

Name: Phoenix Contact MKDSN 1.5/4-5.08 Series Straight PCB Terminal Block, 4 Contacts, 5.08 mm Pitch, 400 V, 8 A 1729144
Brand: PHOENIX CONTACT
SKU: 181589



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Phoenix Contact
Orientation	Straight
Current	8A
Model	1729144
Housing Material	Polyamide
Series	MKDSN 1.5/4-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	4

Key Features

Features screw connection with tension sleeve for secure and reliable wiring.
Supports connection of two conductors per contact for versatility.
Compact design optimizes space within electronic assemblies.
Maximum contact force reduces temperature rise during operation.
Suitable for wave soldering processes ensuring manufacturing efficiency.
Adaptable side latching allows combination of multiple terminal blocks.
Housing made of durable polyamide material.
Designed specifically for through-hole mounting on PCBs.

Product Description

Phoenix Contact 1729144 MKDSN 1.5/4-5.08 Series Straight PCB Terminal Block is a high-quality electrical connector designed for reliable and versatile PCB mounting applications. It features 4 contacts arranged in a single row with a standard 5.08 mm pitch, supporting current up to 8 A and voltage rating of 400 V. The terminal block is constructed from polyamide housing material and provides a straight orientation for ease of use and integration with printed circuit boards, primarily via through-hole mounting.

The terminal block utilizes screw connections with tension sleeves to ensure secure and durable electrical connections. Its compact design allows for space-saving on electronic assemblies, making it suitable for dense PCB layouts. The terminal block supports connection of two conductors per contact, providing flexibility in wiring configurations. Additionally, high contact force minimizes temperature rise, ensuring stable operation under electrical load.

The product is compatible with wave soldering processes, facilitating efficient manufacturing workflows. Adaptable side latching enables combining multiple terminal blocks to accommodate different position numbers as required. Its robust design is ideal for use in industrial automation systems, control cabinets, consumer electronics wiring, and mechanical engineering environments where signal transmission reliability is vital.

Features screw connection with tension sleeve for secure and reliable wiring. Allows connection of two conductors per contact for flexible wiring. Compact design saves space on PCB assemblies. Maximum contact force reduces heat generation during operation.

Suitable for wave soldering manufacturing processes. Adaptable side latching for combining terminal blocks. Durable polyamide housing material. Intended for through-hole mounting on printed circuit boards. Supports electrical use cases in industrial automation and control systems.

Made in Germany ensuring premium quality and reliability.

This Phoenix Contact MKDSN 1.5/4-5.08 PCB Terminal Block blends compactness, durability, and electrical performance for industrial electronics applications. For extensive selection of PCB Terminal Blocks and connectors, browse the Electronics Components category at EnvMart.
