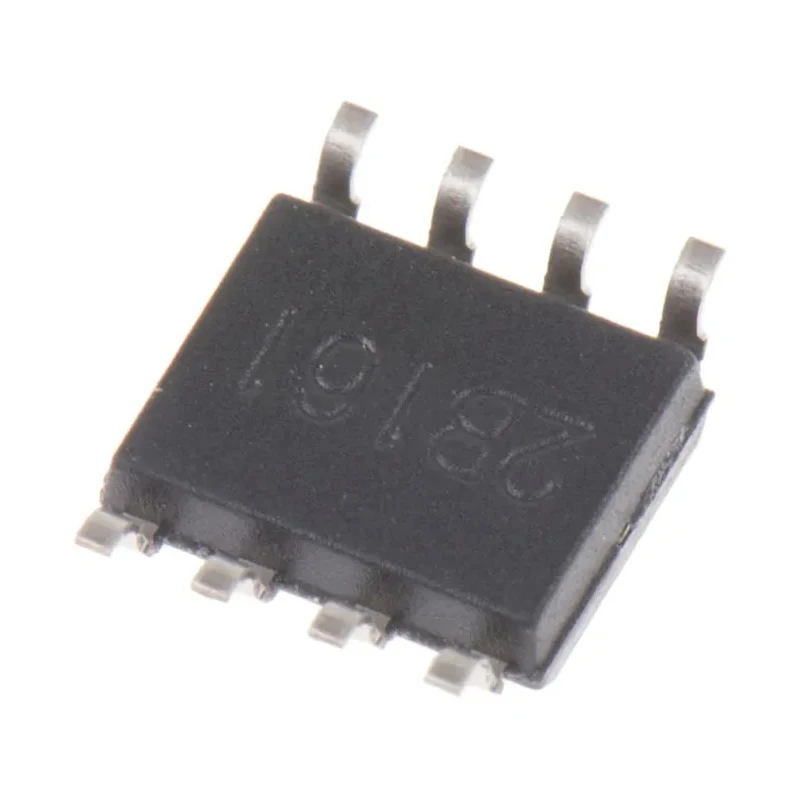

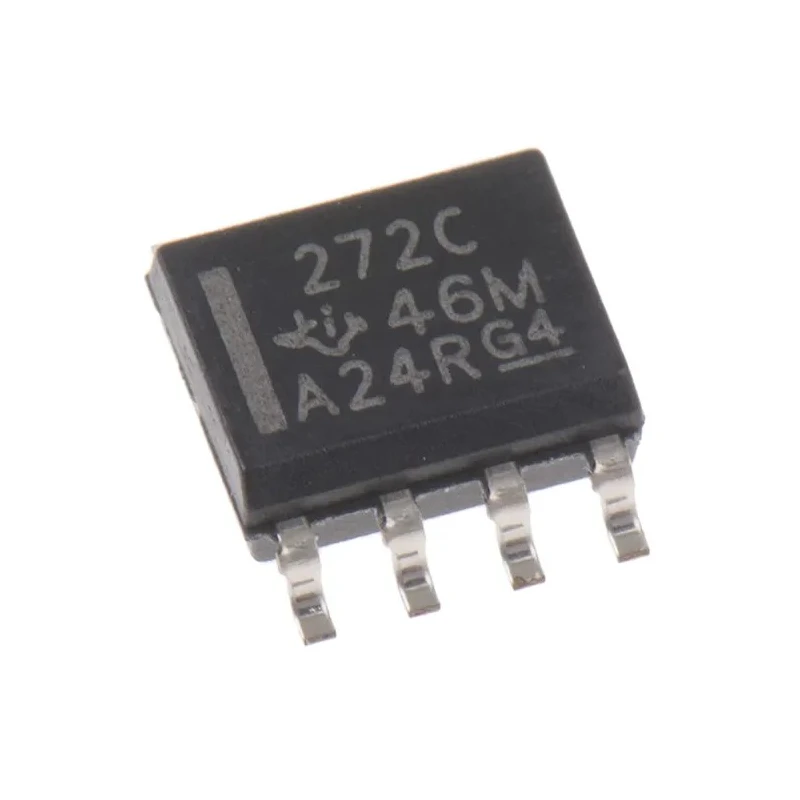

Texas Instruments Operational Amplifier 1.7 MHz 16V 8-Pin SOIC TLC272CD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | TLC272CD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | TLC272 |
| Output Current | 30mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.7MHz |
| Input Bias Current | 600 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 3.6V/μs |
| Input Offset Current | 300 pA |
Key Features
- Dual channel precision LinCMOS operational amplifier.
- Supports supply voltage from 5 V to 16 V for flexible power applications.
- Low input bias current of 600 pA ensuring accurate signal amplification.
- Slew rate of 3.6 V/μs enables fast response to input changes.
- Operating temperature range from 0°C to 70°C suitable for standard industrial environments.
- Output current capability of up to 30 mA for driving moderate loads.
- Input offset voltage of 12 mV and input offset current of 300 pA enhance precision.
- SOIC surface mount package eases PCB assembly and integration.
Product Description
Texas Instruments TLC272CD is a dual-channel precision LinCMOS operational amplifier featuring a gain bandwidth product of 1.7 MHz and housed in a compact 8-pin SOIC surface mount package. It operates over a supply voltage range of 5 V to 16 V with a maximum operating temperature of 70°C, making it suitable for a variety of industrial and electronic applications.
This operational amplifier delivers a low input bias current of 600 pA and an input offset voltage of 12 mV, ensuring high precision in low-level signal amplification. The slew rate of 3.6 V/μs provides quick response times for rapid signal changes.
Its small package dimensions (4.9 mm x 3.91 mm x 1.58 mm) support compact PCB designs while the maximum output current of 30 mA allows it to drive moderate loads reliably. The product is designed with no automotive standards but is widely used in industrial, electronic instrumentation, and power supply circuits.
Dual precision LinCMOS operational amplifier. Wide supply voltage range of 5 V to 16 V. Low input bias and offset currents for precision. Fast slew rate of 3.6 V/μs. Compact 8-pin SOIC surface mount package. Operating temperature from 0°C to 70°C.
Maximum output current of 30 mA. Small physical dimensions for PCB integration. No automotive standard compliance.
This operational amplifier from Texas Instruments is ideal for industrial machines, electronic circuit design, laboratory instrumentation, and general electronics manufacturing due to its balance of precision, speed, and compact form factor.
Explore our Electronics & Electricals category for a wide range of semiconductor amplifiers and Operational Amplifiers perfect for various applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLC272CD has a gain bandwidth product of 1.7 MHz, which allows it to effectively amplify signals at various frequencies.
This model operates within a temperature range of 0°C to 70°C, making it suitable for standard industrial environments.
The maximum supply voltage for the TLC272CD is 16V, providing flexibility for various power applications.
It can provide an output current of up to 30 mA, allowing it to drive moderate loads effectively.
The dimensions of this operational amplifier are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
This operational amplifier is housed in an 8-pin SOIC surface mount package, which facilitates easy PCB assembly.
The input bias current is 600 pA, which contributes to its precision in low-level signal amplification.
The slew rate of this model is 3.6 V/μs, enabling a fast response to input changes.
The input offset voltage is 12 mV, enhancing the precision of signal amplification.
It is suitable for various applications, including industrial machines, electronic circuit design, and laboratory instrumentation.
The input offset current for this operational amplifier is 300 pA, which aids in achieving high precision.
The minimum supply voltage for this operational amplifier is 5V, allowing it to operate effectively within a specified range.
