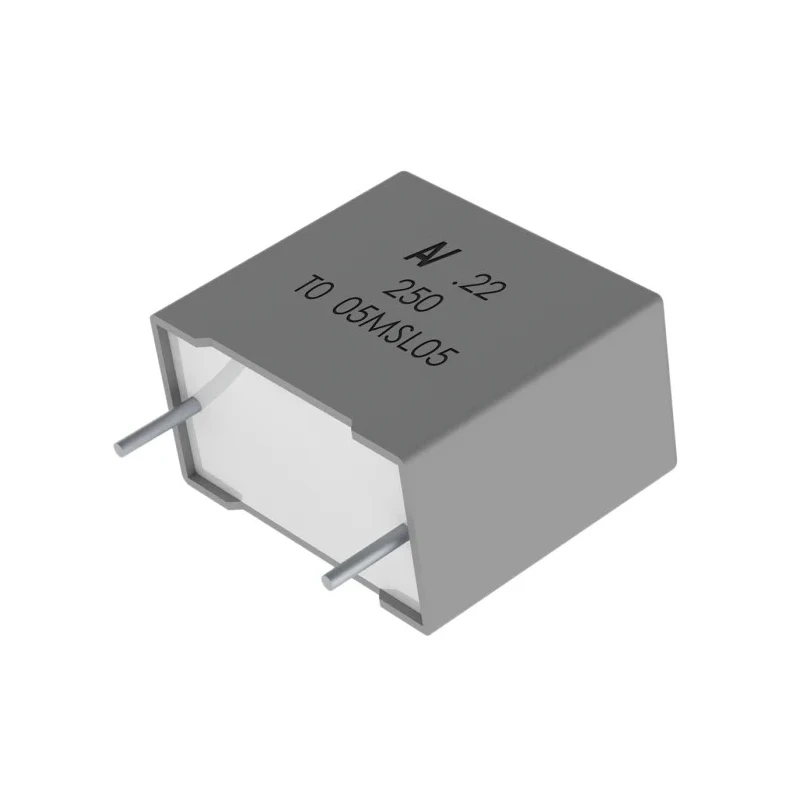

KEMET R60 Film Capacitor, ±5 % Tolerance, 220 nF Capacitance, 250 V DC, 160 V AC, Through Hole Mount R60IF3220AA6AJ

Free Delivery in India | Lowest Global Shipping Charges

KEMET R60 Film Capacitor, ±5 % Tolerance, 220 nF Capacitance, 250 V DC, 160 V AC, Through Hole Mount R60IF3220AA6AJ

Name: KEMET R60 Film Capacitor, ±5 % Tolerance, 220 nF Capacitance, 250 V DC, 160 V AC, Through Hole Mount R60IF3220AA6AJ
Brand: KEMET
SKU: 180980
Price: 20.22 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Capacitance Range	0.001 μF - 150.0 μF
Voltage Range	50 to 1000 V dc
Brand	KEMET
Height	11mm
Length	13mm
Model	R60IF3220AA6AJ
Packaging	Bag
Width	5mm
Mount Type	Through Hole
Series	R60
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	220nF
Minimum Operating Temperature	-55°C
Climatic category	55/105/56
Lead Length	25mm
Standards/Approvals	IEC 60286-2, RoHS, UL 94V-0
Package/Case	Plastic
Pin Count	2
Rated AC Voltage	160V ac
Rated DC Voltage	250V dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200
Capacitance tolerance	±5%, ±10%, ±20%
Lead Spacing	10.0 to 37.5 mm

Key Features

Designed with radial tinned wire leads for reliable electrical connection.
Housed in a self-extinguishing, solvent-resistant plastic case meeting UL 94V-0 standard.
Operates within a temperature range of -55°C to 105°C for diverse environments.
Lead pitch of 10 mm, lead length of 25 mm, with 0.6 mm lead diameter.
Complies with automotive standard AEC-Q200 for automotive use.
Capacitance tolerance is ±5 % with capacitance of 220 nF.
Suitable for blocking, coupling, decoupling, bypassing, and interference suppression.
Packaging complies with IEC 60286-2, supplied in bags for assembly efficiency.

Product Description

KEMET R60IF3220AA6AJ Film Capacitor is a high-quality electronic component designed for reliable performance in blocking, coupling, decoupling, and bypassing applications. This capacitor features a capacitance of 220 nF with a ±5 % tolerance and is rated for 250 V DC and 160 V AC voltages. It utilizes through hole mounting with a 10 mm lead pitch and 25 mm lead length.

The capacitor is constructed with radial tinned wire leads electrically welded to the contact layer and housed in a self-extinguishing, solvent-resistant plastic case made of thermosetting resin, conforming to UL 94V-0 flame retardant standards. Its operating temperature range from -55°C to 105°C ensures durability in demanding conditions, including automotive environments compliant with AEC-Q200 standards.

The series offers a wide voltage range from 50 to 1000 V DC and capacitance range spanning from 0.001 μF to 150 μF with tolerances of ±5%, ±10%, and ±20%. The R60IF3220AA6AJ is a versatile choice for low voltage circuits requiring stable capacitance for oscillator, timing, and interference suppression roles.

The capacitor features plastic packaging in bags ready for insertion into production machines to improve manufacturing efficiency. IEC 60286-2 standards compliance ensures quality packaging methods. Lead diameter measures 0.6 mm, and the capacitor's compact dimensions of 13 mm length, 5 mm width, and 11 mm height make it suitable for space-constrained boards.

Its climatic category of 55/105/56 supports use in varying environmental conditions. This component is RoHS compliant and aligns with IEC and UL safety standards.

Ideal for industrial electronics, automotive modules, and general-purpose electronic circuits, the KEMET R60IF3220AA6AJ Film Capacitor promises high reliability and long service life. Discover more components in the Film Capacitor category on EnvMart to fulfill all your component needs.
