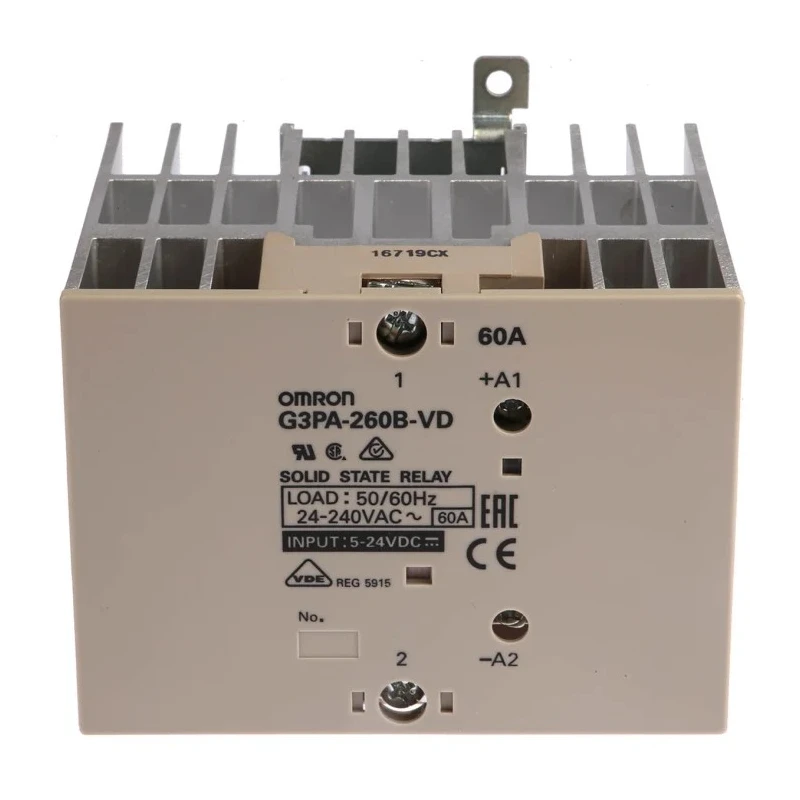

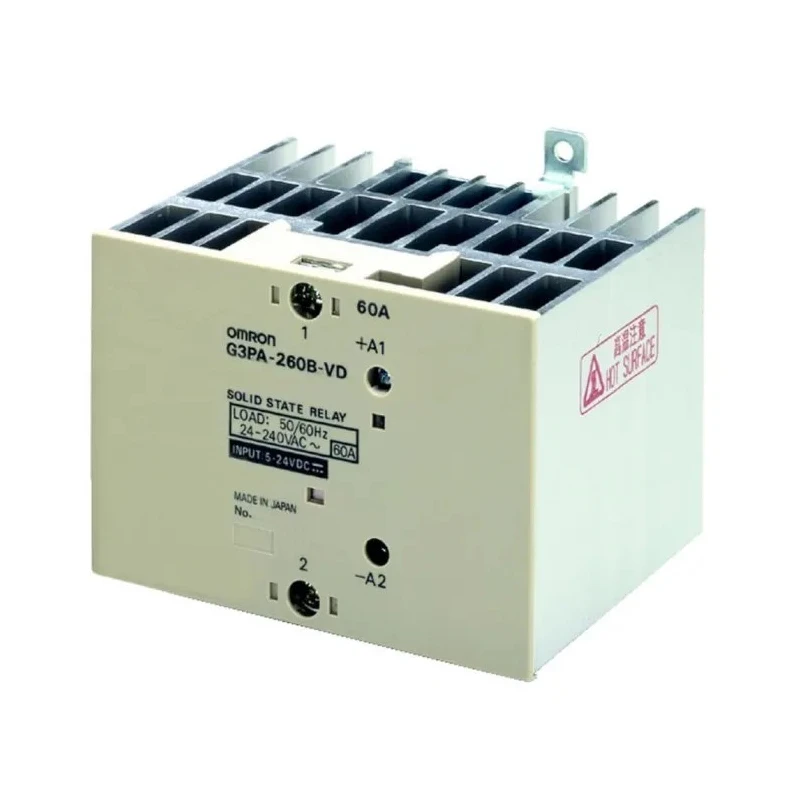

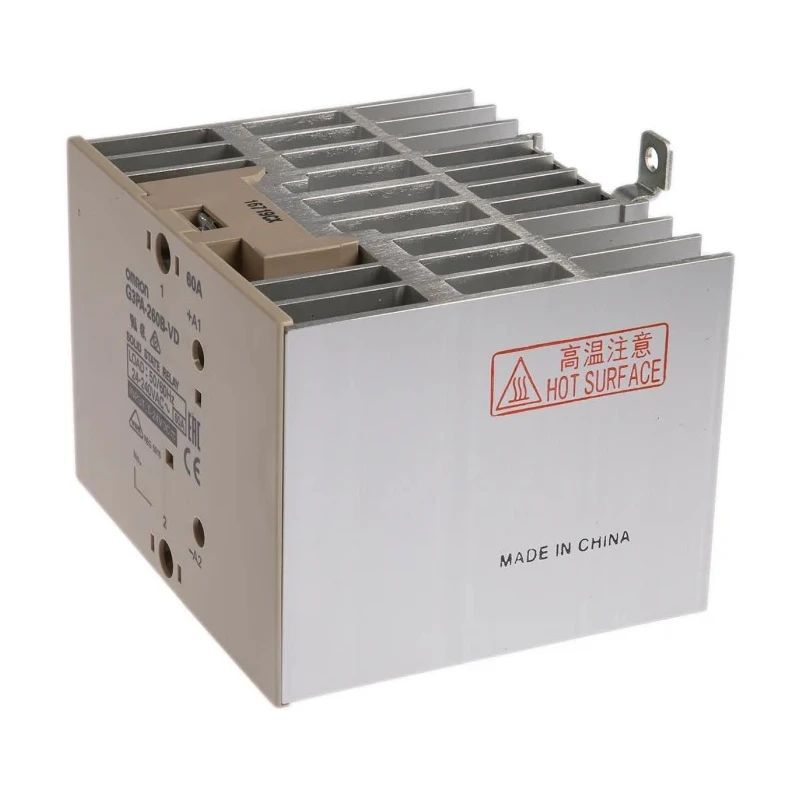

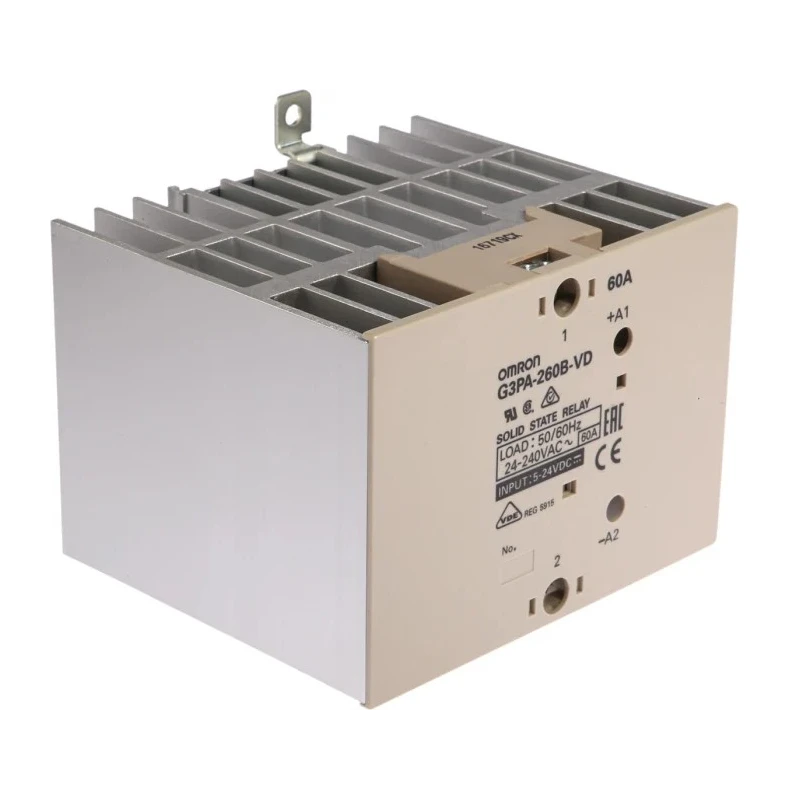

Omron Solid State Relay, DIN Rail Mount, 60A Load Current, 264V Maximum Load Voltage, Zero Cross Switching G3PA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 100mm |
| Length | 100mm |
| Model | G3PA |
| IP Rating | IP20 |
| Width | 100mm |
| Mount Type | DIN Rail |
| Output type | Triac |
| Series | G3PA |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | Quick Connect |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 60A |
| Standards/Approvals | CSA, UR, CE |
| Maximum Load Voltage | 264V |
| Minimum Load Voltage | 19V ac |
| Minimum Control Voltage | 5V |
| Maximum Control Voltage | 30V |
| Off State Leakage Current | 20mA |
| Omron Solid State Relay, 40 A Load, Chassis Mount, 264 V Load, 30 V ControlBrand | Omron |
| Solid state relay,80A 48-660VacBrand | Crydom |
Key Features
- Zero cross switching reduces electromagnetic interference to enhance system stability.
- Screw terminals ensure secure and reliable electrical connections.
- Robust dielectric strength of 4000 V AC between input and output.
- Built-in triac output ensures efficient and safe switching of AC loads.
- Compact dimensions of 100 x 100 x 100 mm facilitate versatile DIN rail or surface mounting.
- Operates under extreme environmental temperatures from -30°C to 80°C.
- Rated IP20 for protection against solid objects and safe use in industrial environments.
- Compliant with CSA, UL, and CE standards for safety and performance.
Product Description
Omron G3PA-260B-VD DC5-24 is a high-performance solid state relay designed for industrial power control applications. It supports a maximum load current of 60 amperes and handles voltage up to 264 V AC, making it suitable for heavy-duty switching tasks in automation systems.
The device features zero cross switching technology, which minimizes electromagnetic interference and prolongs the lifespan of both the relay and connected equipment. The output employs a built-in triac, providing stable and maintenance-free switching of AC loads.

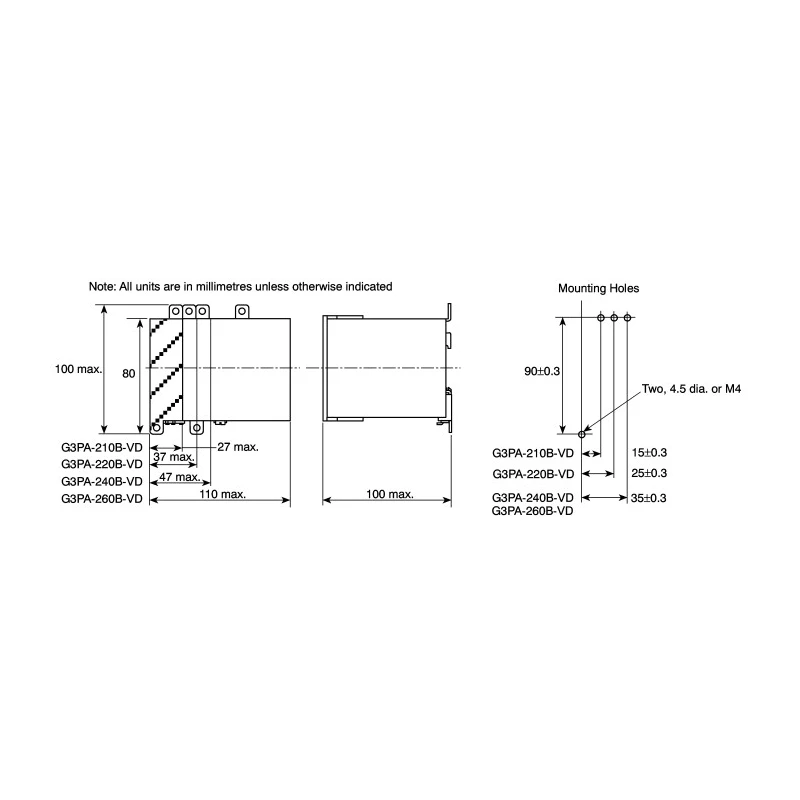

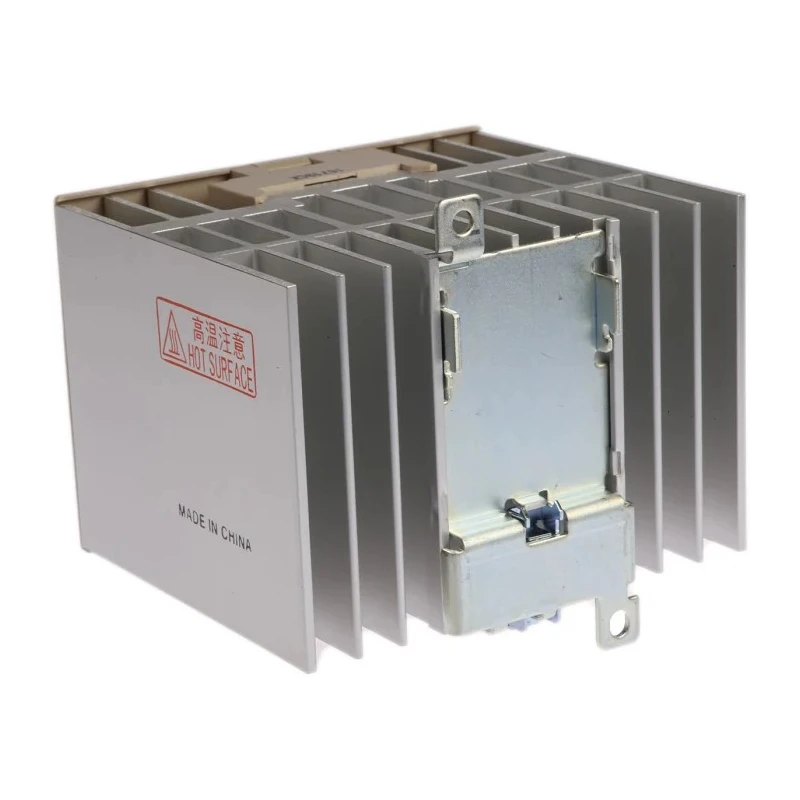

Compact in dimensions (100 mm width, length, and height), this relay supports DIN rail mounting as well as surface mount options, allowing flexible installation in control panels or machinery.
Constructed for demanding industrial environments, it operates reliably from -30°C to 80°C and has an IP20 rating for protection against ingress of solid objects. Quick connect screw terminals ensure secure and vibration-resistant electrical connections.
The solid state relay complies with international safety standards including CSA, UL, and CE, ensuring dependable operation in industrial automation, heating element control, machinery power modulation, and other applications requiring reliable relay control.
Zero cross switching reduces electromagnetic interference to enhance system stability. Screw terminals ensure secure and reliable electrical connections. Robust dielectric strength of 4000 V AC between input and output. Built-in triac output ensures efficient and safe switching of AC loads.
Compact 100 x 100 x 100 mm dimensions for versatile DIN rail or surface mounting. Wide operating temperature range from -30°C to 80°C for harsh industrial conditions. IP20 rated for protection against solid objects and safe industrial use.
Certified to CSA, UL, and CE standards for safety and quality.
This Omron solid state relay is essential for industrial automation systems, manufacturing process control, HVAC applications, and any scenario requiring reliable AC load switching. Explore more products in Solid State Relay category at EnvMart for complete automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 60 amperes, making it suitable for heavy-duty switching tasks in industrial applications.
This relay can handle a maximum load voltage of 264 V AC, allowing it to be used in various automation systems.
It employs zero cross switching technology, which minimizes electromagnetic interference and enhances system stability.
The dimensions of this unit are 100 mm in width, length, and height, allowing for versatile installation options.
This solid state relay operates reliably within a temperature range of -30°C to 80°C, suitable for harsh industrial environments.
The relay has an IP20 rating, providing protection against solid objects, making it safe for use in industrial environments.
It features quick connect screw terminals, ensuring secure and reliable electrical connections.
This model complies with CSA, UL, and CE standards, ensuring safety and performance in industrial applications.
The minimum control voltage required is 5 V, which allows for a range of control options in various applications.
The output type is a triac, providing efficient and safe switching of AC loads.
It has a robust dielectric strength of 4000 V AC between input and output, ensuring reliable operation under high voltage conditions.
Yes, this solid state relay is designed for DIN rail mounting, as well as surface mounting, offering flexible installation options.
