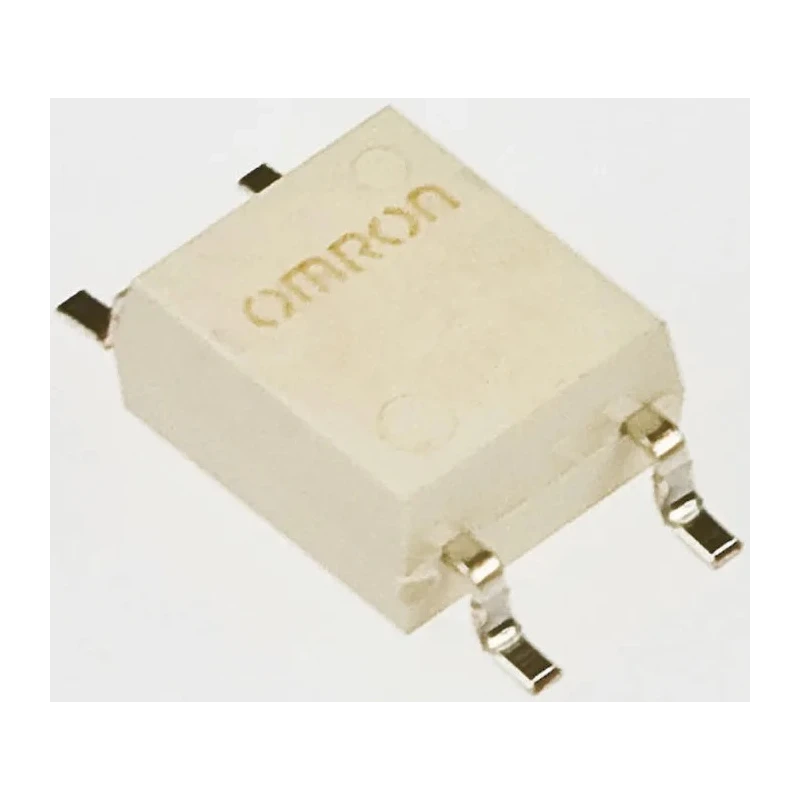

Omron Solid State Relay Surface Mount 90 mA Load 350 V Load 1.3 V Control G3VM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 1.9mm |
| Length | 3.9mm |
| Model | G3VM |
| Width | 6.4mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | G3VM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 85pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | DC Switching |
| Maximum Load Current | 90mA |
| Standards/Approvals | UL, RoHS, EN |
| Maximum Load Voltage | 350V |
| Minimum Load Voltage | 0V ac |
| Maximum Control Voltage | 1.3V |
Key Features
- Provides maintenance-free MOSFET output operation.
- Surface mounted PCB terminal for easy integration.
- SPST normally closed contact configuration.
- Operating temperature range from -40°C to 85°C.
- High-speed switching with 1 ms ON and 3 ms OFF times.
- Low leakage current of 1000 nA when the relay is open.
- Dielectric strength of 1500 Vrms ensures robust isolation.
- Compact SOP package with dimensions 3.9 mm length, 6.4 mm width, and 1.9 mm height.
Product Description
Omron G3VM-353G Solid State Relay is a high-performance MOSFET-based device designed for compact and maintenance-free switching applications. It features a surface mount PCB terminal for straightforward assembly, suitable for industrial, communication, and measurement equipment. This relay delivers a maximum load current of 90 mA and supports load voltages up to 350 V, with a low control voltage requirement of 1.3 V, affording efficient DC switching capability.
The G3VM-353G solid state relay is constructed in a SOP package with compact dimensions of 3.9 mm length, 6.4 mm width, and 1.9 mm height, enabling space-saving PCB design. It operates reliably within a broad temperature range from -40°C to 85°C and demonstrates high insulation with dielectric strength of 1500 Vrms, ensuring electrical robustness in demanding environments.
High-speed switching characteristics of 1 ms turn-ON and 3 ms turn-OFF times provide precise control of analog signals. The device maintains a low leakage current of up to 1000 nA when open, minimizing power losses. It is suitable for a diverse range of industrial applications including communication equipment, security systems, amusement devices, data logging systems, and broadband technologies.
Features MOSFET output for low ON resistance and capacitance. Surface mounted PCB terminals for efficient mounting. Single pole single throw normally closed (SPST-NC) contact form. Wide operating temperature window of -40°C to 85°C.
Compliance with RoHS, UL, and EN standards certify quality and safety. Compact form factor supporting high-density PCB layouts. Excellent shock resistance and silent operation ensure durability. Designed for switching minute analog signals in AC and DC environments.
Ideal for industrial automation, telecommunications, and security equipment. Set contains 1 Pc Omron G3VM-353G Solid State Relay. Explore the extensive range of Solid State Relays in the Electronics & Electricals category on EnvMart for advanced automation and signal conditioning solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 90 mA.
It operates within a temperature range from -40°C to 85°C.
This relay features a single pole single throw normally closed (SPST-NC) contact configuration.
The maximum load voltage supported by this relay is 350 V.
The dimensions of the G3VM relay are 3.9 mm in length, 6.4 mm in width, and 1.9 mm in height.
The control voltage requirement for this model is 1.3 V.
This relay uses surface mounting with PCB terminals for easy integration.
The switching function of this relay is DC switching.
The dielectric strength of the G3VM relay is 1500 Vrms, ensuring robust isolation.
The relay maintains a low leakage current of up to 1000 nA when it is open.
This relay complies with UL, RoHS, and EN standards, certifying its quality and safety.
It is suitable for a diverse range of applications including industrial automation, telecommunications, and security equipment.
