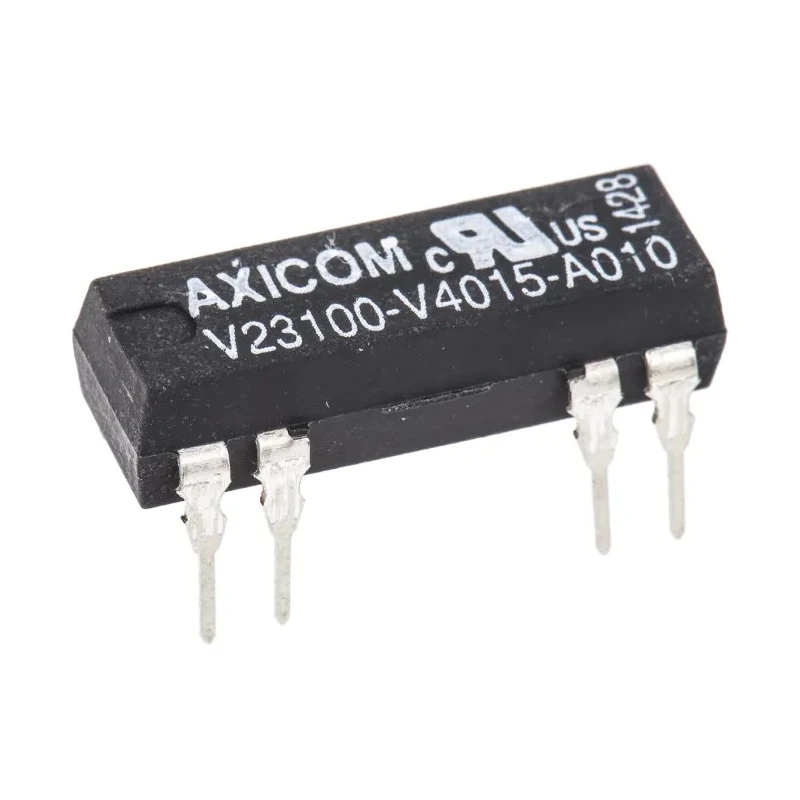

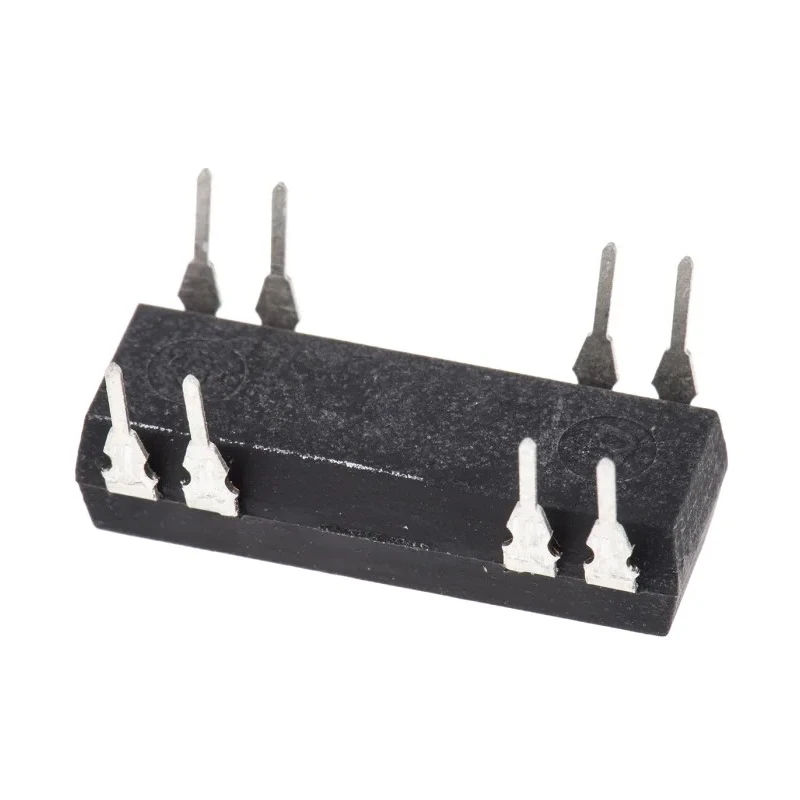

TE Connectivity PCB Reed Relay, 15V DC Coil, SPST Contact, 200V DC Max, 1A Max, 2000 Ω Coil Resistance V23100V4015A10
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.1mm |
| Length | 19.3mm |
| Model | V23100V4015A10 |
| Operating Time | 0.75ms |
| Mount Type | PCB |
| Series | V23100V4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 150mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 2000Ω |
| Coil Power | 113mW |
| Isolation Coil To Contact | 1.5kV dc |
Key Features
- The coil power consumption is only 113mW, enabling efficient operation.
- It offers a maximum contact voltage rating of 200V DC and a maximum current of 1A.
- The coil resistance measures 2000 ohms, providing stable performance.
- Designed for PCB mounting with solder terminal type for secure connection.
- Operates within a temperature range of -40°C to 85°C, suitable for diverse environments.
- The relay switching time is approximately 0.75 milliseconds, allowing fast response.
- Built with low contact resistance of 150 milliohms to ensure signal integrity.
- Features a robust isolation coil to contact rating of 1.5kV DC for reliability.
Product Description
TE Connectivity V23100V4015A10 PCB Reed Relay is a high-quality monostable relay designed for industrial, electrical, and automation applications. It operates with a 15V DC coil and offers a single pole single throw (SPST) contact configuration, ideal for precise switching tasks on printed circuit boards.
This relay is part of the DLR series, featuring low contact noise and low thermoelectric voltage for reliable signal switching. Its coil power consumption is low at 113mW, with a coil resistance of 2000 Ω, ensuring efficient energy use.
The device has a maximum switching voltage of 200V DC and can handle currents up to 1 ampere, making it suitable for various electronic control circuits. Rated for operation between -40°C and 85°C, this relay supports demanding environmental conditions commonly encountered in industrial and manufacturing setups.
With a fast operating time of 0.75 milliseconds, it ensures rapid switching responses. The relay also provides excellent isolation between coil and contacts up to 1.5kV DC, enhancing durability and safety in control systems.

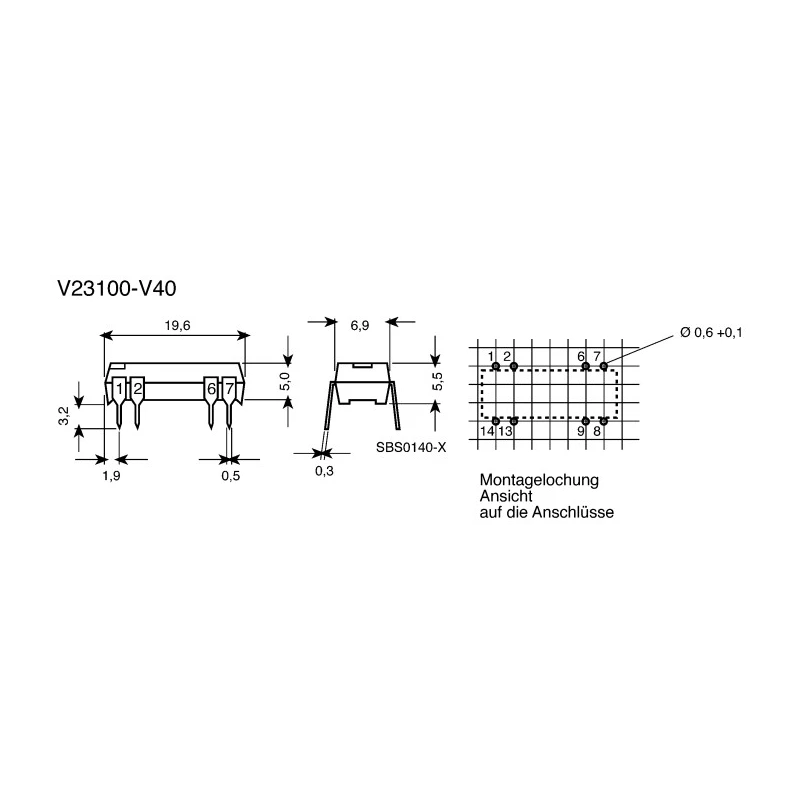

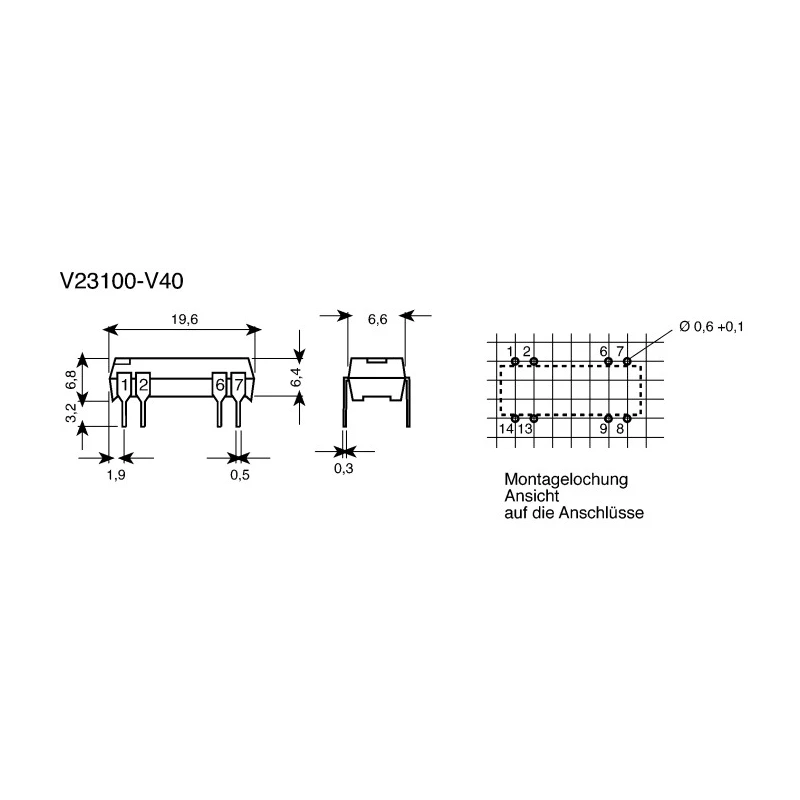

Its compact physical dimensions of 19.3mm length and 5.1mm height enable easy integration in tight PCB layouts. The relay uses solder terminals for mounting, guaranteeing solid and reliable electrical connections.

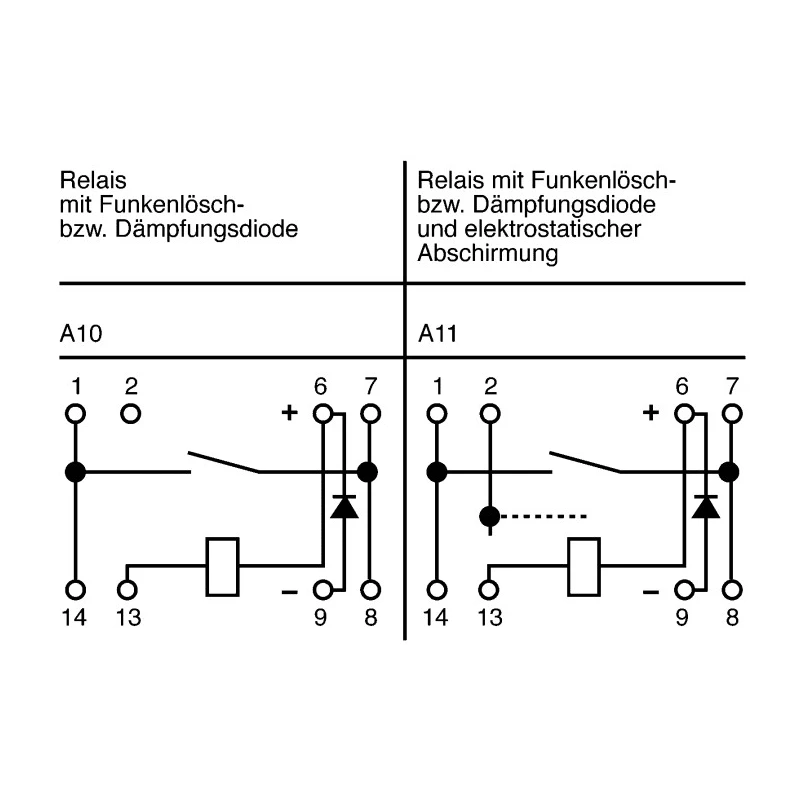

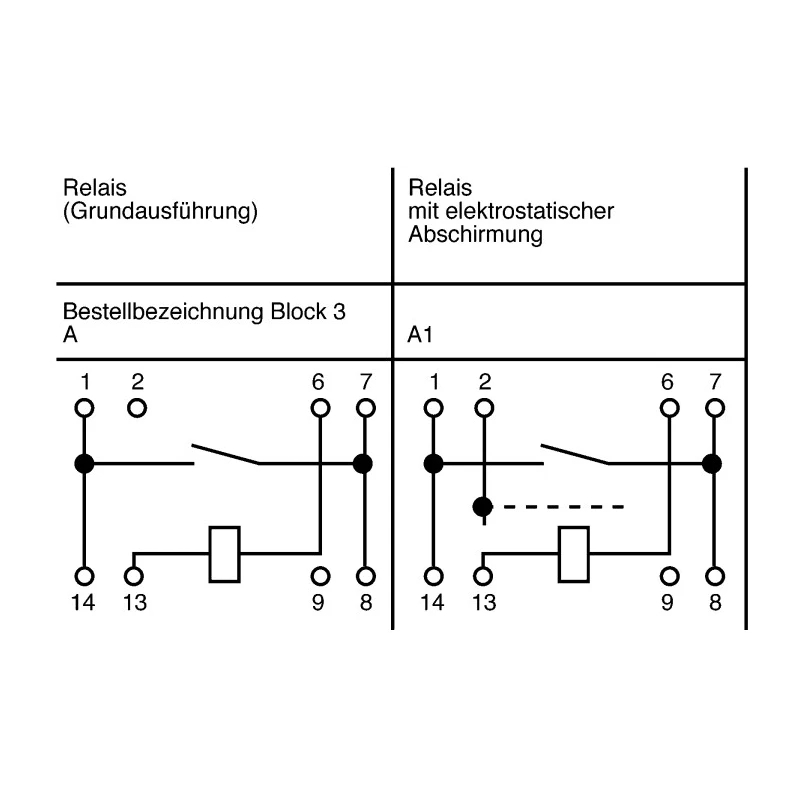

This PCB Reed Relay does not support latching and is washproof, making it suitable for pushdown switch installations with a 2.54 mm pitch. Available with options for electrostatic shielding and spark protection, this relay contributes to improved performance and longevity.
The coil power is 113mW for energy efficient operation. Coil resistance of 2000 Ω ensures stable coil current. SPST contact configuration for simple switch control. Isolation coil to contact rating of 1.5kV DC for electrical safety.
Compact size: 19.3mm length and 5.1mm height for space saving. Operating temperature range from -40°C to 85°C for versatility. Operating time of 0.75 ms for fast switching. Contact rating of 200V DC maximum voltage and 1A current.
Low contact resistance of 150 mΩ to maintain signal quality. Washproof and suitable for pushdown switch installation.
Suitable for use in industrial electronic equipment, automation systems, signal conditioning, measurement devices, and PCB-based electronic assemblies. The TE Connectivity brand is recognized for precision and reliability in electrical component manufacturing.
Explore more products in the Reed Relay category for comprehensive relay solutions and browse TE Connectivity components on EnvMart for trusted industrial-grade electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil power consumption is 113mW, enabling efficient operation.
It has a maximum contact voltage rating of 200V DC.
This relay can handle a maximum current of 1A.
The coil resistance measures 2000 ohms, providing stable performance.
It operates within a temperature range of -40°C to 85°C, suitable for diverse environments.
The relay switching time is approximately 0.75 milliseconds, allowing for fast response.
It features a single pole single throw (SPST) contact configuration.
This model is designed for PCB mounting with solder terminals for secure connection.
The contact resistance is 150 milliohms, ensuring signal integrity.
It provides excellent isolation with a coil to contact rating of 1.5kV DC.
This relay is UL approved, indicating compliance with safety standards.
It is suitable for industrial electronic equipment, automation systems, signal conditioning, and measurement devices.
