Nexperia 1.33 V Zener Diode Single 365 mW 5% Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C33YL

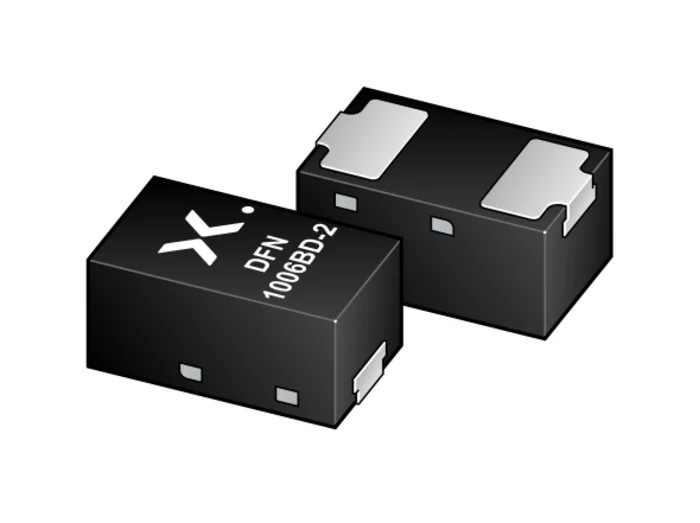

Nexperia BZX8850S-C33YL is a high-precision 33 V Zener Diode designed for low current voltage regulation in electronic circuits, featuring a nominal Zener voltage of 33 V with 5% tolerance and maximum power dissipation of 365 mW. It comes in a compact, leadless DFN1006BD-2 surface mount package with 2 pins, ideal for advanced PCB assemblies requiring space efficiency and robust performance.

This diode is specifically engineered for low bias conditions with a test current of just 50 µA, making it suitable for portable and battery-powered applications demanding stable voltage regulation. Its ultra-small dimensions (height 0.47 mm and length 1 mm) complement modern miniaturized electronic designs.

Operating reliably over a broad temperature range from -55°C up to 150°C, the BZX8850S-C33YL diode offers durability under harsh industrial conditions. Its maximum reverse leakage current of 50 nA and maximum Zener impedance of 325 Ω contribute to minimal energy loss and efficient voltage regulation. Compliance with the automotive standard AEC-Q101 assures suitability for automotive and other high-reliability sectors.

Key properties include a voltage temperature coefficient of 27.4 mV/K and a robust construction enabling this device to serve as a reliable voltage regulator in industrial, automotive, laboratory, construction, and consumer electronics applications. The device supports a working voltage range nominally from 1.8 V to 75 V and is designed for surface mounting to facilitate automated manufacturing processes.

Single diode configuration designed for voltage regulation applications. Maximum power dissipation rating of 365 milliwatts for reliable performance. Nominal 33 V Zener voltage with ±5% tolerance ensures stable voltage regulation.

Surface mount package type DFN1006BD-2 allows compact PCB designs. Low test current of 50 microamperes suitable for low bias and portable battery-powered devices. Operating temperature range from -55°C to 150°C for wide environmental conditions.

Maximum reverse leakage current of 50 nanoamperes minimizes leakage losses. Complies with automotive standard AEC-Q101 for quality and reliability. Ultra-small form factor height 0.47 mm and length 1 mm for space-constrained applications.

Voltage temperature coefficient of 27.4 mV/K ensures stable operation across temperatures.

This Nexperia Zener diode is essential for voltage regulation in sensitive electronic devices and industrial machinery. Explore more products from the Zener Diodes category to find compatible components for your next project.
