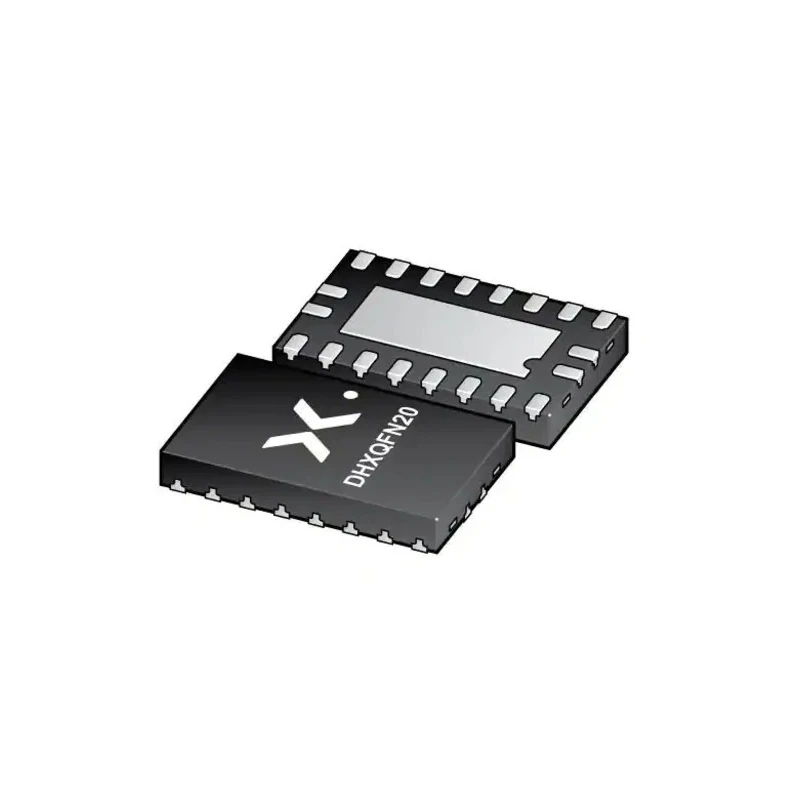

Nexperia 10-Channel Octal Buffer & Line Driver 3 State, 20-Pin DHXQFN20 74LVC244ABZX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 480μm |
| Length | 3.2mm |
| Model | 74LVC244ABZX |
| Width | 2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74LV |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | DHXQFN20 |
| Minimum Operating Temperature | -40°C |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 10 |
| Standards/Approvals | JEDEC, RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LV |
| Logic Function | Buffer |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
Key Features
- Offers 10 channels for versatile buffering and driving applications.
- Features a 20-pin DHXQFN surface mount package for compact PCB design.
- Operates with minimum supply voltage of 1.65V up to a maximum of 3.6V.
- Includes Schmitt trigger input for tolerance to slower input signal transitions.
- Outputs include 3-state logic for high impedance when disabled.
- Supports wide temperature range from -40°C to 125°C for industrial environments.
- Designed to interface easily with 3.3V and 5V logic families.
- Complies with JEDEC and RoHS standards ensuring quality and environmental compliance.
Product Description
Nexperia 74LVC244ABZX is a 10-channel octal buffer and line driver IC with 3-state outputs, housed in a 20-pin DHXQFN package designed for surface mounting.
This buffer/line driver integrates two output enables, each controlling half of the outputs, enabling flexible control of line driving in mixed-voltage digital circuits. It supports operation over a supply voltage range from 1.65V to 3.6V, making it suitable for low-voltage and general-purpose applications.
Inputs employ Schmitt-trigger technology to enhance noise immunity and ensure reliable logic transitions, especially with slower input rise and fall times. The device is capable of direct interfacing with TTL-level inputs and integrates overvoltage tolerant inputs up to 5.5V.
Its wide operating temperature range from -40°C to 125°C and compliance with JEDEC and RoHS standards make it reliable for industrial, electronic, and power & connector semiconductor applications.
Provides 10 buffer and line driver channels to support various digital interfacing needs. Utilizes advanced 3-state outputs allowing for high-impedance states and bus sharing. Compact 20-pin DHXQFN package supports modern surface mount technology.
Fits well into mixed-voltage environments (3.3V and 5V logic). Schmitt-trigger inputs ensure stable signal processing even with noise or slow edges. Wide temperature and voltage ranges facilitate usage in diverse electronic industries.
Meets quality and environmental standards such as RoHS and JEDEC certifications. This octal buffer and line driver is ideal for electronic components in computing, communications, industrial controls, and power management systems.
Explore more semiconductor interface ICs and Line Interface ICs for your industrial or electronic manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 1.65V to 3.6V.
It provides 10 channels for versatile buffering and driving applications.
It employs Schmitt trigger inputs, which enhance noise immunity and ensure reliable logic transitions.
The maximum operating temperature is 125°C, making it suitable for industrial environments.
This model is housed in a 20-pin DHXQFN package designed for surface mounting.
It features 3-state outputs, allowing for high impedance when disabled, which is useful for bus sharing.
It complies with JEDEC and RoHS standards, ensuring quality and environmental compliance.
The minimum operating temperature is -40°C, allowing for use in a variety of conditions.
The height is 480μm, and the width is 2mm, facilitating compact PCB design.
The maximum high-level output current is -24mA.
It is designed to interface easily with both 3.3V and 5V logic families.
The input type is Schmitt Trigger, which helps in tolerating slower input signal transitions.
