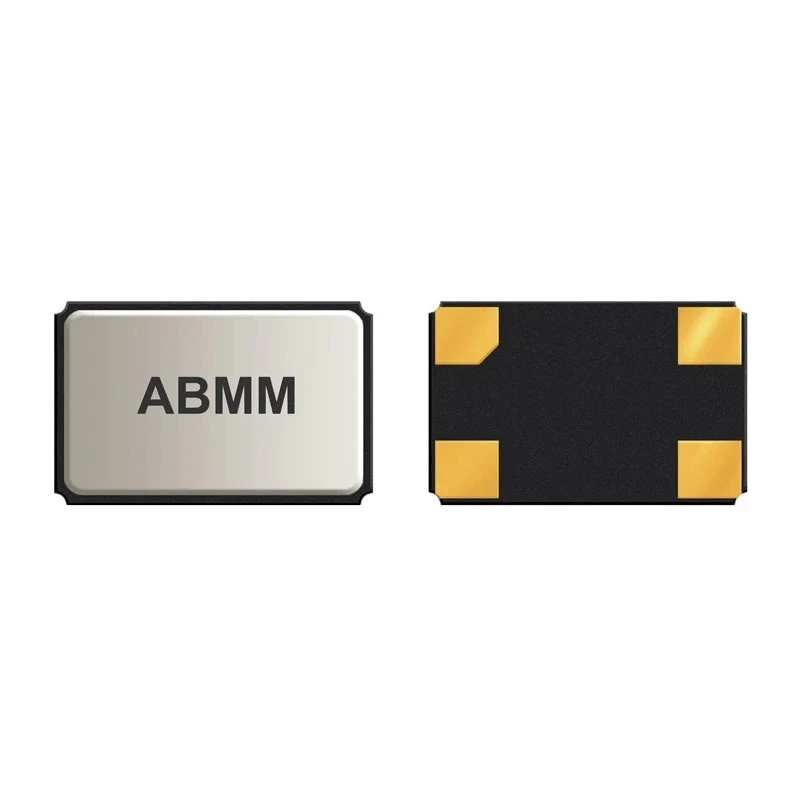

Abracon 16 MHz Crystal Unit Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ±50 ppm Frequency ABMM-16.000MHZ-B2-T

Abracon ABMM-16.000MHZ-B2-T 16 MHz Crystal Unit Surface Mount 4-Pin device presents a reliable solution for electronic oscillation requiring stable frequency performance. This crystal unit is designed for use in various industrial and commercial electronics applications including computers, modems, microprocessors, communication devices, test equipment, and PCMCIA cards.

The unit offers a standard frequency of 16 MHz with a frequency tolerance and stability rating of ±50 ppm, ensuring precise timing control over its operating range of -10°C to 60°C. Its construction as a surface mount component with a low profile height of 1.3 mm optimizes PCB space efficiency. The package measures 7 mm in length and 5 mm in width.

It features a load capacitance of 18 pF and an equivalent series resistance (ESR) of 50 Ω, characteristics that contribute to maintaining signal integrity and minimizing electrical noise in circuit operations. Manufactured to meet RoHS compliance, this crystal unit supports environmentally safe manufacturing practices.

The product is supplied in tape and reel packaging, facilitating automated insertion into assembly lines, thereby improving production efficiency and throughput. Its AT-strip cut design ensures a tight tolerance and stable oscillation frequency suitable for high quality electronic systems.

This crystal unit is ideal for use in a wide scope of electronic products, including industrial machines, laboratory instruments, telecommunication equipment, and computing hardware, supporting both development and manufacturing sectors effectively.

Operates at 16 MHz standard frequency with ±50 ppm tolerance. Surface mount type with a compact 4-pin package design. Low height of 1.3 mm to save board space. Load capacitance is 18 pF for proper circuit matching. Series resistance of 50 Ω for signal stability.

Suitable operating temperature range from -10°C to 60°C. Complies with RoHS environmental standards. Packaged in tape and reel for automated assembly line integration. AT-strip cut construction offers tight frequency tolerance and stability.

Applications include computers, modems, microprocessors, and communications devices. Explore similar Crystal Units and other electronic components at EnvMart for all your industrial and commercial electronic assembly needs.
