Abracon 25 MHz MEMS Oscillator 4-Pin Surface Mount ±50 ppm ASDM1-25.000MHZ-LC-T

Free Delivery in India | Lowest Global Shipping Charges

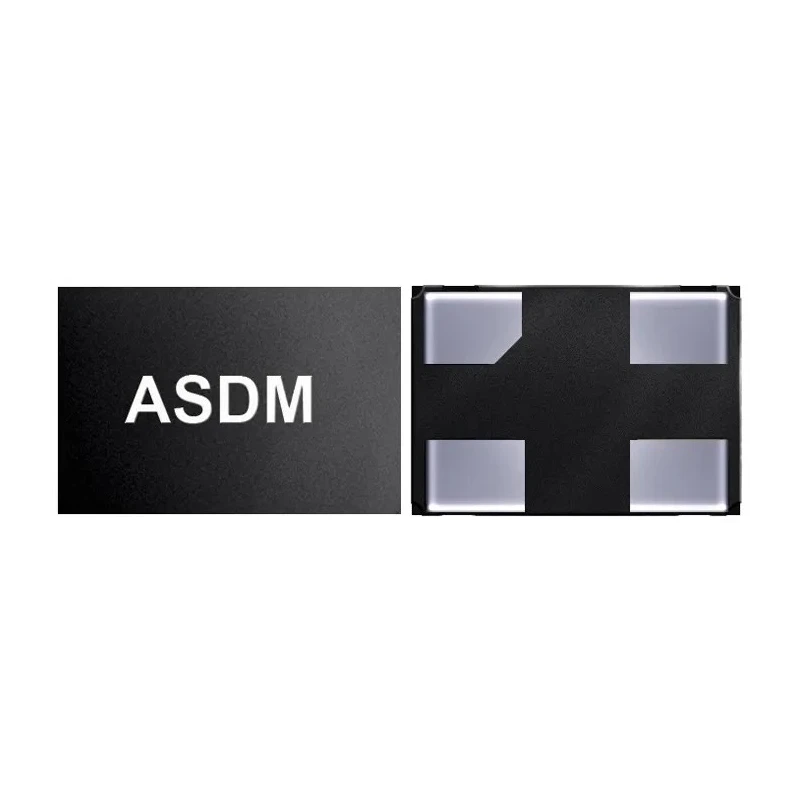

Abracon 25 MHz MEMS Oscillator 4-Pin Surface Mount ±50 ppm ASDM1-25.000MHZ-LC-T

Name: Abracon 25 MHz MEMS Oscillator 4-Pin Surface Mount ±50 ppm ASDM1-25.000MHZ-LC-T
Brand: Abracon
SKU: 177930
Price: 2.72 USD
Availability: InStock



Category MEMS Oscillators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	2.5mm
Model	ASDM1-25.000MHZ-LC-T
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ASDM
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Maximum Output Frequency	25MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	4
Output Level	LVCMOS
Maximum Operating Supply Voltage	3.3V
Minimum Operating Supply Voltage	1.8V

Key Features

Delivers maximum output frequency of 25 MHz with LVCMOS output level.
Compact 4-pin surface mount design with Tape & Reel packaging.
Supports operating voltage range from 1.8V to 3.3V.
Operates reliably within a temperature range of -40°C to +85°C.
Compact dimensions of 2.5mm (length) x 2mm (width) x 0.85mm (height).
Designed for low power consumption and exceptional frequency stability.
Suitable replacement for crystal oscillators in industrial and consumer electronics.
RoHS and RoHS II compliant for environmental safety.

Product Description

The Abracon ASDM1-25.000MHZ-LC-T MEMS Oscillator is a precise timing component delivering a stable 25 MHz output frequency with ±50 ppm frequency stability.

This oscillator features a compact 4-pin surface mount QFN plastic package designed for applications requiring low profile and reliable clock generation. It operates over a wide supply voltage range from 1.8V to a maximum of 3.3V, allowing flexibility in system integration.

The device functions efficiently across a broad operating temperature range from -40°C to +85°C, suited for demanding industrial environments subject to vibration, shock, and humidity. Its low power consumption makes it ideal for portable electronics and embedded systems.

Packaging in Tape & Reel format is optimized for automated PCB assembly processes. The output signal is LVCMOS level, compatible with modern digital logic circuits.

Common applications include CCD clocks in VTR cameras, computer peripherals, consumer electronics like MP3 players and DVRs, and automotive electronics requiring reliable timing components.

Maximum output frequency of 25 MHz with LVCMOS output level. Compact 4-pin surface mount package with dimensions 2.5mm x 2mm x 0.85mm. Operating voltage from 1.8V to 3.3V for compatibility with diverse systems. Wide operating temperature range from -40°C to +85°C for harsh environments.

Low power consumption suitable for battery-powered devices. RoHS/RoHS II compliant, ensuring adherence to environmental regulations. Suitable for industrial, automotive, consumer electronics, and military applications. Explore our range of MEMS Oscillators for dependable frequency sources across various industrial and commercial sectors.
