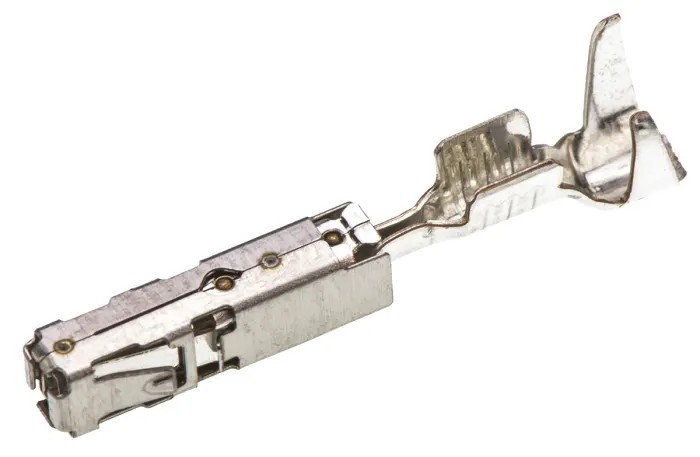

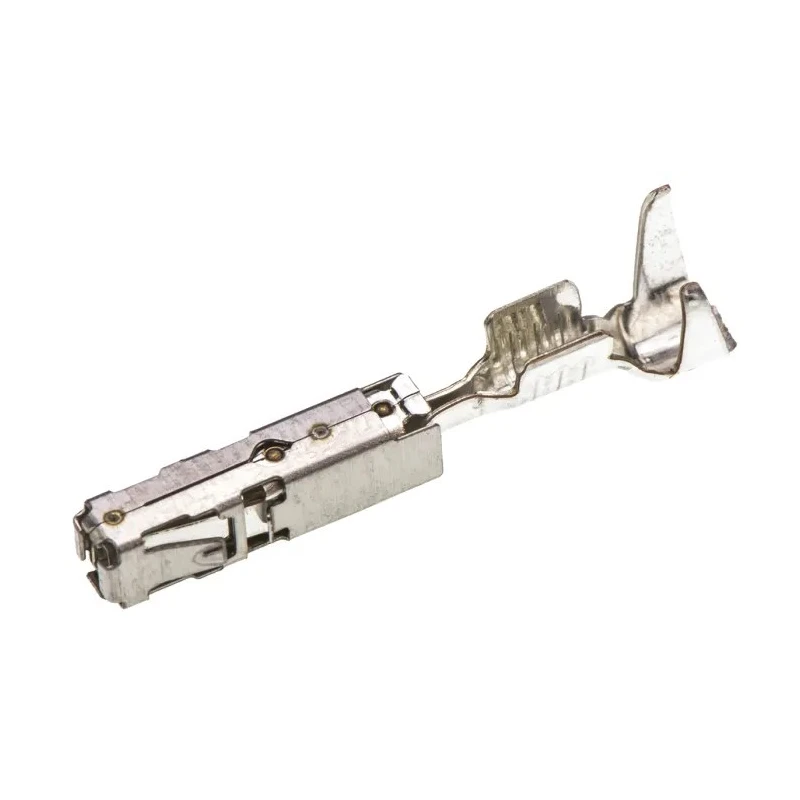

TE Connectivity AMP MCP 1.5K Female Crimp Terminal Contact 12A 2.1mm Diameter 130°C 1241380-1
Specifications
| Country of Origin | Switzerland |
|---|---|
| Diameter | 2.1mm |
| Brand | TE Connectivity |
| Current | 12A |
| Width | 1.5mm |
| Gender | Female |
| Contact Material | Copper Nickel Silicon |
| Series | AMP MCP 1.5K |
| Termination Type | Crimp |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1178PBrand: TE ConnectivityManufacturers Part No.: 1241380-1 |
| Contact Plating | Tin |
Key Features
- Constructed from copper alloy with steel top springs for durability.
- Compatible with wire sizes 0.5 to 1.0 mm², except specific stock accepting up to 1.5 mm².
- Features single wire sealing system for secure connection and environmental protection.
- Operating temperature range from -40°C up to 130°C for harsh environments.
- Mating area dimensions 1.50 x 0.60 mm with a 6N mating/unmating force specification.
- Contact plating with tin to ensure corrosion resistance.
- Suitable for use with Heavy Duty Sealed Connector Series (HDSCS) in commercial and off-road vehicles.
- Provides IP67 level protection against dust and water ingress when used with HDSCS connectors.
Product Description
TE Connectivity 1241380-1 AMP MCP 1.5K Female Crimp Terminal Contact is a high-quality automotive connector terminal designed to deliver reliable electrical performance in demanding automotive applications. Crafted from copper alloy with steel top springs, this contact ensures mechanical strength and excellent conductivity suitable for automotive electrical systems.
The terminal features a single wire sealing system (SWS), facilitating secure and sealed connections that prevent ingress of dust and moisture. This enhances operational reliability in tough environments such as commercial and off-road vehicles. With a current rating of 12A and an operating temperature range from -40°C to 130°C, it maintains performance under extreme thermal conditions.
The contact has a diameter of 2.1 mm, width of 1.5 mm, and a mating area sized at 1.50 x 0.60 mm, designed for wire sizes ranging from 0.5 to 1.0 mm². The mating and unmating force is rated at 6N, ensuring secure and stable electrical connections. Contact plating with tin provides corrosion resistance extending the service life of the component.
This terminal is compatible with the Heavy Duty Sealed Connector Series (HDSCS) from TE Connectivity, which offers rugged thermoplastic housings designed to withstand vibration and harsh environmental exposure. The HDSCS connector series is rated for IP67 protection, guaranteeing dust-tightness and water resistance, making it ideal for wire-to-wire and wire-to-device applications in commercial vehicles.
Constructed from copper alloy with steel top springs for durability. Compatible with wire sizes 0.5 to 1.0 mm², except specific stock accepting up to 1.5 mm². Features single wire sealing system for secure connection and environmental protection.
Operating temperature range from -40°C up to 130°C for harsh environments. Mating area dimensions 1.50 x 0.60 mm with a 6N mating/unmating force specification. Contact plating with tin to ensure corrosion resistance. Suitable for use with Heavy Duty Sealed Connector Series (HDSCS) in commercial and off-road vehicles.
Provides IP67 level protection against dust and water ingress when used with HDSCS connectors.
This high-performance terminal contact from TE Connectivity is perfect for integration into automotive electrical systems requiring dependable connectivity in severe conditions. Explore more TE Connectivity products and solutions available on EnvMart for comprehensive electrical and automotive connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crimp terminal contact has a current rating of 12A, making it suitable for various automotive electrical applications.
It operates within a temperature range of -40°C to 130°C, allowing it to perform in harsh environments.
This terminal is compatible with wire sizes ranging from 0.5 to 1.0 mm², with specific stock accepting up to 1.5 mm².
The mating area dimensions are 1.50 x 0.60 mm, designed for secure connections.
It features a single wire sealing system (SWS) that provides secure connections and environmental protection.
The mating and unmating force for this terminal is rated at 6N, ensuring stable electrical connections.
The contact is constructed from a copper alloy with steel top springs, enhancing its mechanical strength and conductivity.
The contact is plated with tin, which provides corrosion resistance to extend its service life.
This terminal is compatible with the Heavy Duty Sealed Connector Series (HDSCS) from TE Connectivity.
When used with HDSCS connectors, it provides IP67 level protection against dust and water ingress.
The country of origin for this crimp terminal contact is Switzerland.
