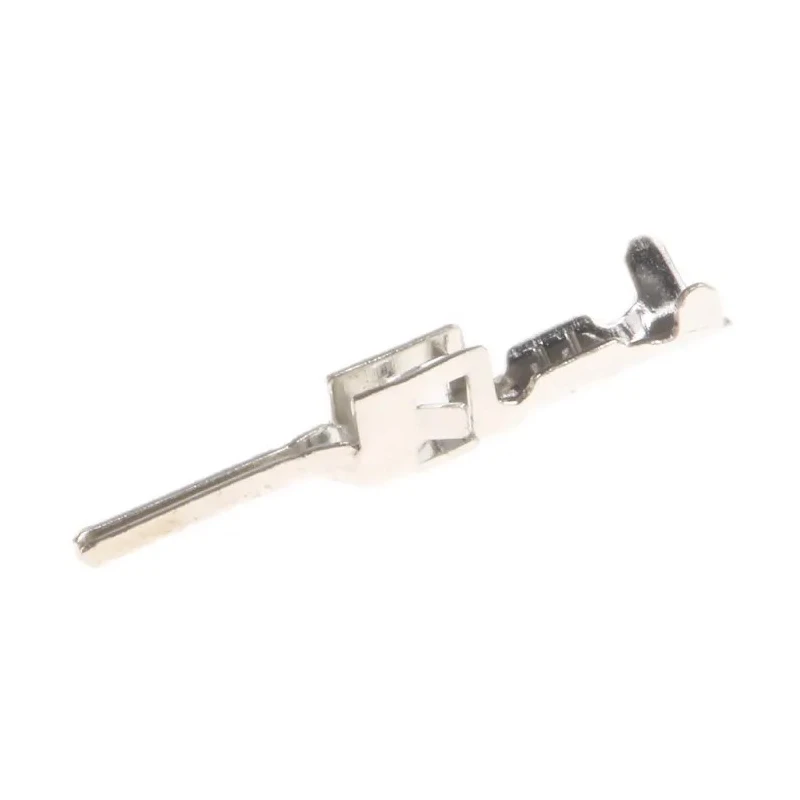

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal 5A Current 30-26 AWG Wire Range 1-794613-0

TE Connectivity 1-794613-0 Micro MATE-N-LOK Series Male Crimp Terminal is engineered for secure wire-to-wire and wire-to-board connections in demanding electrical and electronic applications. It supports wire sizes ranging from 30 AWG (0.05 mm²) to 26 AWG (0.1 mm²) and delivers a continuous current of 5 amperes. The terminal is manufactured from high-quality brass, providing reliable mechanical strength and conductivity.

The contact features bright tin plating which enhances corrosion resistance and electrical performance. Designed to operate under a wide temperature range from minus 40 degrees Celsius to 105 degrees Celsius, it ensures dependable operation in diverse environments. The crimp style termination offers a robust mechanical and electrical bond, secured within the connector housing by a locking lance mechanism that prevents accidental disconnection.

This crimp contact is part of the Micro MATE-N-LOK 3 mm connector system known for its 3 mm centerline spacing and low profile, ideal for compact industrial and consumer electronics applications including LED lighting. The Micro MATE-N-LOK system facilitates flexible use in wire-to-wire and wire-to-panel installations, as well as wire-to-board connections with compatible PCB headers.

The dual beam contact design of this terminal ensures electrical reliability by accommodating variations in female contact thickness, increasing endurance to vibration and mechanical stress.

Designed for use with Micro MATE-N-LOK connector housings. Constructed with brass contact material for durability. Features bright tin plating for reliable electrical connection. Operates safely in temperatures from -40°C to 105°C.

Termination is via a secure crimp method with locking lance retention. Supports a minimum wire size of 0.05 mm² and maximum wire size of 0.1 mm². Maximum contact resistance is rated at 20 milliohms. Part of the Micro MATE-N-LOK 3 mm connector system with low profile and multiple configurations.

This product is ideal for use in industrial electronics manufacturing, automation systems, LED lighting installations, and other commercial electrical assemblies requiring reliable, compact, and secure connections.
