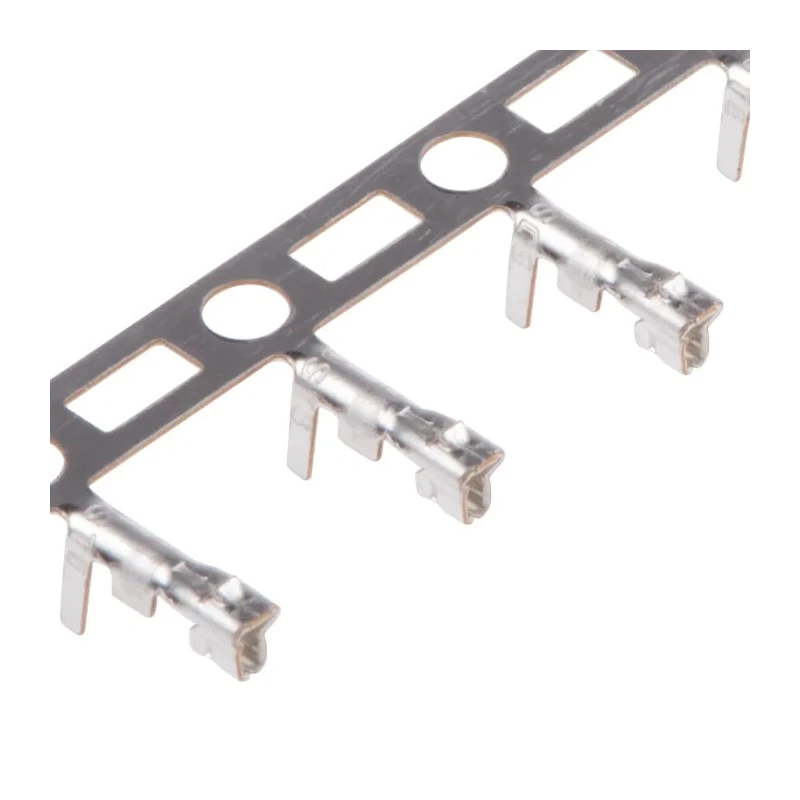

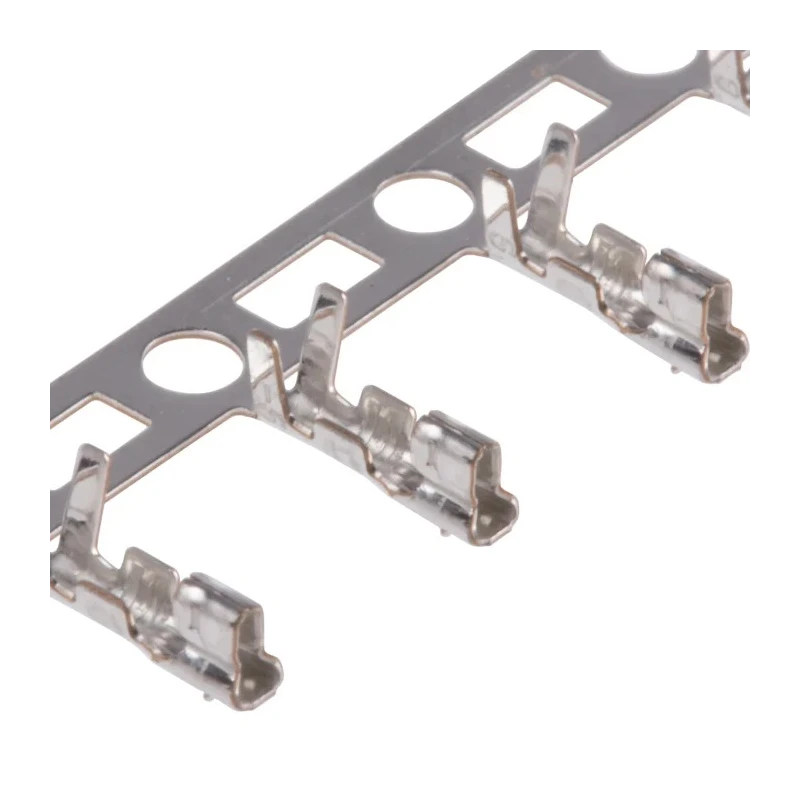

JST PH Series Female Crimp Terminal SPH-002T-P0.5S, 2A, Tin Plated, 30–24 AWG, Phosphor Bronze

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Female Crimp Terminal SPH-002T-P0.5S, 2A, Tin Plated, 30 - 24 AWG, Phosphor Bronze



Category Crimp Terminal Contact Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	2A
Model	SPH-002T-P0.5S
Gender	Female
Contact Material	Phosphor Bronze
Series	PH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	PH Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	20mΩ

Key Features

Designed for PH connector housing applications.
Accommodates wire size range from 30 AWG to 24 AWG.
Made with phosphor bronze and tin plating for corrosion resistance.
Supports a current rating up to 2A.
Contact resistance rated at maximum 20mΩ.
Robust crimp termination ensures secure connections.
Operates within temperature range of -25°C to 85°C.
Female contact suitable for standard tape packaging.

Product Description

JST SPH-002T-P0.5S PH Series Female Crimp Terminal offers reliable performance for wire-to-board connections in a variety of electronic and industrial applications. It is specifically engineered for PH connector housings and provides robust electrical contact through crimp termination.

The terminal accommodates a wire size range of 30 AWG (0.05 mm²) to 24 AWG (0.2 mm²), making it versatile for low-power signal transmission and miniature device assembly. The contact material is phosphor bronze, offering excellent mechanical properties and electrical conductivity, with a tin plating that enhances corrosion resistance.

Designed with a female configuration, this crimp terminal ensures a secure, stable connection. Its current rating of 2A and maximum contact resistance of 20mΩ guarantee reliable operation in PCB connector and wire housing systems.

The termination method is a crimp, allowing for efficient installation and high production throughput. The component operates across a wide temperature range from -25°C to 85°C, suitable for demanding industrial and electronics environments.

For use with PH connector housing. Supports 30 - 24 AWG wire sizes. Female, tin-plated phosphor bronze contact for durability. Rated for 2A current and low contact resistance. Crimp termination aids secure, efficient connections.

Temperature range from -25°C to 85°C.

This crimp terminal is commonly used in electronics manufacturing, PCB assembly, automation systems, and consumer device interconnects. Its standard tape packaging facilitates insertion into machinery, improving assembly efficiency in commercial and industrial production.
