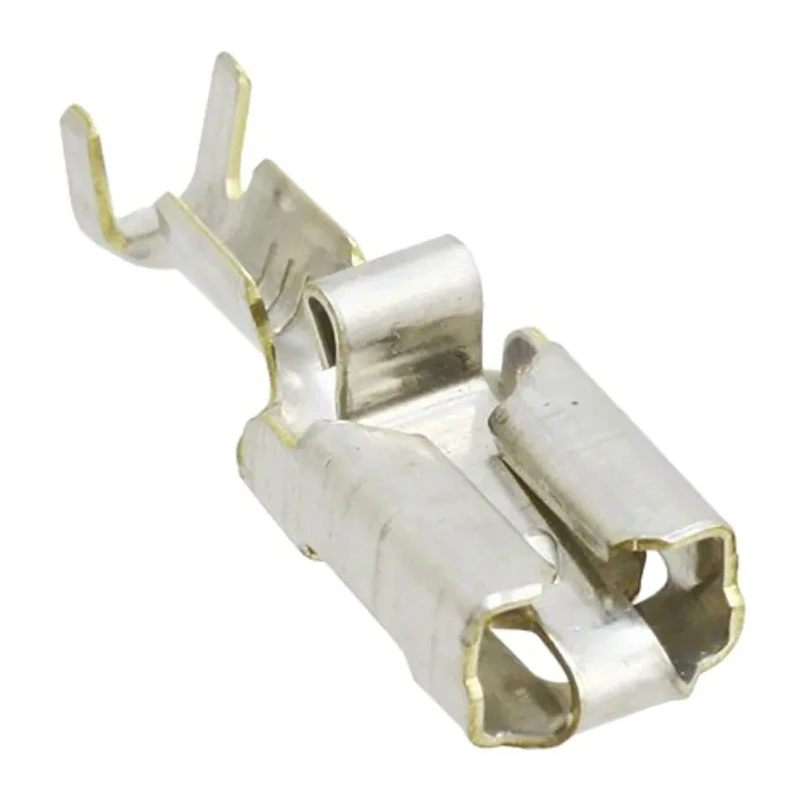

TE Connectivity Positive Lock .250 Mk I Series Female Crimp Terminal, 20 AWG Min Crimp, 15 AWG Max 22.3mm Length 160759-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 22.3mm |
| Model | 160759-4 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Positive Lock .250 Mk I |
| Termination Type | Crimp |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Positive Lock .250 Mk I Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 15AWG |
Key Features
- Compatible with Positive Lock .250 Mk I Connector Housing series.
- Constructed from phosphor bronze with tin plating for corrosion resistance.
- Crimp termination type ensures secure wire fastening.
- Operates reliably between -40°C to 110°C temperature range.
- Compact 22.3mm length allows for efficient use in tight spaces.
- Designed with snap action locking for mechanical secure fit and ease of removal using integral depressor.
- Suitable for industrial, electronic, and manufacturing applications requiring durable PCB connections.
- Female contact gender for specific mating with male tabs with holes or dimples.
Product Description
TE Connectivity 160759-4 Positive Lock .250 Mk I Series Female Crimp Terminal is a high-quality, reliable female crimp contact designed to accept wire sizes between 20 AWG and 15 AWG. Constructed from durable phosphor bronze material with tin plating, it offers excellent conductivity and resistance to corrosion.
The crimp terminal is engineered for use with Positive Lock .250 Mk I Connector Housings, featuring a reduced insertion force and a snap action locking mechanism. This ensures a secure mechanical connection locking onto mating tab terminals that have holes or dimples. The integral depressor on the terminal allows for easy removal without damage.
Operating effectively from -40°C to 110°C, this terminal is suitable for demanding environments in industrial, electronic components, manufacturing, automotive, and other commercial applications. Its compact length of 22.3mm allows for easy integration into various assemblies.
The design supports efficient PCB-to-wire connections with consistent performance and long-lasting durability. The product contains no certifications but abides by standard electrical component norms for quality and operation.
Compatible with Positive Lock .250 Mk I Connector Housing series. Constructed from phosphor bronze with tin plating for corrosion resistance. Crimp termination type ensures secure wire fastening. Operates reliably between -40°C to 110°C temperature range.
Compact 22.3mm length allows for efficient use in tight spaces. Designed with snap action locking for mechanical secure fit and ease of removal using integral depressor. Suitable for industrial, electronic, and manufacturing applications requiring durable PCB connections.
Female contact gender for specific mating with male tabs with holes or dimples.
This female crimp terminal from TE Connectivity is ideal for professionals and engineers who require dependable and secure electrical connections within complex electronic and power connector systems. Explore more specialized connector components and industrial electrical solutions within EnvMart's Electronics & Electrical category.
Explore more products in our Crimp Terminal Contact category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of this crimp terminal is 22.3mm.
It accepts wire sizes between 20 AWG (0.5 mm²) and 15 AWG (1.5 mm²).
This terminal operates reliably within a temperature range of -40°C to 110°C.
It is constructed from phosphor bronze with tin plating for corrosion resistance.
This terminal is compatible with Positive Lock .250 Mk I Connector Housing series.
It uses a crimp termination type to ensure secure wire fastening.
The snap action locking mechanism provides a secure mechanical connection and allows for easy removal using an integral depressor.
This crimp terminal has a female contact gender, designed for mating with male tabs that have holes or dimples.
It is suitable for industrial, electronic, and manufacturing applications requiring durable PCB connections.
The tin plating provides corrosion resistance, enhancing the terminal's conductivity and longevity.
The country of origin for this crimp terminal is India.
Its compact length of 22.3mm allows for efficient use in tight spaces, making it suitable for various assemblies.
