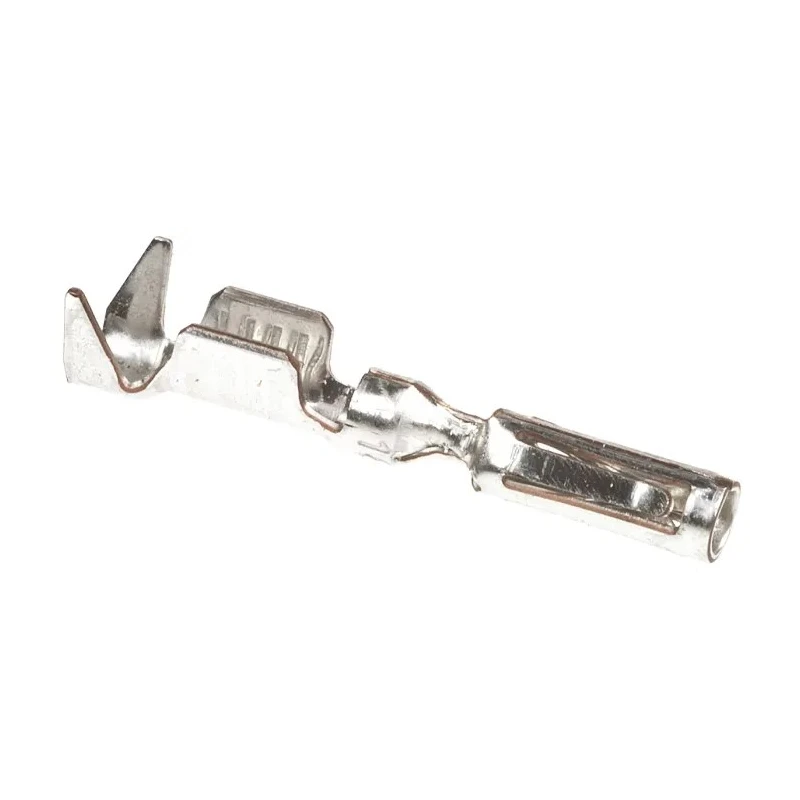

TE Connectivity Ampseal Female Socket Crimp Terminal Contact 17A Tin Plated Copper Nickel Zinc Alloy 770520-1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | TE Connectivity |
| Current | 17A |
| Model | 770520-1 |
| Gender | Female |
| Contact Material | Copper Nickel Zinc Alloy |
| Series | Ampseal |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| TE Connectivity Female PCB Connector ContactBrand | TE Connectivity |
Key Features
- Designed for AMPSEAL sealed connector series for automotive applications.
- Suitable wire size range 0.5 to 1.3 mm² (20-16 AWG).
- Contact material made of copper nickel zinc alloy ensures durability.
- Operating temperature range from -40°C to +125°C.
- Contact diameter is 2.7 mm with a mating pin diameter of 1.3 mm.
- Tin plating provides corrosion resistance and conductivity.
- Termination type is crimp for secure wire connection.
- Female gender socket contact designed to mate with male pins.
Product Description
TE Connectivity 770520-1 Ampseal Female Socket Crimp Terminal Contact is a high-quality electrical connector designed specifically for use with AMPSEAL sealed connector series. It features a robust copper nickel zinc alloy contact material with a tin plating that ensures excellent conductivity and corrosion resistance. Rated for a continuous current of 17A, this female socket contact is suitable for a variety of automotive electrical connector applications requiring reliable and durable Crimp Terminal Contacts.
The contact supports wire sizes from 0.5 mm² to 1.3 mm² (20-16 AWG) and is designed to mate with 1.3 mm diameter male pins. The crimp termination provides a secure and efficient electrical connection. Its operational temperature range from -40°C up to +125°C makes it suitable for demanding automotive environments.
This product does not have specified standard approvals but is engineered according to the quality benchmarks of TE Connectivity. It includes a contact diameter of 2.7 mm and is packaged for ease of use and installation in automotive and industrial electrical systems.
Compatible with AMPSEAL sealed connector series for automotive and industrial use. Supports wire size range 0.5 to 1.3 mm² (20-16 AWG) for flexible installations. Copper nickel zinc alloy construction for mechanical strength and conductivity.
Tin plating enhances long-term reliability and resistance to environmental degradation. Crimp termination ensures a secure and durable connection. Operating temperature from -40°C to +125°C suitable for harsh environments.
Rated current capacity of 17A for effective power transmission. Designed to mate with male pins of 1.3 mm diameter. Essential for automotive electrical systems, industrial connectors, and power distribution. Easily integrated into existing AMPSEAL connector infrastructure.
Choose TE Connectivity 770520-1 for dependable, long-lasting connector performance in automotive and industrial electrical applications. Browse EnvMart’s extensive selection of electronic components and connector solutions to find compatible products for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 17A, making it suitable for various automotive electrical applications.
It supports a wire size range from 0.5 mm² to 1.3 mm² (20-16 AWG), allowing for flexible installations in automotive and industrial settings.
The contact is made from a copper nickel zinc alloy, which provides mechanical strength and excellent conductivity, and is tin plated for corrosion resistance.
This terminal contact operates effectively within a temperature range of -40°C to +125°C, suitable for harsh automotive environments.
The contact diameter is 2.7 mm, designed to mate with male pins of 1.3 mm diameter.
It features a crimp termination type, ensuring a secure and reliable electrical connection.
This model is engineered for automotive applications, particularly within the AMPSEAL sealed connector series.
While this product does not have specified standard approvals, it is designed according to the quality benchmarks of TE Connectivity.
This terminal contact is a female socket, intended to mate with male pins.
The country of origin for this product is India.
It belongs to the AMPSEAL series, which is specifically designed for sealed automotive connectors.
The tin plating enhances long-term reliability and provides resistance to environmental degradation, improving overall performance.
