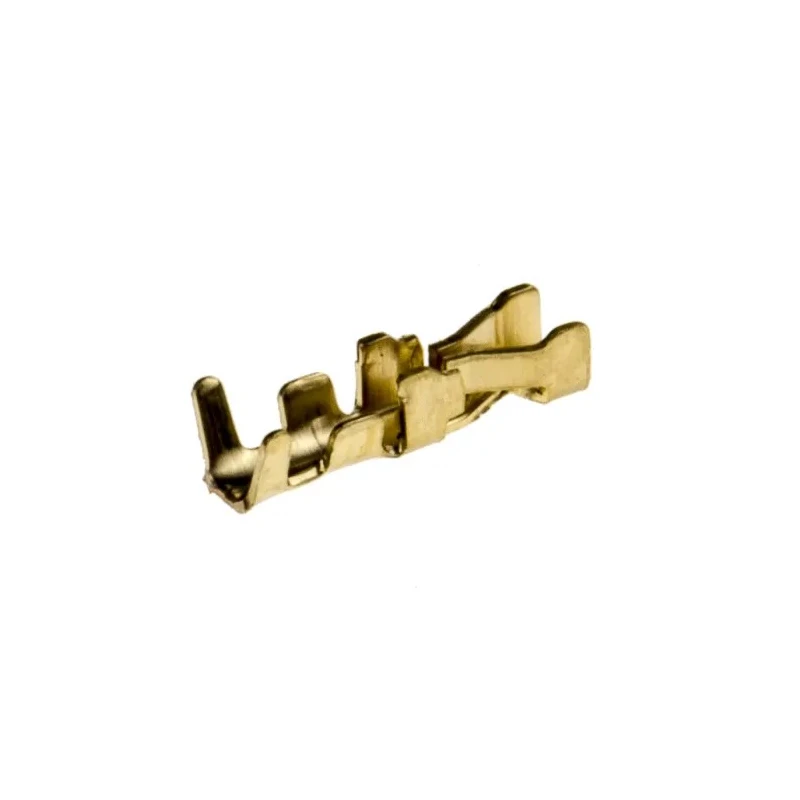

RS PRO Female Crimp Terminal Contact, Gold Plated, Phosphor Bronze, 30 AWG Min, 24 AWG Max 547-3289
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 547-3289 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Crimp Mouldings |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 30mΩ |
| Gold plated crimp terminal,28-30 awgBrand | HARWIN |
| HARWIN M22 Series Female Crimp Terminal, 30 AWG Min Crimp, 24 AWG MaxBrand | HARWIN |
Key Features
- Constructed with gold plating for excellent conductivity and corrosion resistance.
- Contact material is phosphor bronze, ensuring durability and reliable electrical connection.
- Supports a maximum contact resistance of 30 milliohms for efficient performance.
- Operates in temperatures from -40°C to 105°C, suitable for diverse environments.
- Termination is by crimping, providing secure wire attachment.
- Manufactured in Taiwan, Province Of China maintaining production quality standards.
- Compatible with RS PRO series crimp terminals for professional assembly use.
- Recommended wire strip length is 3.25 mm for optimal crimping.
Product Description
RS PRO 547-3289 Female Crimp Terminal Contact offers a high-quality crimp terminal solution for electrical and electronic assembly applications requiring reliable connections at wire sizes 30 AWG to 24 AWG. This contact is crafted from durable phosphor bronze with a gold plated finish, providing superior conductivity and corrosion resistance in demanding industrial and commercial environments.
The terminal supports a maximum contact resistance of 30 milliohms, ensuring minimal energy loss and stable signal transmission. It operates effectively within a temperature range of -40°C to 105°C, making it suitable for use in various HVAC, manufacturing, and instrumentation contexts where temperature variation is common.
Designed for use with crimp mouldings, the contact terminates wires by crimping, yielding secure, reliable terminations that withstand mechanical stress and vibration. The recommended wire strip length of 3.25 mm helps maintain consistent crimp quality.
Manufactured in Taiwan, Province Of China, this product adheres to rigorous quality standards essential for industrial electrical connectors. Gold plating enhances conductivity and corrosion resistance. Phosphor bronze construction for mechanical stability.
Compatible with 30 to 24 AWG wire sizes. Crimp termination provides secure wire connections. Suitable for harsh environmental conditions. Reliably used in commercial and industrial electronic assemblies. Maintains performance with low contact resistance of 30mΩ maximum.
This female Crimp Terminal Contact is an ideal choice for electrical installers, equipment manufacturers, and HVAC system builders seeking a dependable and durable connector component. Explore more RS PRO connectors and electronics components on EnvMart for comprehensive wiring solutions across diverse applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum wire size compatible with this crimp terminal contact is 24 AWG.
This terminal can accommodate a minimum wire size of 30 AWG.
The contact material is phosphor bronze, which ensures durability and reliable electrical connections.
The maximum contact resistance for this terminal is 30 milliohms.
This terminal operates effectively within a temperature range of -40°C to 105°C.
The wire is terminated to this crimp terminal contact by crimping, which provides a secure attachment.
The recommended wire strip length for optimal crimping is 3.25 mm.
This terminal is manufactured in Taiwan, Province Of China.
This terminal features gold plating, which enhances conductivity and corrosion resistance.
This terminal is compatible with crimp mouldings for professional assembly use.
This terminal belongs to the RS PRO series of crimp terminals.
This crimp terminal contact is suitable for various electrical and electronic assembly applications, particularly in HVAC, manufacturing, and instrumentation contexts.
