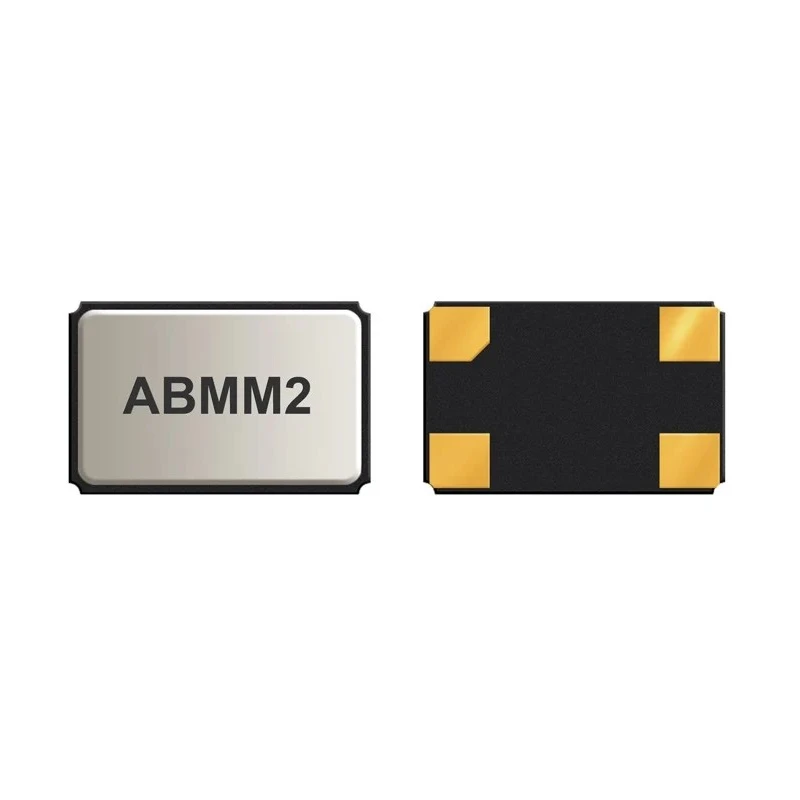

Abracon 20 MHz Crystal Unit ±20 ppm Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ABMM2-20.000MHZ-E2-T

Abracon ABMM2-20.000MHZ-E2-T is a high-reliability 20 MHz crystal unit designed for surface mount applications requiring precise frequency control and stability. Its ±20 ppm frequency tolerance and 18pF load capacitance make it suitable for critical timing functions in modern electronic devices.

The compact ceramic package has a low profile height of 1.2 mm, length of 6 mm, and width of 3.5 mm, optimizing board space. The four-pin configuration facilitates straightforward surface mounting on PCBs using standard assembly lines, especially in automated production environments.

This crystal unit features a seam-sealed ceramic package that enhances mechanical protection and environmental durability, ensuring long-term stability even under varying temperature conditions from -10°C to 60°C. The series resistance of 50 ohms is typical for its frequency range, maintaining optimal oscillator circuit performance.

Specifically engineered for use in computers, modems, microprocessors, communication devices, and various test equipment, this crystal unit meets RoHS environmental standards and is supplied in tape and reel format to assist in efficient assembly processes.

Surface mount 20 MHz crystal unit with ±20 ppm tolerance. Seam sealed ceramic package for enhanced reliability. Compact dimensions: 1.2 mm height, 6 mm length, 3.5 mm width. Operating temperature range from -10°C to 60°C.

Series resistance of 50 ohms suitable for oscillator circuits. 4-pin configuration compatible with modern PCB layouts. RoHS compliant and supplied in tape and reel packaging.

This product fits well in industrial and commercial applications such as computing, telecommunications, and instrumentation, offering dependable frequency control solutions. Explore our full range of Crystal Units on EnvMart for your electronic component needs.
