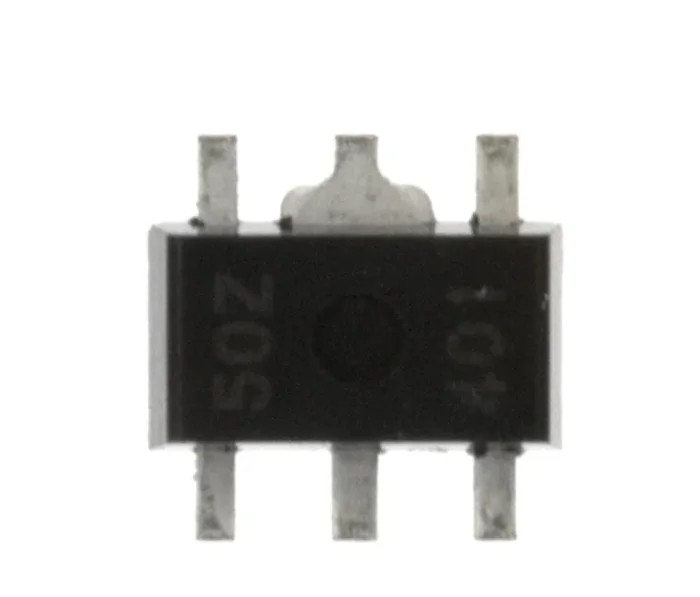

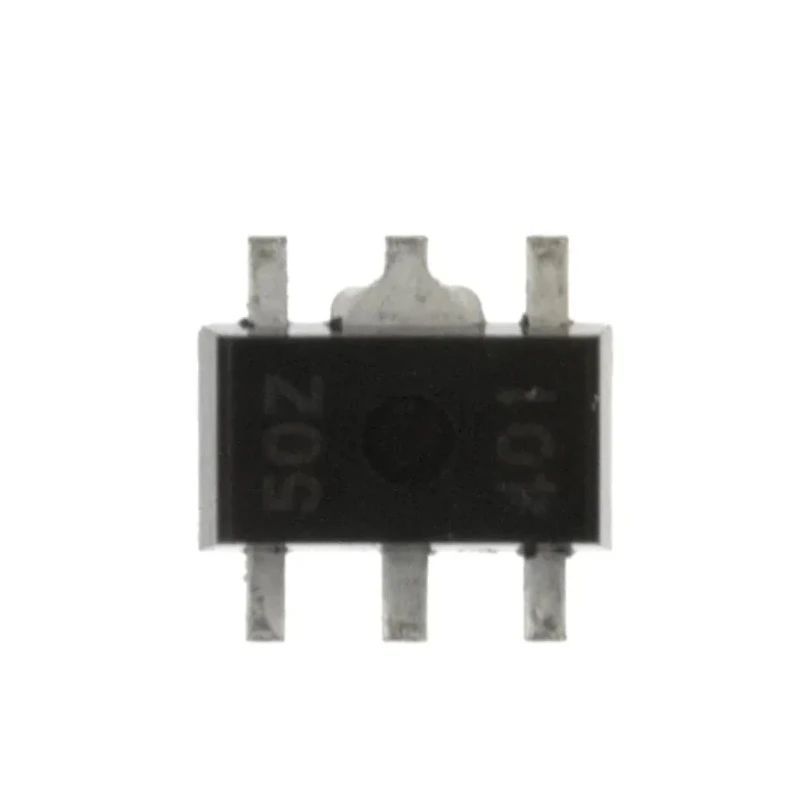

Nisshinbo Micro Devices Constant Current LED Driver, 40V, 300 mA, 2.4W, PWM Dimming, 6-Pin SOT-89 Package NJW4616U2-TE1

Free Delivery in India | Lowest Global Shipping Charges

Nisshinbo Micro Devices Constant Current LED Driver, 40V, 300 mA, 2.4W, PWM Dimming, 6-Pin SOT-89 Package NJW4616U2-TE1

Name: Nisshinbo Micro Devices Constant Current LED Driver, 40V, 300 mA, 2.4W, PWM Dimming, 6-Pin SOT-89 Package NJW4616U2-TE1
Brand: Nisshinbo Micro Devices
SKU: 177911
Price: 1.54 USD
Availability: InStock



Category LED Driver IC Brand Nisshinbo Micro Devices Condition New

Specifications

Country of Origin	India
Brand	Nisshinbo Micro Devices
Model	NJW4616U2-TE1
Mount Type	Surface
Series	NJW4616U2
Output Current	300mA
Maximum Operating Temperature	125°C
Package Type	SOT-89
Minimum Operating Temperature	-40°C
Maximum Output Power	2.4W
Input Voltage	40V
Standards/Approvals	RoHS
Maximum Output Voltage	40V
Number of Pins	6
Dimming Operation	PWM

Key Features

Operates with input voltage up to 40V for versatile power supply ranges.
Provides a consistent output current of 300 mA to ensure stable LED performance.
Supports PWM dimming operation for adjustable brightness control.
Maximum output power of 2.4W ensures efficient energy usage.
Surface mount design with 6-Pin SOT-89 package for easy PCB integration.
Wide operating temperature range from -40°C to 125°C for harsh environments.
Features over current protection enhancing device safety.
Complies with RoHS standards for environmental safety.

Product Description

Nisshinbo Micro Devices NJW4616U2-TE1 is a constant current LED driver incorporating PWM dimming control suited for various LED lighting applications. It efficiently manages input voltages in a wide range up to 40V while delivering a precise output current of 300 mA. This makes it highly suitable for LED backlighting and light sources requiring stable illumination.

The device is packaged in a compact 6-pin SOT-89 surface mount format, facilitating easy integration into printed circuit boards. Its maximum output power is rated at 2.4W, ensuring adequate power handling for medium-intensity LED setups.

Operating temperature ranges from -40°C to 125°C, allowing usage in demanding industrial environments. Over current protection is incorporated for enhanced operational safety and reliability.

This LED driver complies fully with RoHS environmental directives, supporting sustainable manufacturing practices. Although not compliant with automotive standards, it fits well within electronic components for industrial, laboratory, and commercial lighting applications.

Operates with input voltage up to 40V for versatile power supply ranges. Provides a consistent output current of 300 mA to ensure stable LED performance. Supports PWM dimming operation for adjustable brightness control. Maximum output power of 2.4W ensures efficient energy usage.

Surface mount design with 6-Pin SOT-89 package for easy PCB integration. Wide operating temperature range from -40°C to 125°C for harsh environments. Features over current protection enhancing device safety. Complies with RoHS standards for environmental safety.

Suitable for backlight and general LED lighting by maintaining constant current. Not designed for automotive standards but ideal for industrial and commercial LED solutions.

This product is ideal for use in industrial electronic systems, laboratory equipment, commercial LED lighting, and similar applications requiring constant current LED drivers with PWM dimming capability. It is sourced from reliable components within the Electronics & Electricals sector and well categorized under LED Driver ICs at EnvMart.
