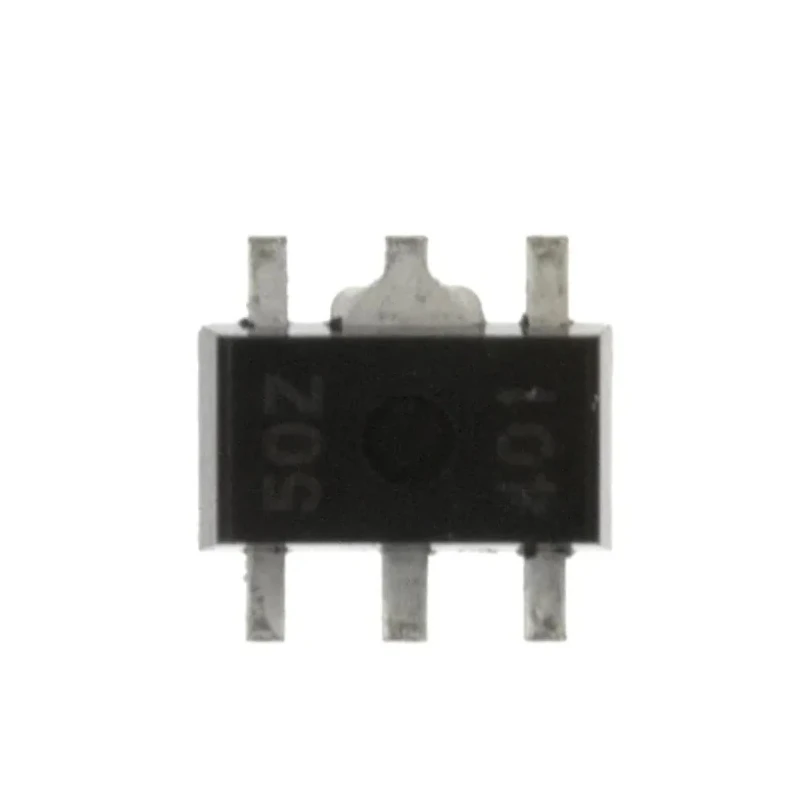

Nisshinbo Micro Devices Constant Current LED Driver 40V 300 mA PWM Dimming 6-Pin SOT-89 NJW4616U2-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJW4616U2-TE1 |
| Mount Type | Surface |
| Series | NJW4616U2 |
| Output Current | 300mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40°C |
| Maximum Output Power | 2.4W |
| Input Voltage | 40V |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 40V |
| Number of Pins | 6 |
| Dimming Operation | PWM |
Key Features
- Operates within a supply voltage range of 2.5 to 40 V for flexible application.
- Includes over current protection to enhance device safety.
- Surface mount design utilizing a 6-pin SOT-89 package for compact integration.
- Supports PWM dimming control ideal for backlight and various light source applications.
- Wide operating temperature range from -40°C to 125°C ensuring reliability in harsh environments.
- Complies with RoHS standards for environmental safety.
- Maximum output power rating of 2.4 Watts suitable for moderate power LED drives.
- Non-automotive standard device targeted towards general electronics and display applications.
Product Description
Nisshinbo Micro Devices NJW4616U2-TE1 constant current LED driver IC is engineered for precise LED current regulation with a maximum output of 40V and 300 mA output current. Featuring PWM dimming operation, this device is optimized for backlighting, LED light source control, and similar electronic lighting applications.
The driver operates efficiently over a voltage range of 2.5 to 40 V, allowing flexibility for various power supply designs. Its surface mount 6-pin SOT-89 package ensures compact footprint suitable for dense PCB layouts in consumer electronics and industrial LED displays.
For protection, the NJW4616U2-TE1 integrates over current protection to safeguard the LED and circuitry against abnormal conditions. It complies with RoHS environmental standards, affirming its eco-friendly manufacturing and usage.
The wide operational temperature range from -40°C to 125°C guarantees robust performance in industrial, automotive non-critical, laboratory, and commercial environments where temperature variations occur.
Operates over supply voltage range 2.5 V to 40 V. 300 mA constant current output with PWM dimming capability helps generate stable lighting with brightness control. SOT-89 6-pin surface mount package enables compact device assembly.
Over current protection improves device and system reliability. Meets RoHS standards ensuring environmental compliance. Wide temperature operation from -40°C up to +125°C for harsh conditions. Maximum output power rating of 2.4 Watts supports moderate power LEDs.
Ideal for LED backlighting, display illumination, and light source drive applications in industrial and electronic projects.
This model NJW4616U2-TE1 by Nisshinbo Micro Devices represents a reliable LED Driver IC solution that combines efficiency, protection features, and broad industrial usability. EnvMart offers this product for precise LED current regulation needs in professional and commercial lighting design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this LED driver is 300 mA.
It operates within a supply voltage range of 2.5 to 40 V.
This model supports PWM dimming operation, which is ideal for controlling brightness in LED applications.
The maximum output power rating of the NJW4616U2-TE1 is 2.4 Watts.
It comes in a surface mount SOT-89 package, which allows for compact integration on PCBs.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
Yes, it includes over current protection to enhance device safety and reliability.
The specific dimensions of the SOT-89 package are not provided in the available data.
It complies with RoHS standards, ensuring environmental safety in its manufacturing and usage.
This LED driver is optimized for applications such as LED backlighting, display illumination, and light source control.
This model features a total of 6 pins in its design.
The country of origin for this product is India.
