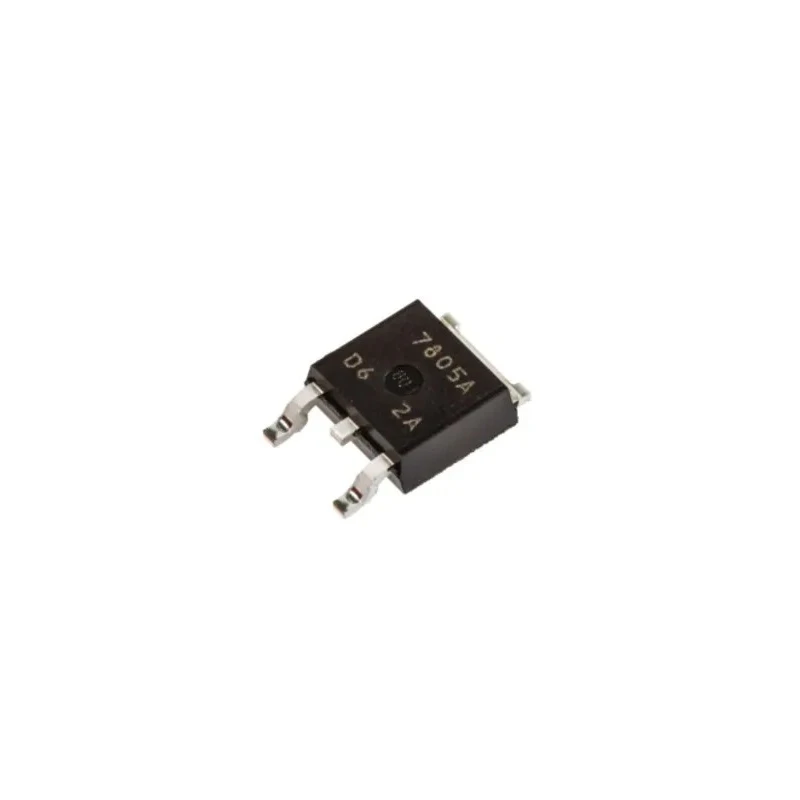

Nisshinbo Micro Devices Linear Voltage Regulator NJM7805DL1A-TE1 5V 1.5A Surface Mount RoHS Compliant
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM7805DL1A-TE1 |
| Mount Type | Surface |
| Series | NJM7800 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 125°C |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Output Voltage | 5V |
| Quiescent Current | 6mA |
| Line Regulation | 100 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
Key Features
- Features a single output channel with linear regulation for smooth voltage control.
- Supports an input voltage range from 4V to 40V suitable for various applications.
- Has a quiescent current of 6mA optimizing power consumption.
- Designed for surface mount installation enhancing PCB assembly efficiency.
- Includes built-in internal current limiting and thermal shutdown to protect the device.
- Operating temperature ranges from -40°C to 125°C ensuring reliable performance in harsh environments.
- Complies with RoHS standards for environmental safety compliance.
- Employs bipolar technology and advanced planar epitaxial process for durability.
Product Description
The Nisshinbo Micro Devices NJM7805DL1A-TE1 is a high-performance, single-channel linear voltage regulator designed to provide a stable 5V output voltage at up to 1.5A output current. Manufactured using advanced JRC planar epitaxial technology, the device integrates internal current limiting, thermal shutdown, and safe-area compensation to ensure reliable and indestructible operation.
This surface mount voltage regulator efficiently manages power with a low quiescent current of 6mA and wide operating input voltage range from 4V to 40V, making it highly adaptable for various electronic applications. The regulator maintains high performance even under extreme temperature conditions ranging from -40°C to 125°C.
Its features include excellent ripple rejection and bipolar technology implementation, which contribute to circuit stability and noise reduction. This device is RoHS compliant, aligning with environmental standards.
The NJM7805DL1A-TE1 is typically used in industrial electronics, power management IC circuits, consumer electronics, and automotive electronics requiring a reliable 5V regulated power source. Its surface mount design allows for efficient PCB assembly and compact designs.
Single output linear voltage regulation with 5V output. 1.5A maximum output current capability. Input voltage range from 4V to 40V. Internal current limiting and thermal shutdown protection. Operating temperature from -40°C to 125°C.
Low quiescent current of 6mA. RoHS compliant and environmentally safe. Surface mount package for efficient assembly. Employs bipolar technology and epitaxial process for enhanced durability.
Package contents include one NJM7805DL1A-TE1 linear voltage regulator. This device is essential for precision voltage regulation in a variety of electronic and power management systems.
Explore more Voltage Regulators and power management components at EnvMart for industrial, laboratory, automotive, and consumer electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V with a maximum output current capability of 1.5A.
It supports an input voltage range from 4V to 40V, making it suitable for various applications.
The operating temperature range for the NJM7805DL1A-TE1 is from -40°C to 125°C, ensuring reliable performance in harsh environments.
The quiescent current of this model is 6mA, optimizing power consumption during operation.
This unit features a surface mount design, which enhances PCB assembly efficiency.
Yes, it includes internal current limiting and thermal shutdown to protect the device from damage.
The load regulation is 100 mV, and the line regulation is also 100 mV, contributing to stable output performance.
Yes, this model complies with RoHS standards for environmental safety compliance.
It employs bipolar technology and an advanced planar epitaxial process for enhanced durability and performance.
The NJM7805DL1A-TE1 is manufactured in India.
It is typically used in industrial electronics, power management IC circuits, consumer electronics, and automotive electronics requiring a reliable 5V regulated power source.
This model belongs to the NJM7800 series of linear voltage regulators.
