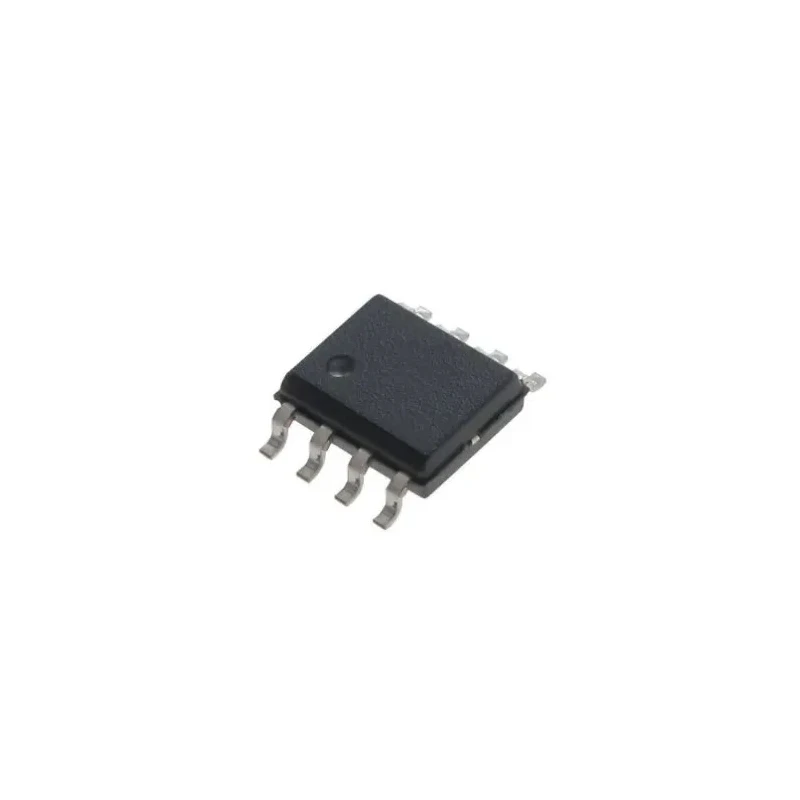

Nisshinbo Micro Devices Operational Amplifier, 15 MHz, 8-Pin Surface Mount DMP NJM4580V-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4580V-TE1 |
| Mount Type | Surface |
| Series | NJM4580 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 15MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 5V/μs |
| Input Offset Current | 200 nA |
Key Features
- Dual operational amplifier with low noise and distortion for audio pre-amps and active filters.
- Surface mount DMP package with 8 pins ensuring compact PCB integration.
- High gain bandwidth product at 15 MHz for dynamic signal processing.
- Wide supply voltage range from -18V to 18V supports various industrial uses.
- Input bias current of 500 nA and low input offset voltage of 3 mV for precise amplification.
- Operating temperature range from -40°C to 85°C suitable for harsh environments.
- Slew rate of 5 V/μs ensures fast signal response without distortion.
- Compliant with RoHS standards for environmental safety.
Product Description
Nisshinbo Micro Devices NJM4580V-TE1 operational amplifier is a dual bipolar amplifier optimized for tone control and audio pre-amplification applications. Designed with low noise and low distortion characteristics, this 15 MHz bandwidth device provides enhanced audio fidelity and performance.
This amplifier comes in an 8-pin DMP surface mount package, allowing for easy integration into compact circuit designs. It supports a wide supply voltage range from -18V to 18V, making it suitable for various industrial and measurement tool applications.
The device features an input bias current of 500 nA and a low input offset voltage of 3 mV, ensuring precise signal amplification. It operates reliably over a temperature range from -40°C to 85°C, making it ideal for demanding environments.
The 5 V/μs slew rate allows the amplifier to handle rapid signal changes without causing waveform distortion. RoHS compliance guarantees that the device meets environmental regulations.
Dual operational amplifier with low noise and distortion for audio pre-amps and active filters. Surface mount DMP package with 8 pins ensuring compact PCB integration. High gain bandwidth product at 15 MHz for dynamic signal processing.
Wide supply voltage range from -18V to 18V supports various industrial uses. Input bias current of 500 nA and low input offset voltage of 3 mV for precise amplification. Operating temperature range from -40°C to 85°C suitable for harsh environments.
Slew rate of 5 V/μs ensures fast signal response without distortion. Compliant with RoHS standards for environmental safety.
This Operational Amplifier is widely applicable in industrial, audio electronics, measurement instrumentation, and filter designs. Its reliable performance under varying electrical and environmental conditions supports a broad range of engineering applications.
Explore more Nisshinbo Micro Devices components and related electronics amplifiers at EnvMart for high-quality semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 15 MHz, making it suitable for dynamic signal processing applications.
It supports a wide supply voltage range from -18V to 18V, accommodating various industrial applications.
The input bias current is 500 nA, allowing for precise amplification in audio and measurement applications.
The input offset voltage is 3 mV, which contributes to its precision in amplification.
This operational amplifier operates reliably over a temperature range from -40°C to 85°C, suitable for harsh environments.
The slew rate is 5 V/μs, enabling fast signal response without distortion.
This model features 2 channels, making it a dual operational amplifier.
It comes in an 8-pin DMP surface mount package, which allows for compact PCB integration.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety regulations.
This operational amplifier is widely used in industrial, audio electronics, measurement instrumentation, and filter designs.
The input offset current is 200 nA, which contributes to its overall performance in amplification tasks.
The operational amplifier is manufactured in India.
