Nisshinbo Micro Devices 2-Channel Audio Amplifier IC 300mW 8-Pin DMP NJM4580M-TE1

Free Delivery in India | Lowest Global Shipping Charges

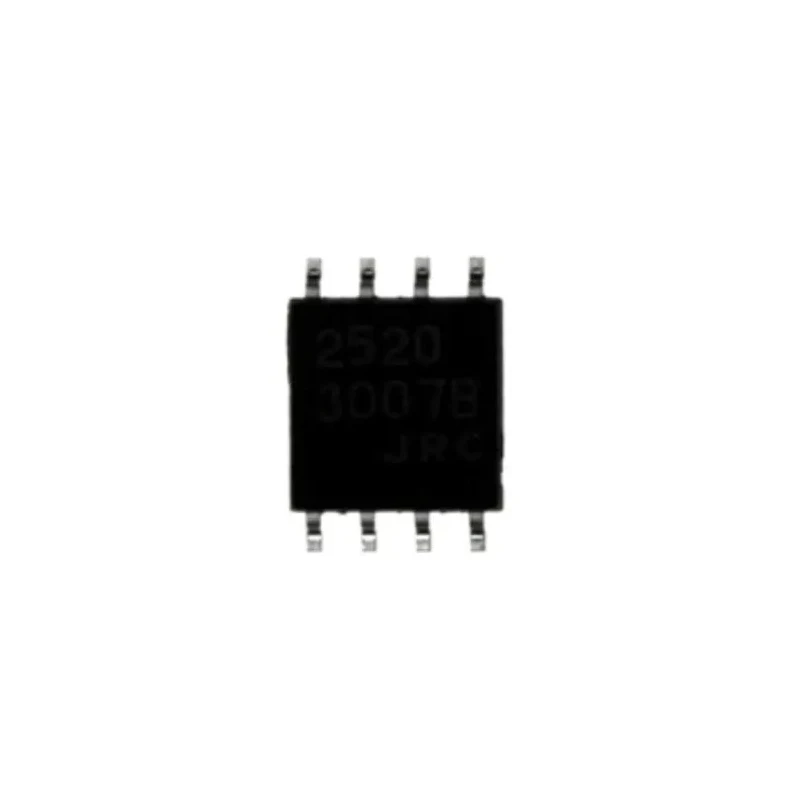

Nisshinbo Micro Devices 2-Channel Audio Amplifier IC 300mW 8-Pin DMP NJM4580M-TE1

Name: Nisshinbo Micro Devices 2-Channel Audio Amplifier IC 300mW 8-Pin DMP NJM4580M-TE1
Brand: Nisshinbo Micro Devices
SKU: 177880
Price: 0.71 USD
Availability: InStock



Category Audio Amplifier ICs Brand Nisshinbo Micro Devices Condition New

Specifications

Country of Origin	India
Brand	Nisshinbo Micro Devices
Model	NJM4580M-TE1
Output Power	300mW
Mount Type	Surface
Series	NJM4580
Maximum Operating Temperature	85°C
Package Type	DMP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	18V
Minimum Supply Voltage	-18V
Amplifier Type	Audio

Key Features

The amplifier is designed for low noise and low distortion audio applications.
It operates over a wide temperature range from -40°C to 85°C.
Supports supply voltages from -18V to 18V for flexible integration.
Perfect for audio equipment, pre-amplifiers, active filters, and industrial measurement tools.
The device uses bipolar technology ensuring robust performance.
Compliance with RoHS standards guarantees safe, environmentally friendly usage.
Compact 8-pin dual operational amplifier package facilitates space-saving PCB designs.
Automotive standard compliance is not applicable for this amplifier IC.

Product Description

Nisshinbo Micro Devices NJM4580M-TE1 is a dual operational amplifier designed specifically for enhancing tone control in audio applications. This 2-channel audio amplifier IC delivers a stable output power of 300mW, suitable for surface mounting with its 8-pin DMP package.

Its robust bipolar technology ensures low noise and low distortion characteristics, making it highly suitable for audio pre-amplifier circuits, active filters, and precision industrial measurement tools. It operates reliably across a broad temperature range from -40°C to 85°C and supports a voltage supply range between -18V to 18V, providing design flexibility.

The NJM4580 series is widely recognized for its consistent performance and durability in both commercial and industrial environments. While this IC is designed for audio equipment, its attributes also make it fit for use in manufacturing and measurement applications where audio signal processing is required.

The amplifier features noiseless operation and a low distortion ratio, ensuring high-quality audio reproduction. It incorporates bipolar technology to improve overall device reliability. The IC is packaged in a space-efficient 8-pin Direct Mount Package suitable for modern PCB layouts.

Designed for surface mount technology, aiding compact and efficient circuit integration. The product complies with RoHS standards, ensuring environmental safety and adherence to regulations. This model does not meet automotive standards, limiting its use in vehicle-specific audio systems.

Operating voltage range from -18V to 18V allows versatile power supply options. Operating temperature limits range from -40°C to 85°C, suitable for harsh industrial conditions.

This product is particularly popular in industrial, commercial audio equipment manufacturing, and laboratory measurement setups where reliable audio amplification is critical. Its low distortion and noise characteristics make it a preferred choice for audio engineers and product designers aiming for clarity and performance.

Explore the extensive range of Audio Amplifier ICs from Nisshinbo Micro Devices and integrate precision amplification solutions into your next project with confidence.
