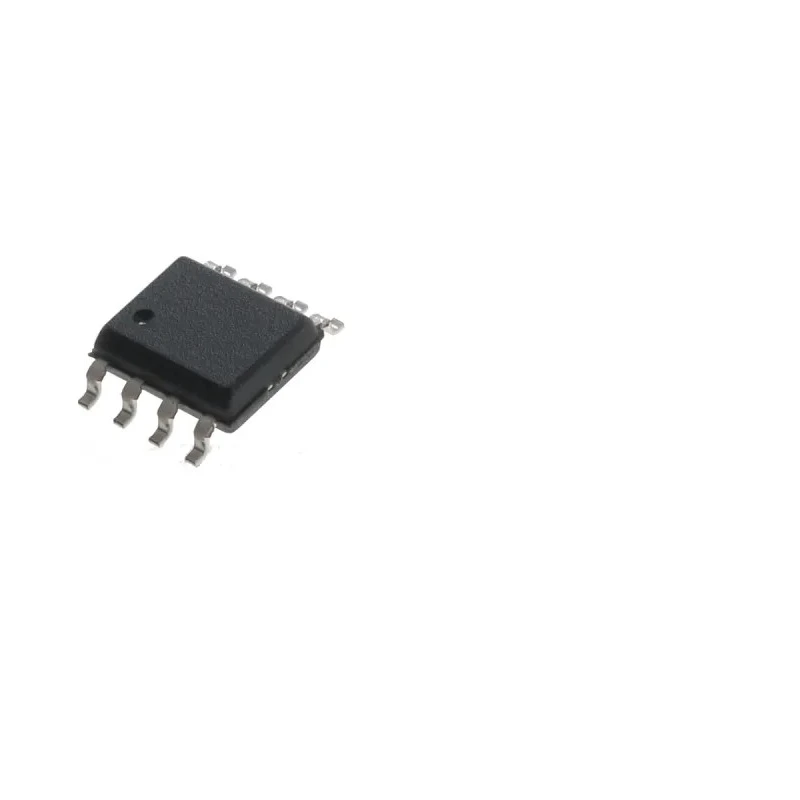

Nisshinbo Micro Devices Operational Amplifier 3 MHz 8-Pin DMP NJM4558M-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4558M-TE1 |
| Mount Type | Surface |
| Series | NJM4558 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 200 nA |
Key Features
- Gain Bandwidth Product of 3 MHz ensures high-frequency operation.
- Dual channel operational amplifier suitable for precise analog signal processing.
- Low input offset voltage of 6 millivolts for accurate amplification.
- Input bias current is 500 nanoamperes for minimal signal distortion.
- Operating temperature range from -40°C to 85°C supports harsh industrial environments.
- Slew rate of 1 volt per microsecond provides fast response time.
- Compact 8-pin DMP surface mount package for space-efficient PCB design.
- Complies with RoHS standards for environmental safety.
Product Description
Nisshinbo Micro Devices NJM4558M-TE1 Operational Amplifier is a high-performance dual operational amplifier characterized by a gain bandwidth product of 3 MHz and housed in an 8-pin DMP surface mount package. It is designed to offer excellent channel separation characteristics, making it ideal for measuring instruments and precision analog applications.
Featuring bipolar technology, this Operational Amplifier operates across a wide industrial temperature range from -40°C to +85°C, ensuring reliable performance even in demanding environments. The device exhibits a low input offset voltage of 6 millivolts and an input bias current of 500 nanoamperes, leading to highly accurate signal processing with minimal distortion. Its slew rate of 1 volt per microsecond supports fast and precise signal transitions.
The compact surface mount DMP package aids in optimized PCB space utilization and facilitates easy manufacturing. These attributes make the NJM4558M-TE1 suitable for industrial, laboratory, instrumentation, and electronic equipment applications.
This product complies with RoHS standards, confirming its environmentally friendly manufacturing. The dual channel design allows use in circuits requiring parallel or differential signal amplification.
High gain bandwidth of 3 MHz for reliable performance in analog signal conditioning. Wide operating temperature range from -40°C to +85°C suitable for industrial applications. Low input offset voltage enhances signal accuracy.
Minimal input bias current reduces error in sensitive circuits. Slew rate supports rapid signal changes and prevents distortion. Space-saving 8-pin DMP surface mount package facilitates compact circuit design. Bipolar technology ensures robust and stable operation.
RoHS compliant; environmentally safe product. Explore a wide range of Electronic Components and Amplifiers on EnvMart for diverse industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NJM4558M-TE1 is 3 MHz, ensuring high-frequency operation suitable for various applications.
This model operates over a temperature range from -40°C to +85°C, making it suitable for harsh industrial environments.
The input offset voltage of this operational amplifier is 6 millivolts, which contributes to accurate amplification.
The NJM4558M-TE1 features a dual channel design, allowing for parallel or differential signal amplification.
The slew rate of the NJM4558M-TE1 is 1 volt per microsecond, supporting fast response times in signal processing.
This operational amplifier is housed in a compact 8-pin DMP surface mount package, facilitating space-efficient PCB design.
The input bias current for this model is 500 nanoamperes, which helps minimize signal distortion.
Yes, the NJM4558M-TE1 complies with RoHS standards, confirming its environmentally friendly manufacturing.
The minimum supply voltage for this operational amplifier is -18V, allowing for versatile application in various circuits.
This operational amplifier is suitable for industrial, laboratory, instrumentation, and electronic equipment applications due to its performance characteristics.
The NJM4558M-TE1 utilizes bipolar technology, ensuring stable operation across its specified range.
The input offset current for this operational amplifier is 200 nanoamperes, contributing to its accuracy in sensitive circuits.
