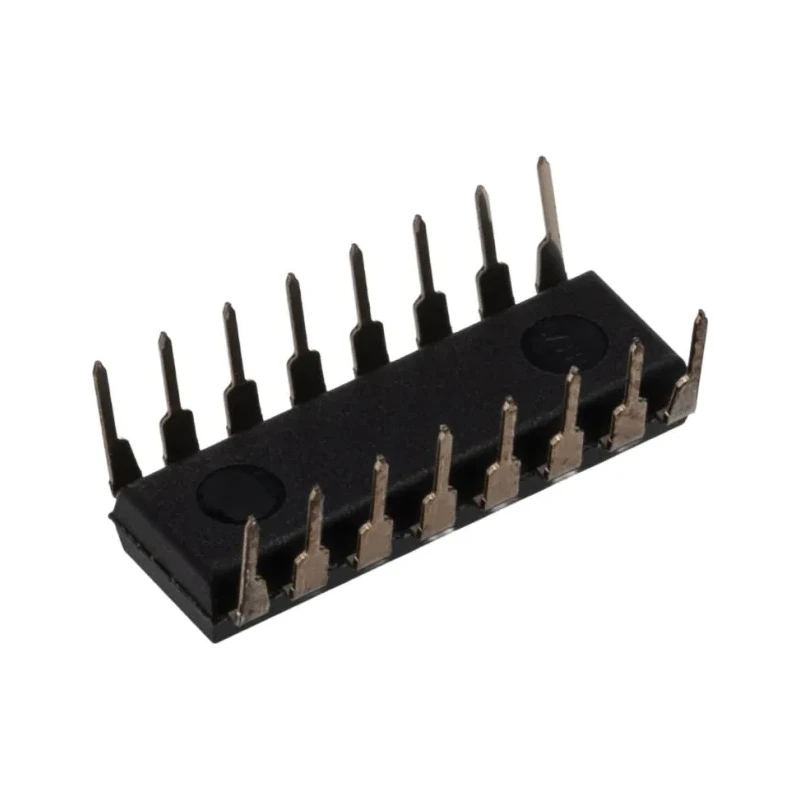

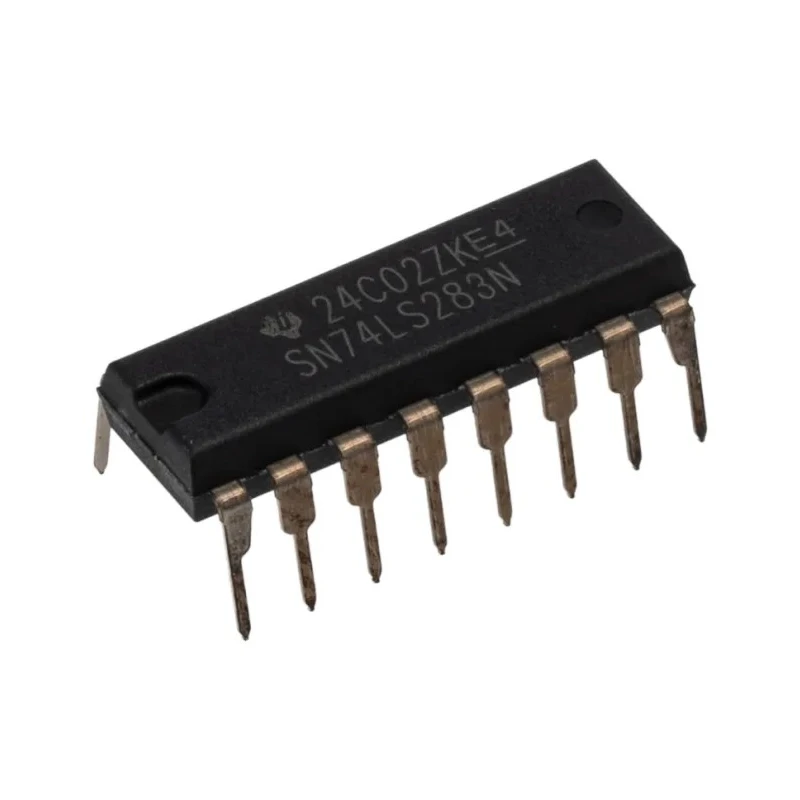

Texas Instruments Through Hole Binary Full Logic Adder LS 5.25V PDIP SN74LS283N

Texas Instruments SN74LS283N is a high-quality Through Hole Binary Full Logic Adder IC, housed in a PDIP package and operating at a typical supply voltage of 5.25V with a minimum of 4.75V. It belongs to the LS (Low Power Schottky) logic family, known for combining bipolar junction technology with Schottky diode clamps, resulting in faster switching speeds with reduced power consumption compared to traditional TTL devices.

This integrated circuit implements a single element full binary adder function, making it suitable for arithmetic logic operations in digital electronics. The device features a 16-pin through hole PDIP package which is widely compatible with standard PCB layouts and prototyping boards.

Electrical characteristics include a maximum high level output current of -0.4 mA, maximum low level output current of 8 mA, and operating temperature range from 0°C to 70°C, ensuring reliable performance in industrial and commercial electronic assemblies. The chip adheres to EN 61340-5-1 standards for electrostatic discharge protection, enhancing its robustness in sensitive applications.

Applications span across semiconductor circuits, logic IC configurations for digital computing, and embedded systems requiring precise and efficient logic addition functionality. The SN74LS283N is ideal for designers and engineers involved in electronics, industrial automation, and related sectors looking for dependable and low power Logic ICs.

Belongs to the LS logic family ensuring low power Schottky operation. Features a single element per chip providing full binary addition functionality. Supports a pin count of 16 in a through hole PDIP package. Maximum high level output current is -0.4 mA and maximum low level output current is 8 mA.

Supply voltage ranges from 4.75V to 5.25V for stable operation. Operates within a temperature range of 0°C to 70°C. Complies with EN 61340-5-1 standard for electrostatic discharge protection. Designed for use in electronic and semiconductor applications requiring precise logic addition.
