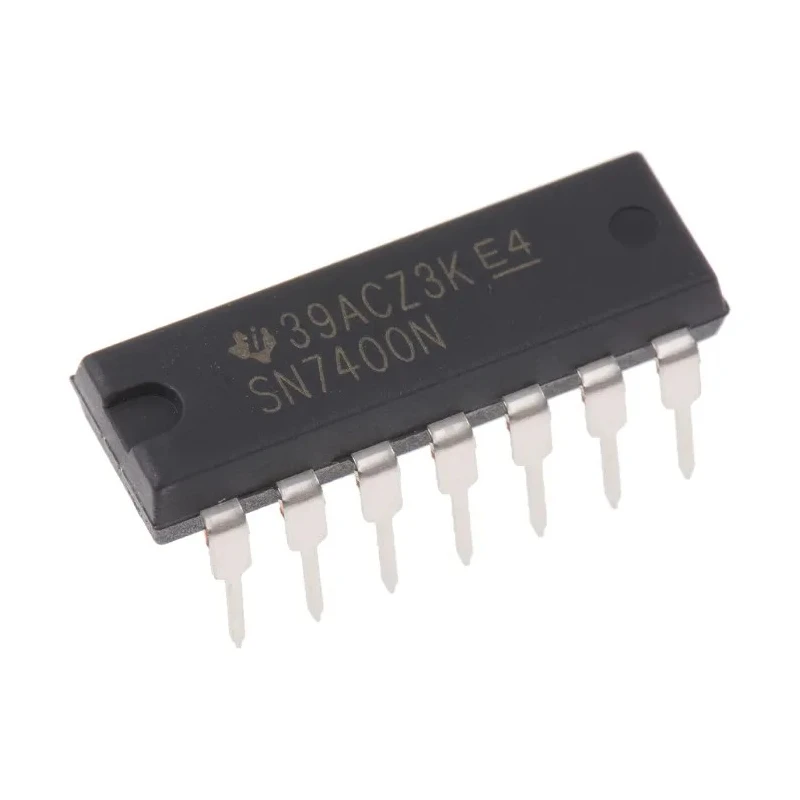

Texas Instruments 4 2-Input NAND Logic Gate 14-Pin PDIP SN7400N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN7400N |
| Mount Type | Through Hole |
| Input Type | TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | 74 |
| Logic Function | NAND |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 5ns |
| Maximum Low Level Output Current | 16mA |
| Number of Inputs per Gate | 2 |
Key Features
- Features four independent 2-input NAND gates in a single chip.
- Designed with a PDIP 14-pin package suitable for through-hole mounting.
- Operates over a voltage range from 4.75V to 5.25V for consistent performance.
- Maximum propagation delay is 5 nanoseconds, enabling fast logic operations.
- Supports operating temperatures from 0°C to 70°C for diverse environments.
- Utilizes standard 74 logic family TTL input type for compatibility.
- Maximum low level output current is 16mA while the maximum high level output current is -0.4mA.
- Product designed without Schmitt Trigger input functionality.
Product Description
Texas Instruments SN7400N is a 4 2-Input NAND Logic Gate device housed in a 14-Pin PDIP package providing standard TTL logic functionality. Operating between 4.75V and 5.25V supply voltage, it ensures reliable high-speed performance with a maximum propagation delay of 5 nanoseconds, suitable for various industrial and electronic applications requiring logical NAND operations.
The package type PDIP supports through-hole mounting, making integration with different PCB assemblies straightforward. This device operates across an ambient temperature range of 0°C to 70°C, ensuring usability in diverse environmental conditions. It belongs to the 74 logic family and accepts TTL input types, making it compatible with existing standard digital circuits.
Featuring four independent NAND gates, each with two inputs, it fulfills logic gate requirements in digital designs effectively. The device sustains a maximum low level output current of 16mA and maximum high level output current of -0.4mA, providing stable output levels.
The SN7400N does not include Schmitt Trigger input capabilities but caters well to standard logic gate functionalities within semiconductor equipment and industrial electronic systems.
Four 2-input NAND gates integrated into one package. 14-Pin PDIP package type with through-hole mount. TTL input logic using 74 logic family standards. Voltage supply range: 4.75V to 5.25V for stable operation. Max propagation delay: 5 nanoseconds enabling rapid logic processing.
Operating temperature range: 0°C to 70°C for flexible use. Output current handling: Max low level 16mA, max high level -0.4mA. No Schmitt Trigger input included.
This Logic Gate is widely used in industrial automation, electronic equipment design, and semiconductor circuits where reliable NAND logic functionality is critical. The Texas Instruments SN7400N assures quality performance consistent with the 74 series logic family.
Explore more electronic components and semiconductor devices within the EnvMart catalog for advanced digital logic solutions.
