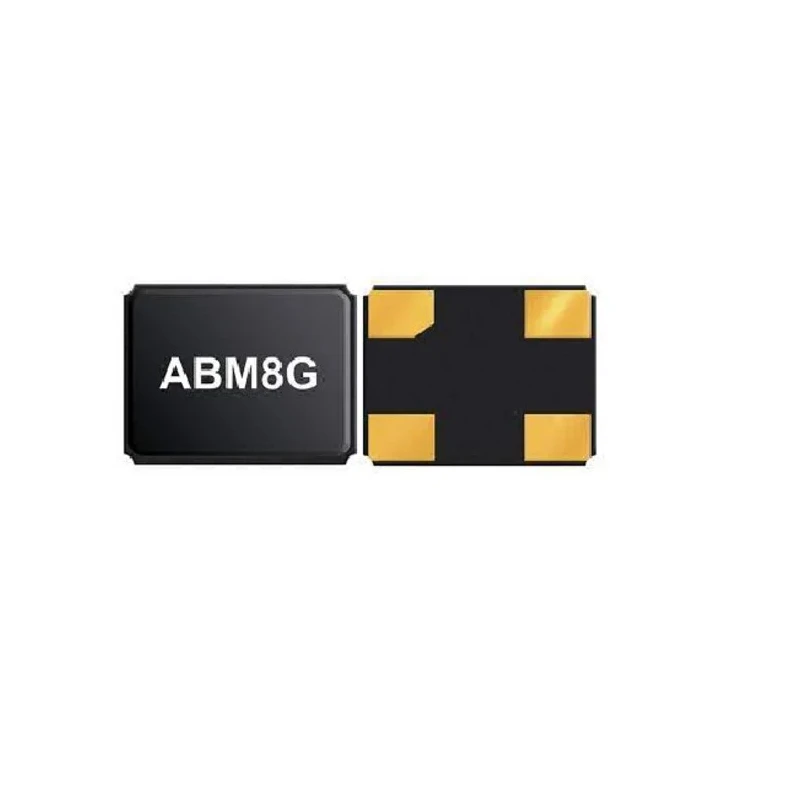

Abracon 27 MHz Crystal Surface Mount 4-Pin Tape & Reel Package ±50 ppm Frequency Tolerance ABM8G-27.000MHZ-18-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.2mm |
| Model | ABM8G-27.000MHZ-18-D2Y-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8G |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 27MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- The crystal provides a standard frequency of 27 MHz with ±50 ppm frequency tolerance.
- It has a load capacitance rating of 18 pF for stability in oscillatory circuits.
- The package dimensions are compact with length 3.2 mm, width 2.5 mm, and height 1 mm.
- The device operates reliably in temperatures from -10°C to +60°C.
- It features a series resistance of 60 Ω ensuring stable oscillation and performance.
- The glass sealed ceramic package guarantees durability and high temperature operation.
- This component is RoHS compliant and suitable for high density applications like modems and wireless devices.
- The ABM8G series is IR reflow capable for modern PCB assembly.
Product Description
The Abracon ABM8G-27.000MHZ-18-D2Y-T is a high precision 27 MHz crystal unit designed for surface mount technology (SMT) with a compact 4-pin ceramic glass sealed package. It ensures excellent frequency stability with ±50 ppm frequency tolerance and ±30 ppm frequency stability, making it ideal for precision timing applications.
Its compact dimensions of 3.2 mm length, 2.5 mm width, and 1 mm height allow for integration into space-constrained electronic circuits. The crystal features a load capacitance of 18 pF, which supports stable oscillator circuits in wireless communications, modems, PMCIA cards, and test equipment.
Operating temperature ranges from -10°C to 60°C, with a series resistance of 60 Ω, assuring robust performance even under varying environmental conditions. The glass sealed package affords high reliability and ensures the crystal withstands industrial processes such as IR reflow soldering.
This RoHS compliant crystal is suitable for applications in industrial, laboratory, communication, and manufacturing electronic equipment requiring precise frequency control. Its tape & reel packaging facilitates efficient automated mounting during PCB assembly processes.
The crystal provides a standard frequency of 27 MHz with ±50 ppm frequency tolerance. Load capacitance of 18 pF ensures stable oscillation. Compact surface mount 4-pin ceramic glass sealed package. Dimensions: 3.2 mm (L) x 2.5 mm (W) x 1 mm (H).
Operating temperature range from -10°C to 60°C. Series resistance of 60 Ω for reliable performance. RoHS compliant ensuring environmental safety. Suitable for high density applications including modems and communication devices.
IR reflow solder capable, compatible with modern PCB assembly processes.
This Abracon crystal unit is an ideal choice for electronics manufacturers requiring precise timing components compliant with industrial standards. Browse EnvMart for more Abracon products and top-quality Crystal Units.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal unit provides a standard frequency of 27 MHz.
This model has compact dimensions of 3.2 mm in length, 2.5 mm in width, and 1 mm in height.
The load capacitance rating is 18 pF, which supports stable oscillation in circuits.
It operates reliably in temperatures ranging from -10°C to +60°C.
The series resistance is 60 Ω, ensuring stable oscillation and performance.
Yes, this crystal unit is RoHS compliant, ensuring it meets environmental safety standards.
It comes in a surface mount 4-pin ceramic glass sealed package, suitable for high-density applications.
It is suitable for applications in wireless communications, modems, PMCIA cards, and test equipment.
The crystal is packaged in a tape & reel format, facilitating efficient automated mounting during PCB assembly.
The frequency tolerance is ±50 ppm, ensuring excellent frequency stability for precision timing applications.
This crystal unit belongs to the ABM8G series, which is designed for surface mount technology.
The country of origin for this crystal unit is India.
