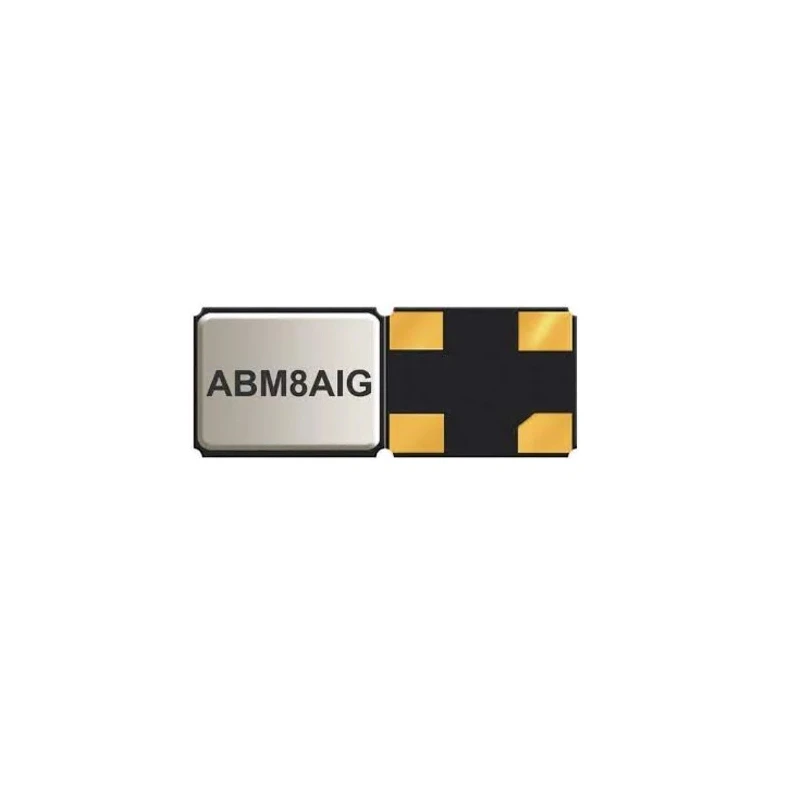

Abracon 14.7456 MHz Surface Mount Ceramic Package Crystal ABM8AIG-14.7456MHZ-12-2Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8AIG-14.7456MHZ-12-2Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8AIG |
| Maximum Operating Temperature | 85°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 14.7456MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- This crystal features a ±50 ppm frequency tolerance and stability.
- It comes in a hermetically sealed ceramic package designed for durability.
- The 4-pin surface mount device measures 3.2 mm length, 2.5 mm width, and 0.8 mm height.
- It supports a load capacitance of 12 pF with a series resistance of 100 Ω.
- Operating temperature ranges from -40°C to 85°C, with Automotive Grade 1 support up to +125°C.
- Complies with RoHS and AEC-Q200 automotive standards.
- Packaged in tape and reel for efficient assembly processes.
Product Description
Abracon ABM8AIG-14.7456MHZ-12-2Z-T3 is a high-performance 14.7456 MHz surface mount crystal housed in a hermetically sealed ceramic package. Designed for automotive and industrial grade applications, it provides reliable frequency control with a tolerance and stability of ±50 ppm.
The crystal features a 4-pin surface mount configuration with compact dimensions of 3.2 mm length, 2.5 mm width, and 0.8 mm height, suitable for space-constrained PCB layouts. It supports a load capacitance of 12 pF and a maximum series resistance of 100 Ω, ensuring stable oscillation characteristics.
Built for harsh environments, this component operates from -40°C to 85°C with automotive-grade robustness enabling operation up to +125°C. The device complies with RoHS directives and meets stringent AEC-Q200 standards, making it ideal for automotive infotainment, GPS navigation, advanced driver assistance systems (ADAS), and LiDAR technologies.
The ABM8AIG series is sealed hermetically within a ceramic package to protect from moisture and contaminants, extending service life and reliability. Packaging is provided in tape and reel format, facilitating automated pick-and-place manufacturing processes.
This crystal oscillator is suitable for industrial, automotive, and telecommunications uses where precise frequency control is critical. Its robust design and certification ensure dependable operation in safety-critical embedded systems.
This crystal features a ±50 ppm frequency tolerance and stability. It comes in a hermetically sealed ceramic package designed for durability. The 4-pin surface mount device measures 3.2 mm length, 2.5 mm width, and 0.8 mm height.
It supports a load capacitance of 12 pF with a series resistance of 100 Ω. Operating temperature ranges from -40°C to 85°C, with Automotive Grade 1 support up to +125°C. Complies with RoHS and AEC-Q200 automotive standards.
Packaged in tape and reel for efficient assembly processes. Explore EnvMart’s Electronics Components category for high-quality Abracon crystals and related components optimized for demanding applications.
Explore more products in our Crystal Unit category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a standard frequency of 14.7456 MHz.
It measures 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.
It supports a load capacitance of 12 pF.
The series resistance is 100 Ω.
It operates within a temperature range of -40°C to 85°C, with Automotive Grade 1 support up to +125°C.
It is packaged in tape and reel format for efficient assembly processes.
Yes, it complies with RoHS directives and meets AEC-Q200 automotive standards.
It comes in a hermetically sealed ceramic package designed for durability.
This model features a 4-pin surface mount configuration.
It is suitable for automotive infotainment, GPS navigation, advanced driver assistance systems (ADAS), and LiDAR technologies.
The country of origin for this crystal is India.
It features a frequency tolerance and stability of ±50 ppm.
