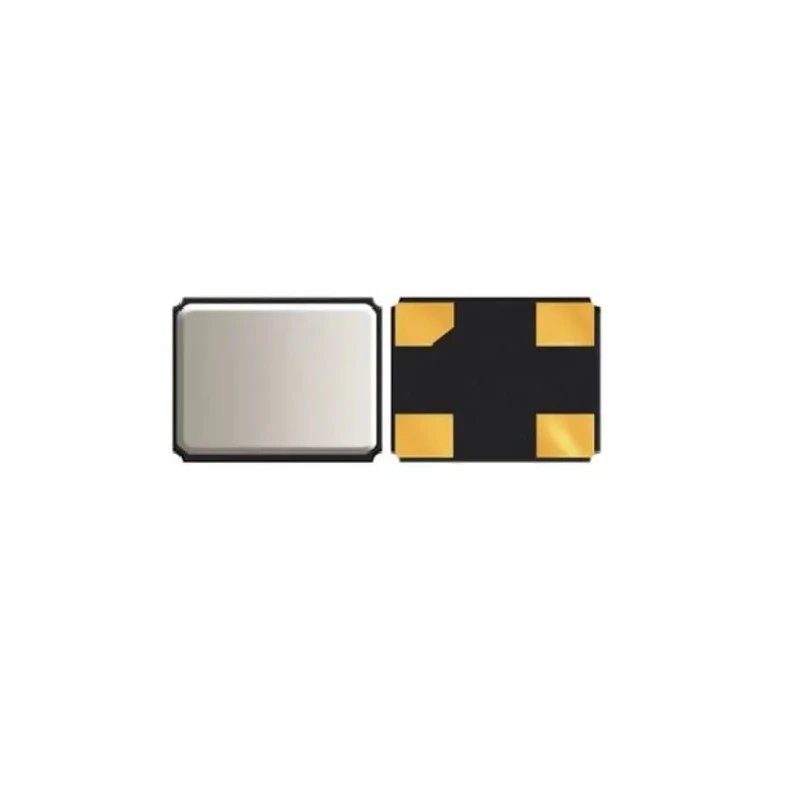

Abracon 32 MHz Surface Mount Crystal ±10 ppm Load Capacitance 8pF 4-Pin 0.5 mm Height ABM11W

Abracon ABM11W model 32 MHz Surface Mount Crystal Unit is engineered for compact and energy-efficient electronic circuits requiring precise frequency control. This crystal oscillator offers a standard frequency of 32 MHz with a tight frequency tolerance of ±10 ppm, ensuring reliable timing accuracy in demanding applications.

The device features a low profile with dimensions 2 mm length, 1.6 mm width, and an exceptionally small height of 0.5 mm. This makes it ideally suited for height-restricted PCB layouts commonly found in space-sensitive devices like Bluetooth and Bluetooth Low Energy (BLE) modules, wireless communication devices, and ultra-low power IoT applications.

With a load capacitance of 8 pF and series resistance of 50 Ω, the ABM11W crystal unit maintains stable oscillation and energy efficiency critical for wearables and sensor modules. It operates reliably over a wide temperature range from -40°C to 125°C, supporting industrial and commercial use cases requiring robust environmental performance.

The crystal comes in a tape and reel package format, facilitating automated assembly and high volume production. Its seam-sealed design enhances long-term stability and protects against environmental factors, making it suitable for industrial electronics, communication equipment, automotive electronics (non-automotive certified), and other precision instrumentation.

Standard frequency of 32 MHz suitable for timing applications. Surface mount type for easy PCB integration in modern electronics. Low frequency tolerance and stability at ±10 ppm ensures precision. Small dimensions of 2 mm length, 1.6 mm width, and 0.5 mm height fit height-constrained designs.

Optimized for Bluetooth, BLE, ultra-low power wearables, and IoT modules. Series resistance of 50Ω supports stable oscillation performance. Operating temperature range from -40°C to 125°C for reliability. Package supplied in tape and reel for efficient assembly.

Seam sealed construction ensures long-term reliability and durability. Compliant with RoHS environmental standards.

This crystal unit is ideal for applications in hardware design requiring high frequency accuracy and minimal space requirements including communication devices, wearable technology, IoT sensors, and embedded systems. Explore other crystal frequency components and related electronic parts in the Electronics Components category on EnvMart.
