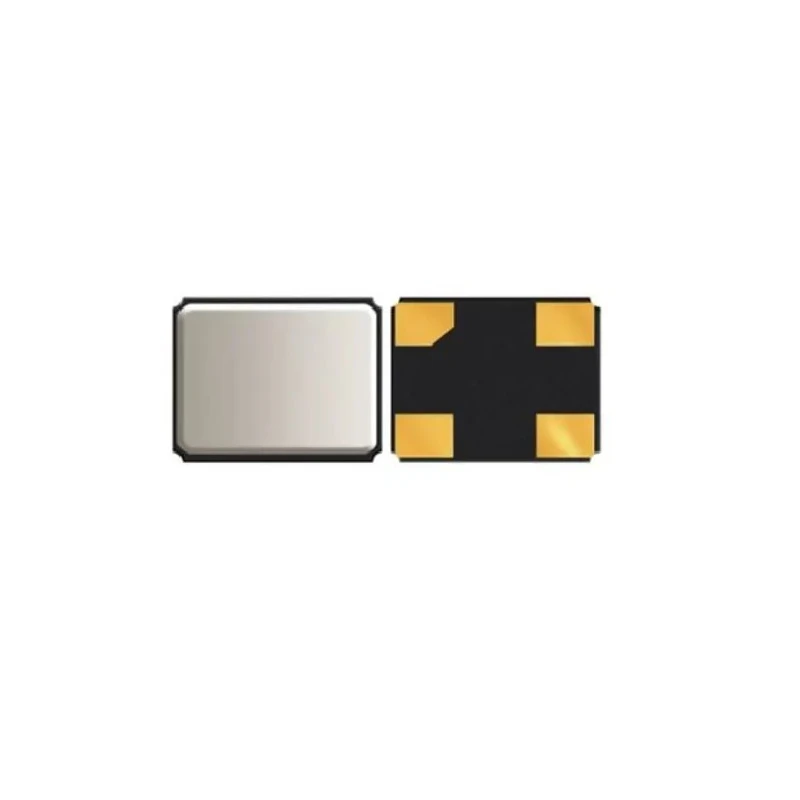

Abracon 25 MHz Crystal Surface Mount ±10 ppm Frequency Tolerance 4-Pin ABM11W Model

The Abracon ABM11W-25.0000MHZ-8-D1X-T3 crystal unit operates at a standard frequency of 25 MHz with a tight frequency tolerance of ±10 ppm, ideal for precision timing applications. The 4-pin surface mount configuration with a low profile height of 0.5 mm and compact footprint (2 mm length and 1.6 mm width) makes this crystal well suited for space-constrained PCB designs in modern electronics.

This crystal features an 8 pF load capacitance and a maximum series resistance of 100 Ω, ensuring optimized energy efficiency and signal integrity. It operates reliably across a broad temperature range from -40°C to 125°C, making it suitable for robust industrial and commercial applications.

Designed for use in Bluetooth low energy devices, wireless modules, ultra-low power microcontrollers, and IoT applications, the ABM11W series crystals offer a seam-sealed package to guarantee long-term reliability and stability. Their exceptionally low plating capacitance (~4 pF) and slim form factor support advanced wearables and compact electronic systems.

This product complies with RoHS environmental regulations, emphasizing its suitability for environmentally responsible manufacturing processes. Packaging as tape and reel supports automated assembly and high-volume production.

The Abracon ABM11W 25 MHz crystal presents an excellent solution for industrial electronics, telecommunications, consumer devices, and embedded systems requiring precise frequency control in a minimal footprint. Its robust design ensures consistent performance in various environmental conditions, helping engineers achieve efficient and reliable circuit operation.

Standard frequency of 25 MHz with ±10 ppm tolerance ensures precise timing. Compact surface mount ABM11W package with 0.5 mm height suits miniaturized designs. Low series resistance and optimized load capacitance enhance signal quality.

Wide operating temperature range (-40°C to 125°C) supports diverse applications. Sealed construction maximizes longevity and operational reliability. RoHS compliance meets modern environmental manufacturing standards. Ideal for Bluetooth, wireless modules, IoT devices, and wearables.

Packaged in tape and reel format for efficient manufacturing processes. Explore our extensive selection of Crystal Units and related electronic components at EnvMart to support your electronic design and production needs.
