| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C39-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 39V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 350Ω |
| Typical Voltage Temperature Coefficient | 33.4mV/K |

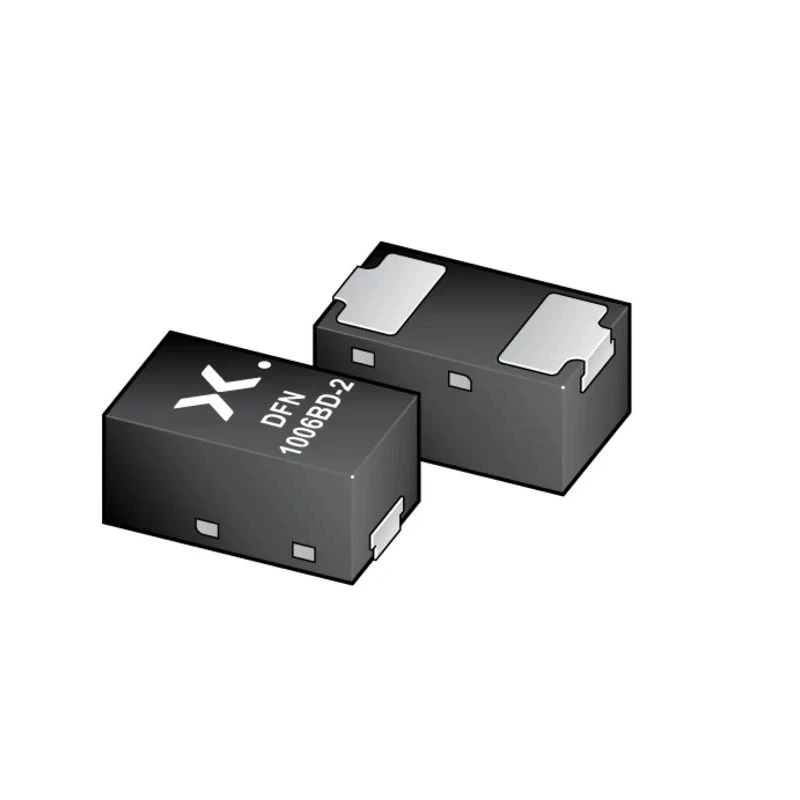

Nexperia BZX884S-C39-QYL is a general-purpose zener diode featuring a nominal voltage of 1.39 volts and power dissipation up to 365 milliwatts. Packaged in an ultra-small surface mount 2-pin DFN1006BD-2 plastic case, it provides precise voltage regulation for various industrial electronics and automotive circuits.
The diode is configured as a single element device with a nominal zener voltage of 39 volts and a tightly controlled ±2% tolerance. It includes a maximum zener impedance of 350 ohms and a maximum reverse leakage current of 50 nanoamperes, ensuring stable performance at a test current of 5 milliamperes.
With operating temperature range of -55°C to 150°C, this device is designed to offer reliable operation in harsh environments, meeting stringent AEC-Q101 automotive standards and RoHS compliance. The compact DFN1006BD-2 package (approximately 1 mm length and 0.47 mm height) supports space-sensitive applications including automotive electronics, power supply regulation, industrial automation, and consumer electronics.
The Nexperia BZX884S-C39-QYL diode is suited for applications requiring accurate voltage regulation and protection such as power management circuits, signal conditioning, and voltage reference circuits in industrial, automotive, and commercial electronics.
The diode features a single element configuration providing reliable voltage regulation. It operates with a nominal zener voltage of 39 V with ±2% tolerance for precision voltage control. Maximum power dissipation rating of 365 mW supports robust operation in compact form factor.
Surface mount package DFN1006BD-2 offers a low-profile design for automated PCB assembly. Test current is 5 mA, with low maximum reverse leakage current for efficient operation. Operating temperature range of -55°C to 150°C enables use in extreme conditions.
Meets automotive quality standard AEC-Q101 and RoHS environmental compliance.
This diode provides a reliable solution for voltage regulation and is ideal for use in automotive electronics, industrial controls, power supply regulation, and other semiconductor applications.
