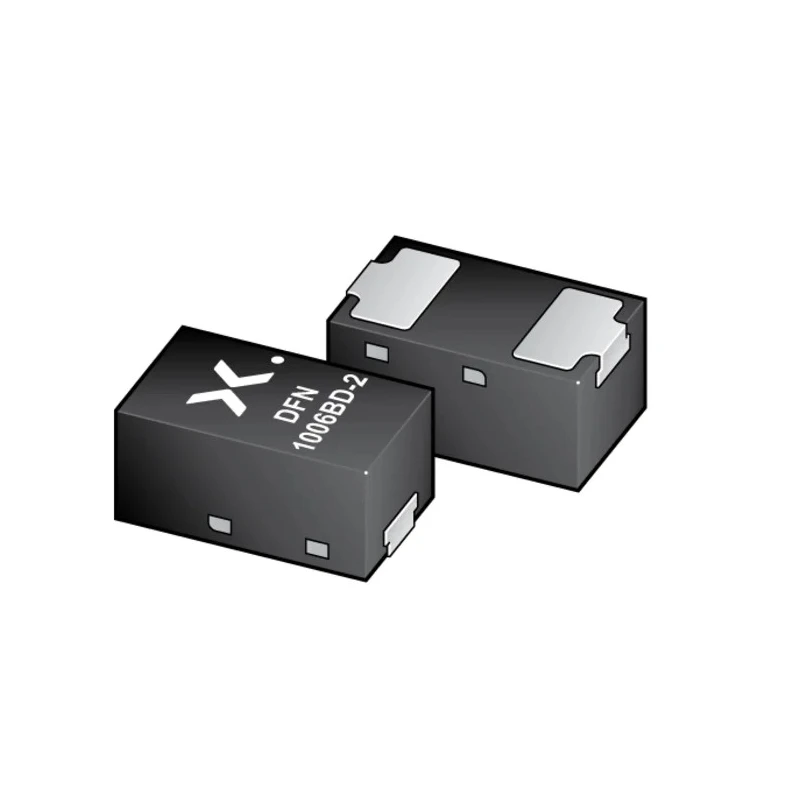

Nexperia 1.15 V General Purpose Zener Diode 365 mW Surface Mount 2-Pin DFN1006BD-2 BZX884S-C15-QYL

Nexperia BZX884S-C15-QYL is a general purpose zener diode designed as a single element device with a nominal zener voltage of 1.15 V and power dissipation capacity of 365 mW. It is housed in an ultra-small surface mount DFN1006BD-2 package with 2 pins, facilitating compact circuit designs and reliable electrical connections.

This zener diode supports a temperature operating range from -55°C to 150°C, making it suitable for use in a wide array of industrial, automotive, and electronic applications where voltage regulation is critical. The device features a maximum zener impedance of 200 Ω at a test current of 5 mA, delivering stable voltage output under varying load conditions.

Low maximum reverse leakage current of 50 nA ensures minimal leakage and improves circuit efficiency. The typical voltage temperature coefficient of 9.2 mV/K allows the diode to maintain stable voltage regulation despite temperature fluctuations.

The product complies with RoHS and AEC-Q101 automotive standards, affirming its quality and compatibility with automotive electronic systems. Its compact dimensions of 0.47 mm height and 1 mm length enable high-density PCB assembly, which is essential in modern electronics manufacturing.

This zener diode is extensively used in voltage stabilization, reference voltage circuits, and protection circuits in industrial electronics, laboratory equipment, automotive electronics, and consumer devices. With its reliable surface mount package and robust specifications, it meets the demands of manufacturing and engineering environments.

Offers a zener voltage tolerance of ±2% for precise voltage regulation. Designed for surface mount applications with a compact 2-pin DFN1006BD-2 package. Supports maximum power dissipation of 365 mW for reliable performance.

Operates within a temperature range of -55°C to 150°C suitable for harsh environments. Features a maximum zener impedance of 200 Ω at test current of 5 mA. Has a low maximum reverse leakage current of 50 nA enhancing circuit stability.

Typical voltage temperature coefficient of 9.2 mV/K ensures stable voltage regulation over temperature. Compliant with RoHS and AEC-Q101 automotive standards for quality assurance. Dimensions include a height of 0.47 mm and length of 1 mm, facilitating high-density PCB layouts.

Utilized commonly in electronic circuits requiring voltage stabilization and regulation. Explore more electronic components and semiconductor devices within EnvMart to find complementary and alternative products for your design and manufacturing needs.
