| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B9V1-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 9.1V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 100Ω |
| Typical Voltage Temperature Coefficient | 3.8mV/K |

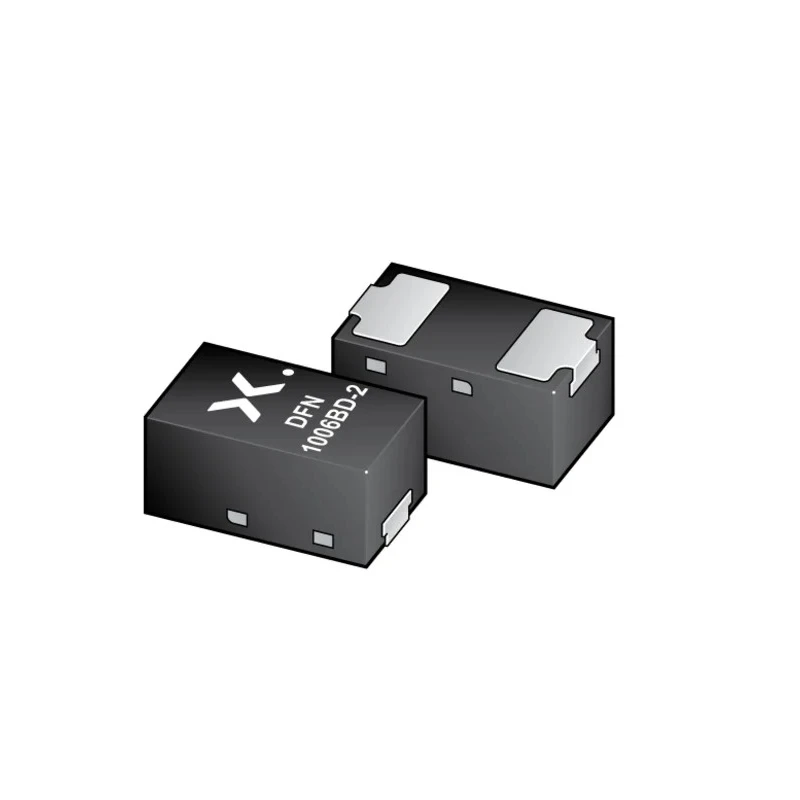

Nexperia BZX884S-B9V1-QYL general purpose zener diode is designed for precise voltage regulation with a nominal zener voltage of 9.1 V and maximum power dissipation of 365 mW. The device is packaged in a low-profile 2-pin DFN1006BD-2 surface mount package with a height of 0.47 mm and a length of 1 mm, allowing integration into compact printed circuit boards.
Featuring a single diode element, this zener diode exhibits a tight voltage tolerance of ±2%, ensuring stable operation in voltage reference and protection circuits. The maximum zener impedance of 100 ohms and low maximum reverse leakage current of 500 nA contribute to its high reliability in voltage regulation applications.
Tested at a test current of 5 mA, the diode also has a typical voltage temperature coefficient of 3.8 mV/K, suitable for automotive and industrial environments. It complies with RoHS and AEC-Q101 standards with qualification for automotive applications providing robust performance under extreme temperature conditions ranging from -55°C to 150°C.
The package includes side-wettable flanks improving solder joint reliability, specifically designed for surface mount automation. Such characteristics make the BZX884S-B9V1-QYL ideal for use in automotive electronics, industrial equipment, and general electronic circuit protection and voltage regulation tasks.
This product is a single element zener diode optimized for voltage regulation in surface mount applications. It supports a maximum power dissipation of 365 mW in a compact footprint for dense circuit boards. The device meets stringent automotive quality and environmental standards.
Its wide operating temperature range suits harsh industrial and automotive environments. Nexperia’s BZX884S-B9V1-QYL offers excellent solderability due to the side-wettable DFN package design. Explore more semiconductor components and automotive-grade diodes in the Nexperia series on EnvMart. Enhance your electronic designs with reliable voltage regulation solutions.
