| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B33-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 33V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 325Ω |
| Typical Voltage Temperature Coefficient | 27.4mV/K |

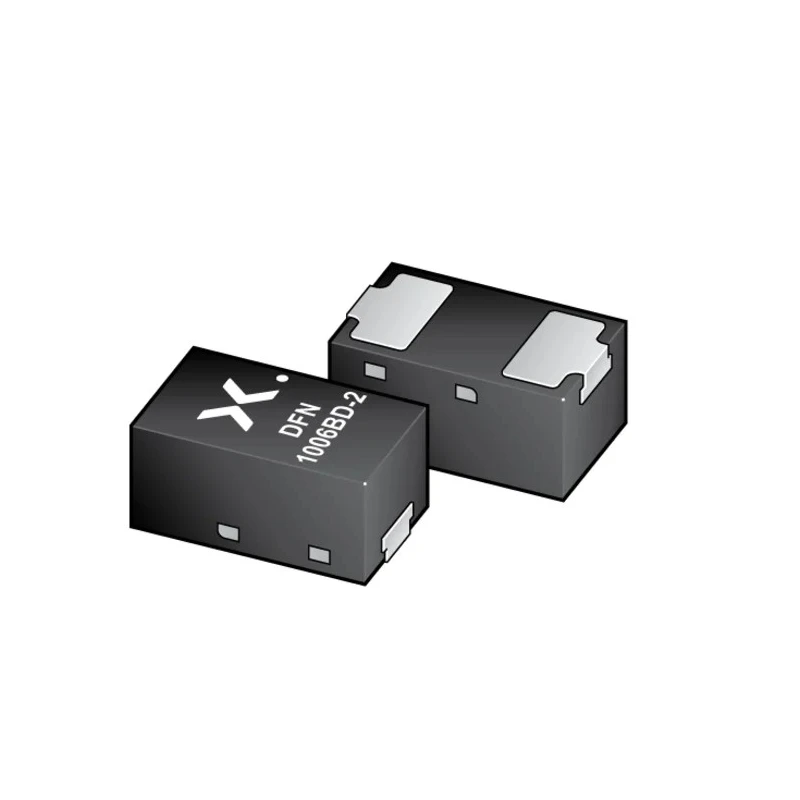

Nexperia BZX884S-B33-QYL is a 33 V general purpose Zener diode designed for surface mount applications. With a maximum power dissipation of 365 mW, this diode is housed in an ultra-small 2-pin DFN1006BD-2 package which is ideal for compact, automated assembly lines in electronics manufacturing.
The diode provides precise voltage regulation with a tight 2% voltage tolerance and operates reliably across a temperature range of -55°C to 150°C. It supports a test current of 5 mA and limits reverse leakage current to 50 nA, ensuring efficient and stable performance.
This component has been qualified to stringent AEC-Q101 automotive standard, making it suitable for demanding automotive electronics and other robust industrial environments. The device’s typical voltage temperature coefficient is 27.4 mV/K, supporting consistent voltage behavior over temperature fluctuations.
The single-element diode configuration and its surface mount form factor enable designers to create compact and high-density circuit boards. The DFN1006BD-2 package features side-wettable flanks for enhanced solder joint reliability in automated PCB assembly processes.
Applications include voltage regulation, protection circuits, and precision reference voltage sources in automotive, industrial, and consumer electronics sectors. The diode’s compliance with RoHS ensures environmentally responsible manufacturing and disposal.
The diode features a 2% voltage tolerance for precise regulation. Package type is DFN1006BD-2, suitable for space-constrained PCB layouts. Supports a test current of 5 mA with low maximum reverse leakage current of 50 nA.
Maximum operating temperature rating is 150°C, minimum -55°C for wide temperature applications. This device complies with AEC-Q101 automotive standards and RoHS directives. Typical voltage temperature coefficient is 27.4 mV/K ensuring stable performance over temperature changes.
Pin count is 2 with a single element configuration suitable for discrete component designs.
Explore more Zener diode solutions from Nexperia in the Electronics & Electricals category at EnvMart for high-quality semiconductor components tailored to industrial and automotive uses.
